| 品牌:松精 | 型号:SJ-18 | 加工定制:是 |
| 功能:充填、 灌装、 封口、 计量、 裹包 | 包装材料:塑料 | 适用对象:护发用品、 谷物 |
| 适用行业:餐饮、 食品、 医药、 日化、 化工 | 物料类型:颗粒 | 售后服务:保修一年,终生维护 |
| 电压:220V | 功率:3.2Kw | 包装膜宽:200mm |
| 制成袋尺寸:50-80mm | 包装速度:25-50袋/分钟 | 重量:500kg |
| 外形尺寸:900*610*1500mm | 包装类型:袋 | 自动化程度:全自动 |
| 规格:- |

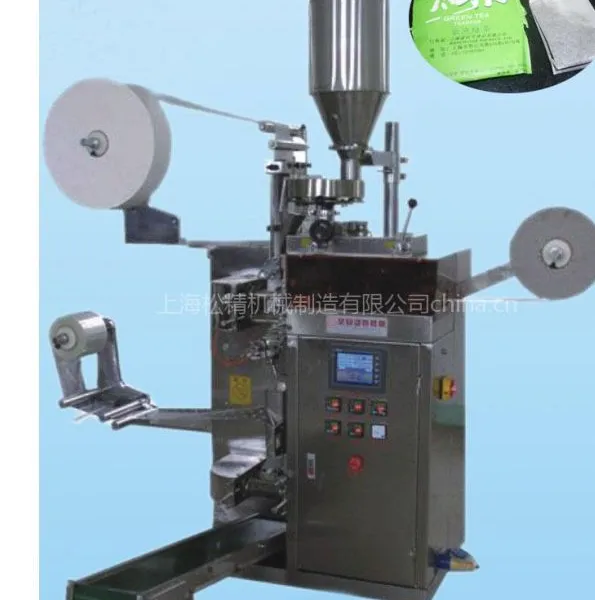

SJ-18 袋包茶内外袋包装机
SJ-18 Tea bag (inner and outer bag) Packing Machine
主要性能和结构特点:
本机是一种新型热封式,多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型,避免了人手与物料的直接接触,提高效率。内袋为过滤棉纸,可自动带线带标签,外袋为复合纸。其的好处在于:贴标和外袋均可采用光电定位,包装容量、内袋、外袋、标签等均可任意调整,可根据用户的不同需要来调整内外袋尺寸,以便达到最理想的包装效果,提高产品外观档次,使产品价值提升。
适用范围:
茶叶、咖啡、中草药、植物等过滤性物品。
Main function and characteristic:

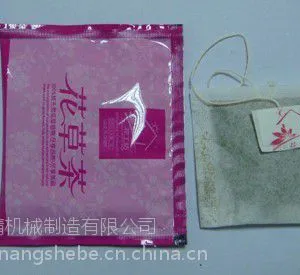

The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The big advantage is photoelectric location for tag and outer bag, free adjustment for packing content, length of inner bag and outer bag. The size of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect package effect, upgrade the appearance of product and add the value of product.
Application scope:
Be suitable for packing filterable material, such as tea leaf, coffee, Chinese traditional medicine and foliage etc.
性能参数Performance parameter:
| 3-15ml |
| 包装速度 Packing Speed |
| 30-50袋/分钟 bag/min |
| 标签尺寸 Tag Size |
| 长(L):20-40mm; 宽(W):35-55mm |
| 线 长 Length of Thread |
| 155mm |
| 内袋尺寸 Size of Inner Bag |
| 长(L):50-80mm; 宽(W):50-80mm |
| 外袋尺寸 Size of Outer Bag |
| 长(L):80-140mm; 宽(W):70-100mm |
| 电 源 Power |
| 220V, 60Hz / 110V, 50HZ, 3.5KW |
| 外型尺寸 Outline Dimension |
| (L*W*H)900*610*1500mm |
| 整机重量 Machine Weight |
| 500Kg |
