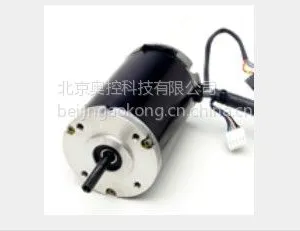

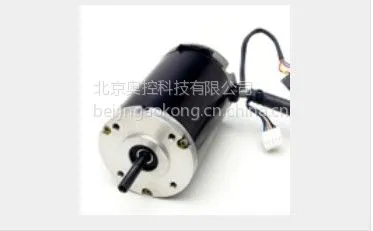

AMETEK 的 Pittman直流无刷电机共有19款产品线。电机功率从2.5瓦到1086瓦，连续扭矩从0.42Ncm到587Ncm。电机有着寿命长，耐用，输出稳定，抖动小和发热低等特点。Pittman直流无刷电机可以根据客户要求提供减速箱，光学编码器，刹车，输出轴设计等各种客户定制化方案。

电机外径         输入电压            转速范围                  额定扭矩
                       (DC)                (RPM)                     (Ncm)
43mm           12, 24, 36         0 - 15,000             1.8 - 7.8
64mm           12, 24, 36         0 - 10,000             9.9 - 48.7
76mm           12, 24               0 - 4,930               13.9 - 38.8
90mm           12, 24, 36         0 - 4,300               15.5 - 93.2
98mm           12, 24, 74         0 - 4,500               19.8 - 70.6
133mm         12, 24, 74         0 - 4,055               135.6- 587.4
