| 加工定制:否 | 类型:便携式激光测距仪 | 品牌:德国ZEISS |
| 型号:ZEISS Victory 8x26 T* PRF | 测量范围(m):1200 | 测量精度(mm):1 |
| 适用范围:室外、野外测距 |

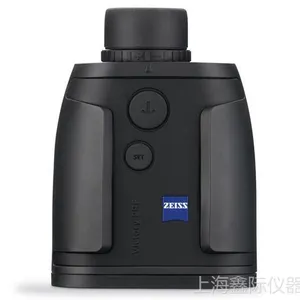

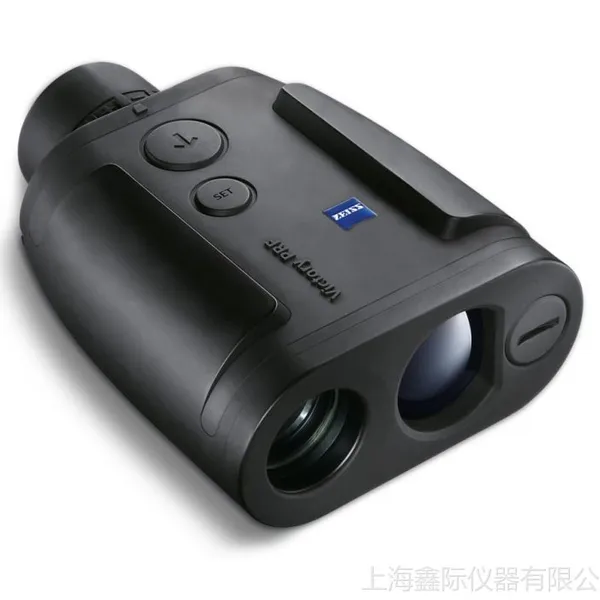

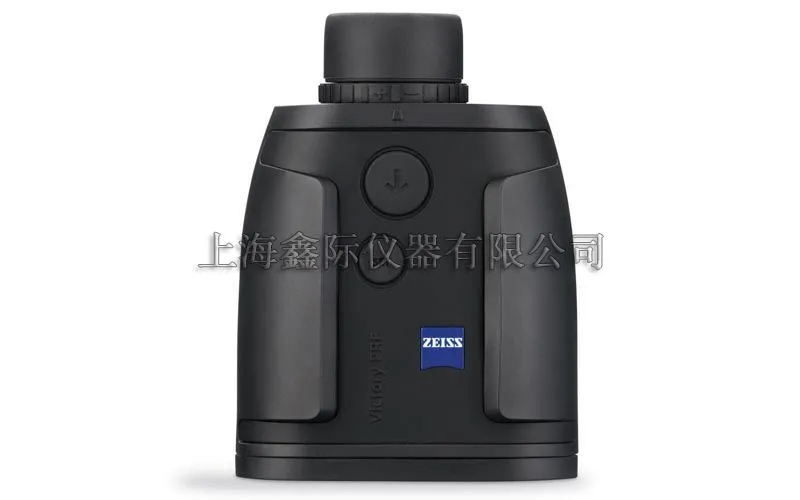

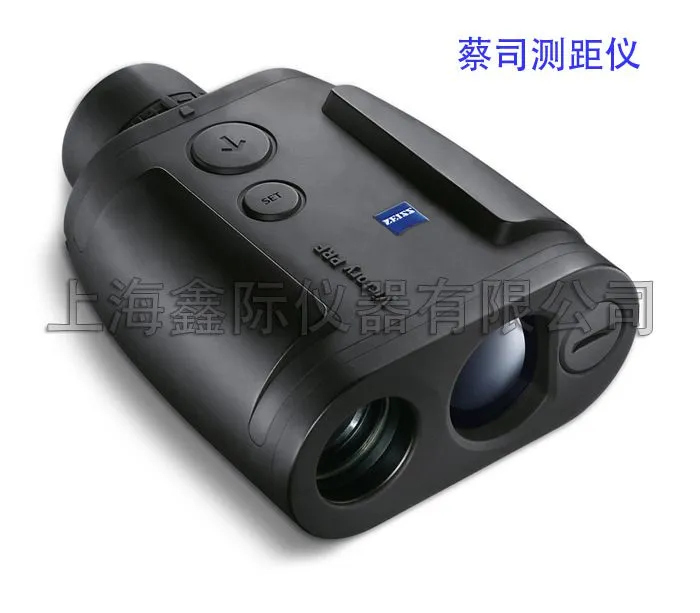

德国ZEISS蔡司胜利女神Victory Mono 8X26PRF测距望远镜
正品行货
德国ZEISS Victory 8x26 T* PRF是市售最的轻巧型激光测距望远镜,最远可测距离1200公尺,***度高,误差小于正负1M,适合野生动物观察研究、高尔夫球运动、工程测量等各种测距用途。气密防水结构可达水下1M,各种天候皆可适用,***T*多层镀膜视野清晰明亮,配合发光LED照明式显示屏更适合夜间使用,蔡司镜片光学质量优异,光学机械与电子组件皆享有德国原厂2年保固,ZEISS Victory 8x26 T* PRF无疑又在激光测距领域树立了***新***。其他型号有8*45RF和10*45RF。
产品特色 市售最轻巧型测距望远镜 最远可测距离1200公尺 T*多层镀膜视野清晰明亮,气密防水结构可达水下1M 发光LED照明式显示屏,自动控制亮度更适合夜间使用 One-touch加大型按键,带快速释放触发,更快速更容易操作 ***度高,误差小于正负1M,旋转式眼罩与高眼点设计,口袋型设计轻巧好携带 德国ZEISS蔡司胜利女神Victory Mono8X26PRF测距望远镜
1.放大倍率:8倍。 2.有效物镜口径:26mm。 |
3.镀膜:T*防反射多层莲花镀膜。 4.在1000m之视野:115m。 |
5.瞳径:2.5mm。 6.调焦范围:+14/-8dpt。 |
7.黄昏系数:12.65。 8.亮度:6.25。 |
9.***可视范围:3M。 10.尺寸:L102*ø32mm。 |
| 11.重量:77g。 |
| 12.***期:10年。 |
13.测距方式:一级激光。 14. 测距范围:10-1100米。 |
15.测量精度:1米。 16. 测量时间:1秒。 |
17.激光波长:904nm。 18. 电池:3V CR2锂电池1个。 |
| 19.电池寿命:常温下测量次数大于10000次。 |
Victory 8x26 T* PRF
The compact laser rangefinder with its 8x magnification and 26 mm lens produces a bright image even at long distances. It is a solid companion, despite its light weight. Its lightning-fast laser rangefinding technology and integrated ballistic information system BIS® make it an invaluable aid in unfamiliar territory and for long-range shooting. Anyone who already owns a high-performance set of binoculars such as the VICTORY HT or Victory FL yet wishes to have the benefits of binoculars with an integrated rangefinder will find the monocular Victory 8x26 T* PRF the perfect addition.
Technical data
| Magnification | 8 x |
| Effective Lens Diameter | 26 mm |
| Exit Pupil Diameter | 3.25 mm |
| Twilight Factors | 14.4 |
| Field of View at 1000m | 110 m |
| Subjective Viewing Angle | ° |
| Close Focus | m |
| Diopter Adjustment Range | 3.5/-3.5dpt |
| Lens Type | Achromat (2 Lenses) |
| PrismSystem | |
| Water Resistance | 100 mbar |
| Functional Temperature in °C | °C/ °C |
| Height | 130 mm |
| Width | 98 mm |
| Weight in Use | 310 g |
