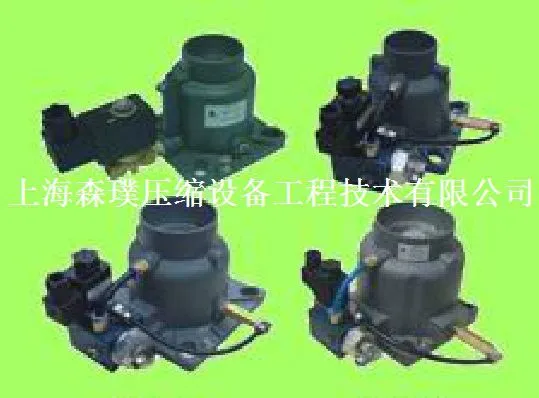

HOERBIGER贺尔碧格螺杆空压机进气阀型号：HDKG40，HDKG50，HDKG65，HDKG85,HDKG120，HDKG160

欢迎各界同仁来人来电咨询、洽谈!详细资料至公司索取。我们将以***的产品，***的价格，优质的服务与您密切合作，共谋发展！

      企业***：      国内热线：400-6969-728       技术咨询：021-51602627       51602681

     【进口压缩机国际亚洲配送中心】【中国空压机备品备件营销中心】

螺杆空压机进气阀工作原理
    对于空压机电磁阀的一个总的规律就是：电磁阀得电加载，失电卸载。有时候我们的设备有在卸载的情况下出现电流稍微有点大，22KW的卸载时电流有31A。初步怀疑进气阀没关严，因为在没用气的时候，机器卸载后，压力还会慢慢上升，有时会高压报警停机！而且在停机后，机器内部还有一些残余压力无法卸放（在6公斤左右），导致再次启动时，主机过载。
    当空压机进气阀属于常开式进气阀,压缩机在没有加载时电磁阀是打开的,压缩机加载后电磁阀是关闭的.当电磁阀打开时,会有一路气体去关闭进气阀,但是不能完全关死,还要保留进气空间,以维持压缩机润滑所需要的最小压力,这个压力一般在1.5bar;电磁阀关闭后,压缩机会进入正常工作状态,直至到设定的工作压力,这取决于用户.该进气阀有两路管,一路放空;一路放掉阀中余气,***压缩机正常加载。卸载时,电流过大,说明罐压较高,进气阀开度梢大,请调整放空螺钉,***罐压不会太高.
    空压机停机后,罐压一般在60秒左右就可以完全排空,即压力为0.而你的罐压还有6bar,说明进气阀放空管路存在问题:1.可能是管路直径过细;2.组合阀孔口过小或是否杂物堵塞。
    卸载后,压力会有轻微的来回升高,但这个只是平衡需要,而且时间很短.不会上升到高压停机.高压停机应该是空压机电磁阀存在问题,请检查它是否完好,是否可以正常工作.不论什么样的进气阀,都应当在卸载时维持罐压在1.0~2.0BAR之间.过高对于空压机的能量是很大的浪费。

HOERBIGER贺尔碧格螺杆空压机进气阀适应各品牌空压机进气阀

HOERBIGER He Erbi screw air compressor inlet valve type: HDKG40, HDKG50, HDKG65, HDKG85, HDKG120, HDKG160

Welcome colleagues from all walks of life come to inquire, negotiate! Detailed information to company to claim. We will be first-class products, low prices, high quality service in close cooperation with you and seek common development!

Corporate website: China hotline: 400-6969-728 technical consultation: 021-51602627    51602681

【 imported compressor international Asia distribution center 】 【 Chinese air compressor spare parts marketing center】

Screw air compressor working principle of the intake valve

For air compressor mechanical and magnetic valve is a general rule: the solenoid valve electricity load, loss of electric discharge. Sometimes we have the equipment under the condition of the discharge current slightly big, 22 kw current 31 a when unloading. Preliminary doubt inlet valve didn't close tightly, because at the time of no gas, machine after unloading, the pressure will rise slowly, and sometimes high pressure alarm stop! And after the outage, the machine internal residual stress and some can't discharge (around 6 kg), lead to start again, host overload.

Sky compressor inlet valve belongs to often open inlet valve, compressor without loading electromagnetic valve is opened, the compressor after loading the solenoid valve is closed. When the solenoid valve opens, there will be gas all the way to close the inlet valve, but can't completely shut up, and keep intake space, in order to maintain the compressor lubrication required minimum pressure, the pressure is in commonly 1.5 bar; Solenoid valve is turned off, the normal work of the compressor enters the state, until to set the working pressure, depending on the user. The inlet valve tube have two road, empty all the way; Residual air in drain valve all the way to ensure that the normal load compressor. When unloading, current is too large, tank pressure is higher, the intake valve opening tip is big, please adjust the vent screw, ensure that tank pressure does not too high.

Air compressor after downtime, tank pressure generally within 60 seconds can be completely emptying, the pressure of 0. And you the tank pressure of 6 bar, shows that inlet valve vent piping problems: (1) may be pipe diameter carefully; 2. The combination valve orifice is too small or if sundry jam.

After unloading, the pressure may have a slight rise, back and forth with this just need balance, but time is short. Don't rise to high downtime. High downtime should be air compressor mechanical and magnetic valve there is a problem, please check if it is in good condition, whether can work normal. No matter what kind of intake valve, shall be maintained when unloading tank pressure is between 1.0 ~ 2.0 BAR. Too much for the air compressor is a great waste of energy.

HOERBIGER He Erbi, screw air compressor inlet valve adapt each brand air compressor inlet valve
