| 品牌:日本阀天 | 材质:铸铁 | 型号:RD-14H |
| 连接形式:法兰 | 适用介质:油品 | 3C阀门类别:工业 |
| 公称通径:20-150 | 结构形式:活塞式 | 压力环境:低压 |
| 工作温度:高温 | 标准:日标 | 流动方向:单向 |
| 驱动方式:脉冲 | 零部件及配件:阀体 | 形态:膨胀式 |
| 类型(通道位置):直通式 | 规格:20-150 |

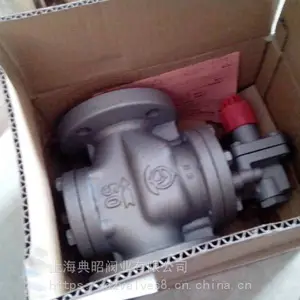

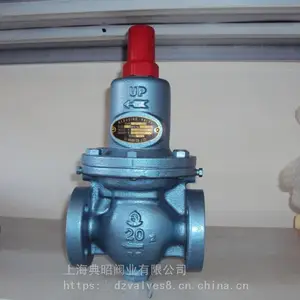

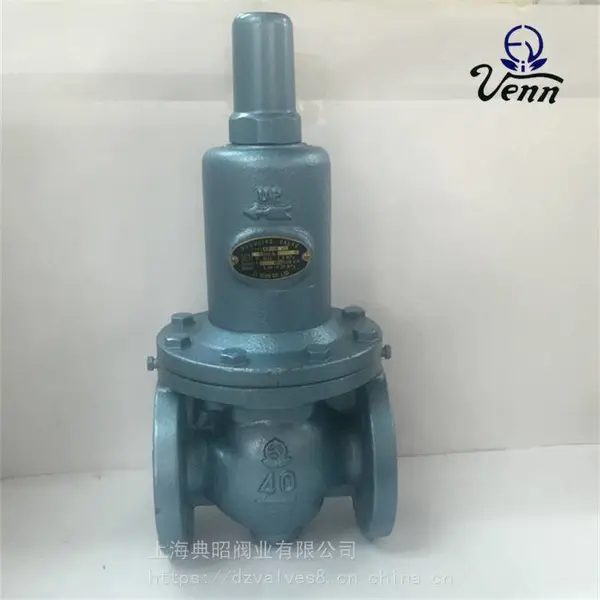

日本阀天RD-14H减压阀
| 日本阀天RD-14H减压阀详细描述:RD-14H valve is suitable for: oil, pressure 1.0Mpa following caliber range: 20-150mm Suitable temperature: 5-90 ℃ Body material: cast iron valves day Japan RD-14H is by adjusting the valve, the inlet pressure is reduced to the outlet pressure of a need, and rely on the energy of the medium itself, so that automatically maintain a stable outlet pressure valve.RD-14H减压阀适用于:压力1.0Mpa以下的油品,口径范围:20-150mm 适用温度:5-90℃ 阀体材质为:铸铁 日本阀天RD-14H减压阀是通过调节,将进口压力减至某一需要的出口压力,并依靠介质本身的能量,使出口压力自动保持稳定的阀门。Operation:1, closed gate valve before the open gate valve after low pressure downstream manufacturing environment;2, the adjusting screw counterclockwise rotation to the uppermost position (relative to the minimum outlet pressure), and then close the valve after the valve;3. Slowly open the gate valve to fully open before;4. Slowly turn adjustment screw clockwise, the pressure is adjusted to the desired outlet pressure (gauge pressure in the valve prevail); adjusted, the lockNut, open the valve gate valve;5, such as export when adjusting the pressure higher than the set pressure, must start from the first step to re-adjust, which can only tune from low to high pressure.日本阀天RD-14H减压阀操作方式:1、关闭减压阀前的闸阀,开启减压阀后的闸阀,制造下游低压环境;2、将调节螺钉按逆时针旋转至最上位置(相对***出口压力),然后关闭减压阀后闸阀;3、慢慢开启减压阀前的闸阀至全开;4、顺时针慢慢旋转调节螺钉,将出口压力调至所需要的压力(以阀后表压为准);调整好后,将锁紧螺母锁紧,打开减压阀后闸阀;5、如在调整时出口压力高于设定压力,须从步开始重新调整,即只能从低压向高压调。 |
