钦典推荐月光白茶包装机/苦荞茶、灵芝舒心茶自动茶叶包装机

一、适用于：

茶叶、咖啡、中草药、植物等过滤性物品

二、特点：

本机是一种新型热封式，多功能全自动袋泡茶饮品包装设备。该机的主要特点是内外袋一次成型，避免了人手与物料的直接接触，提高效率。内袋为过滤棉纸，可自动带线带标签，外袋为复合纸。其的好处在于：贴标和外袋均可采用光电定位，包装容量、内袋、外袋、标签等均可任意调整，可根据用户的不同需要来调整内外袋尺寸，以便达到最理想的包装效果，提高产品外观档次，使产品价值提升。
三、包装材料：过滤绵纸、棉线、标签纸、铝箔纸
包装速度:30-60袋/分钟
标签尺寸:宽：35-55mm长：20-40mm
线长: 155mm
内袋:宽：50-80mm长：50-80mm
外袋:宽：70-100mm长：80-140mm
电源: 220V 60Hz110V 50HZ 3.5KW
外型尺寸:(L×W×H)900×610×1500mm
整机重量: 500Kg

QD-18-I I Teabag Inner and outer bag Packing Machine

Functional Features :

The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.

Application:

Be suitable for the dual bag packing of small grain-like materials, such as tea leaf, coffee, Chinese traditional medicine and healthy tea etc.

Pack materials:

paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea paper,thred,tag

Specification：

QD-18-I I Teabag Inner and outer bag Packing Machine-ppph适(itr0llb.b，-ui

 io品au度0e成hFoogotni/e

Functional Features :mn0T内-epittaIifHtrgr

The machine is a latest heat sealing packing machine which has automatic multi-functions. The main feature of this machine is one-time packing for the inner and outer bag, avoiding hands directly contacting with stuff and improving the efficiency. The inner bag is made of filterable cotton paper which can be automatically packed with toting thread and label. The outer bag is composite paper. The advantage is photoelectric location for the tag and outer bag, adjustment to the need of the content, length of inner bag and outer bag. The dimension of inner and outer bag can be adjusted according to the different requirements from customer to achieve the perfect shape, upgrade the appearance of product and add the value of product.0ue品sed，ik任lzet长/中ia

                                                          ojO6aotoy8se袋定iee袋nr

Application:y-iTdembltoh主cWopfao

Be suitable for the dual bag packing of small grain-like materials, such as tea leaf, coffee, Chinese traditional medicine and healthy tea etc.均2oaaib55不5/uila0ghl

Pack materials:hltee0dt袋pncbuntym,签

paper/plastic,plastic/plastic,plastic/aluminum/plastic,paper/aluminum/plastic,tea paper,thred,tag00nnnrrrn0oDWaaa提d，,

Specification：cicng合2il容iscs(egli户

 omf尺aevalaaianmpg11o

供应药用茶自动袋泡茶包装机|韩国***参茶叶全自动包装机/包装机QD-18-I型袋中袋包装机|袋中袋茶叶包装机

适用范围：

    本机器适用于种子、医药、保健品、茶叶等行业，蔬菜种子、中药饮片、保健茶袋泡茶等物料的自动包装。本机器可先将物料装入内袋，再把内袋装入外袋，实现内外袋同时包装。内袋为三封袋型，可用过滤绵纸或其它可热封材料：外袋为四边封袋型。具有双自由度横向纠偏装置及纵向智能光电商标定位系统，连续商标、定位商标自由切换。可自动完成制袋、计量、填充、分切、封合、打码、计数（并可预选计数）、成品输出。

性能参数：

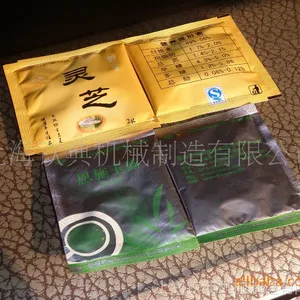

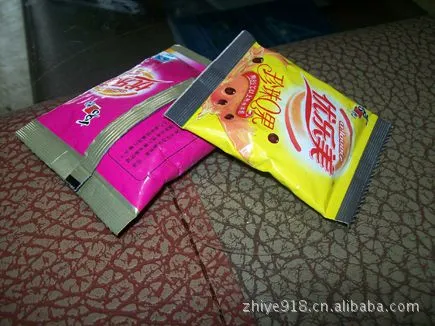

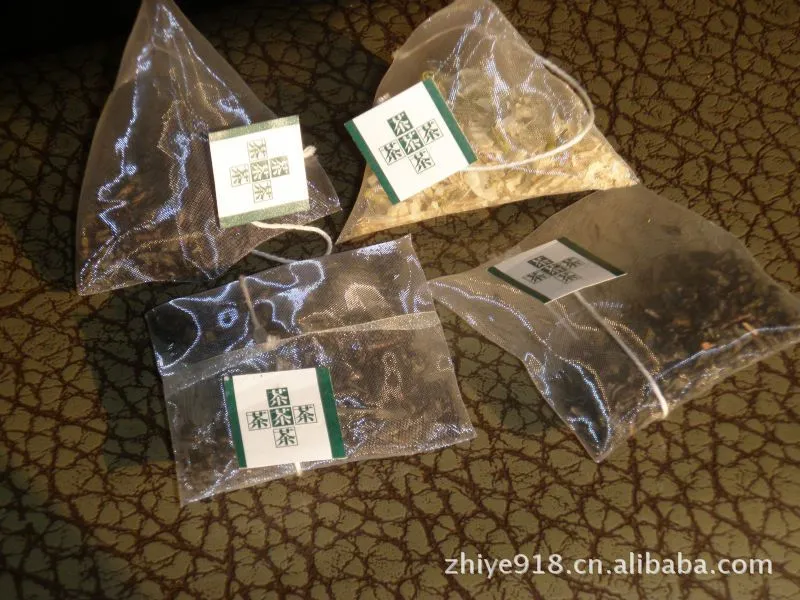

 内外袋图片，带线带标图片，内袋图片：

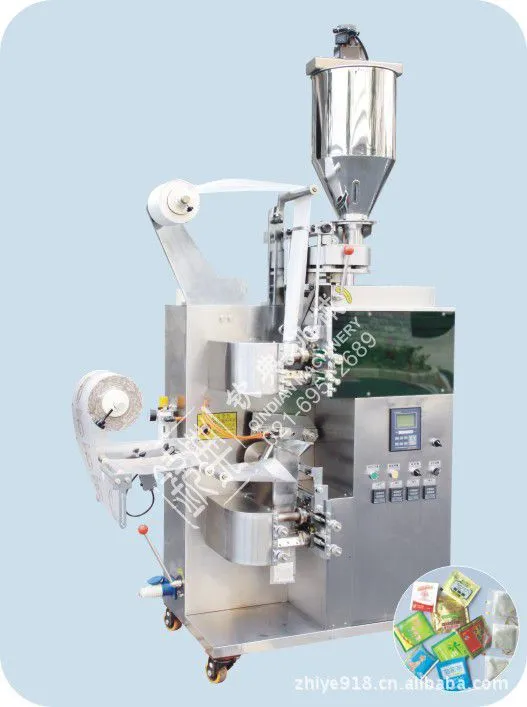

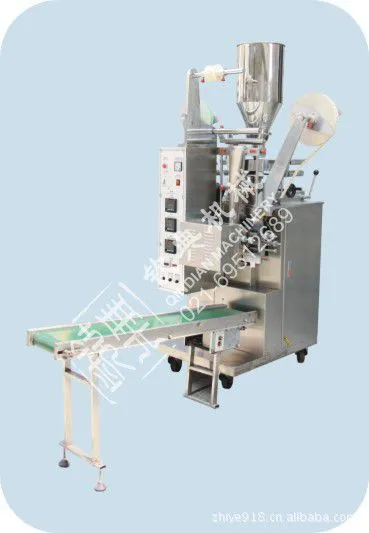

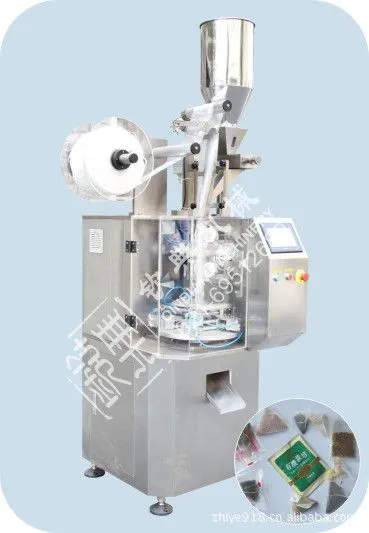

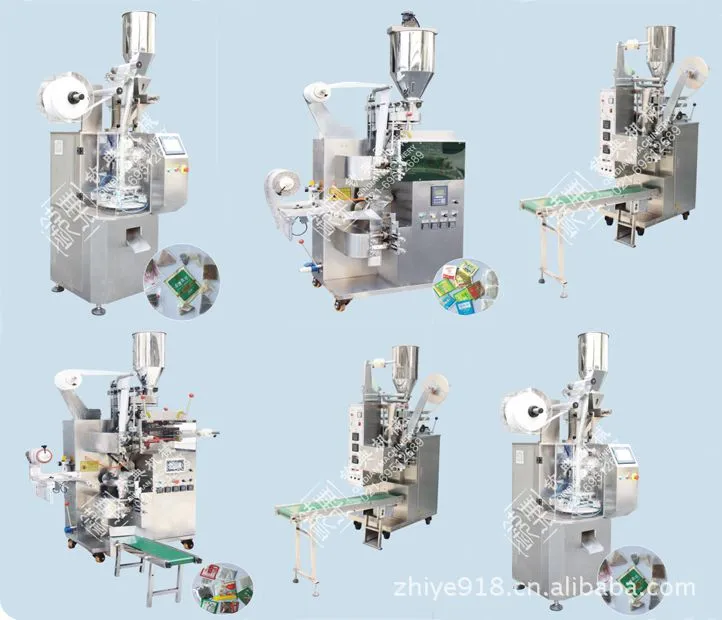

机器图片：

易损件：

加热管，刀片，感温线

配送一套工具详见工具箱。

路线一：上海火车站：地铁4号线→曹杨路→地铁11号线→南翔镇站
路线二：北区汽车站：北嘉线→大桥头（下车往嘉美路方向走500m南翔高科技产业园 即到）
路线三：上海火车站：822路公交车(沪唐专线)→大桥头（下车往嘉美路方向走500m南翔高科技产业园 即到）
开车路线：中环、内环、外环(A8、A9、A11、A20、A30) 转A12(沪嘉高速) 南翔出口→沪宜公路→沪宜公路嘉美路

钦典售后服务：

1．我方负责上门安装调试及操作人员的培训；
2．培训项目：A机械使用标准 B维修与保养；
3．以上设备按机械使用标准操作免费保修一年（因本身配件质量问题我方负责免费维修；人为损坏由客户负责所有费用，我方帮助维修）；
4．保修期过后我方提供终生有偿维修及免费技术咨询；
5．我方应在收到甲方维修机器通知起24小时内上门维修，排除故障，***机器正常工：

耗材：墨轮，包装膜，字粒

易损件：加热管，刀片 ，固态 ，感温线，皮带
附带工具箱一个配送

可适用包装材料
OPP/PE,PET/VM,PET/PE,OPP/CPP等复合热封材料。

运输方式：上海客户直接货车送货，其他省市都是专线货运速配，免费送货到公司，出口业务到***港口
