买家须知  BUYER BEWARE：

       1.  标价为单台立式行星式球磨机的价格，该价格不含17%增值税和运费，整套标价包含不锈钢球磨罐和不锈钢球；

       2.  产品质保2年（消耗品球磨罐和研磨球除外）；自买家签收货物日起两年内，本公司提供免费维修，终身成本维修服务；

       3.  如需配置其他材质的球磨罐和研磨球，请联系客服咨询；

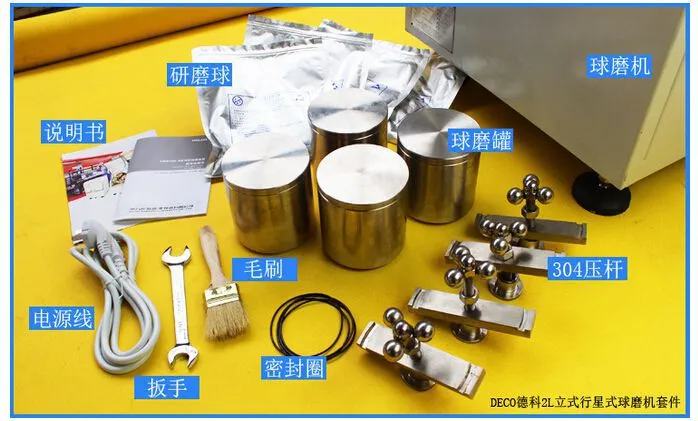

       4.  2L立式行星式球磨机整套配件如下：

            主机：                                          1 台                         重量：120kg         尺寸：830*480*550

            球磨罐：                                       4 个                         重量：3.5kg/个      材质：304不锈钢      容量：0.5L/个

            研磨球：                                       4 套                         重量：1.0kg/套      材质：304不锈钢      规格：5/10/15/20mm

            压杆：                                          4 套                         重量：0.6kg/套      材质：304不锈钢

            润滑油：                                       1 壶                         重量：2kg

            电源线：                                       1 根                         国标插头；     203电缆品字尾线；      1.8米

            毛刷：                                          1 把                         羊毛刷

            扳手：                                          1 把                         17-19mm

            密封圈：                                       4 枚                         规格：85mm          材质：橡胶

            说明书：                                       2 份                         行星式球磨机使用说明书及保修卡；变频器使用说明书；

    关于发票  INVOICE DESCRIPTION：

        本公司可开据【17%增值税专用发票】和【17%增值税普通发票】；

        开据【17%增值税专用发票】需提供正确的：企业全称、税务登记证、开户行名称、银行账号、联系地址、联系电话；

        开据【17%增值税普通发票】请提供正确的：单位名称或个人名称；

       * 请务必确保所提供开票信息的准确性！

     产品简介 INTRODUCTION：

     DECO德科自主研发推出的立式行星式球磨机，是DECO德科***创意型小型实验球磨机产品，产品在保持良好的研磨效率的条

件下，对设备运行噪音以及振动问题作出了重大的技术改善和提高；DECO德科行星式球磨机是利用行星盘高速转动所产生的动能转

变成球磨罐中物料、球磨罐内壁以及研磨球三者之间的摩擦、剪切以及碰撞作用力，从而实现物料的破碎、粉碎、均化或混合；

    DECO德科立式行星式球磨机主要特点如下：

         1.  节能环保，操作简单，安全耐用；

         2.  优选材质、独特外观、精致烤漆、小体积、低噪音、低振动；

         3.  行星式球磨机可干磨、湿磨、真空磨、低温磨、惰性气体磨；

         4.  行星球磨机采用目前国内进的具有程序设置功能的变频调速控制，可实现连续单向、连续换向、定时单向、定时换向

              等多种方式运行，速度可控，时间可控，可长时间运行；

         5.  一机4罐位，可同时研磨4种样品，且同属性样品研磨效果一致，重复研磨效果一致；

         6.  可根据需研磨的物料性质配置不同材质的球磨罐使用，研磨物料种类更加广泛；

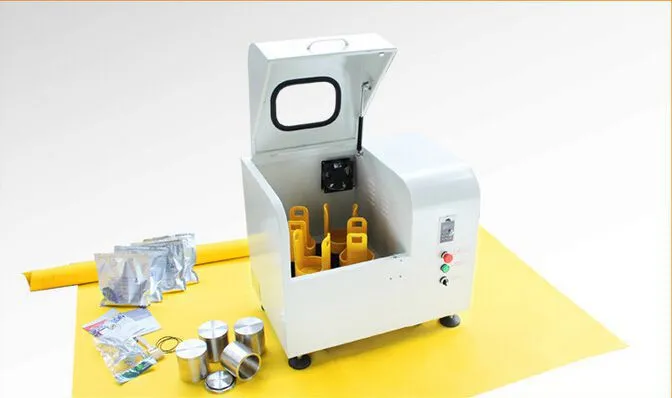

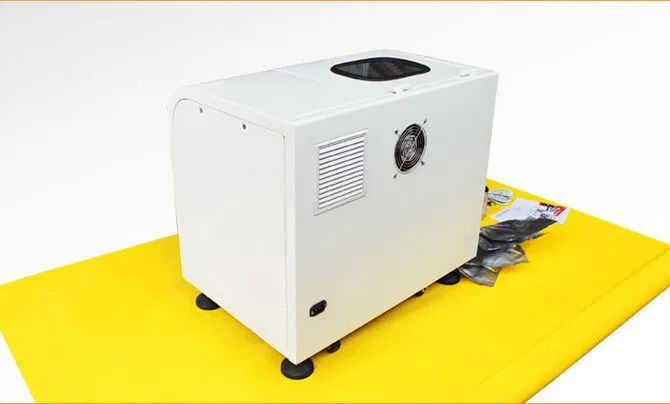

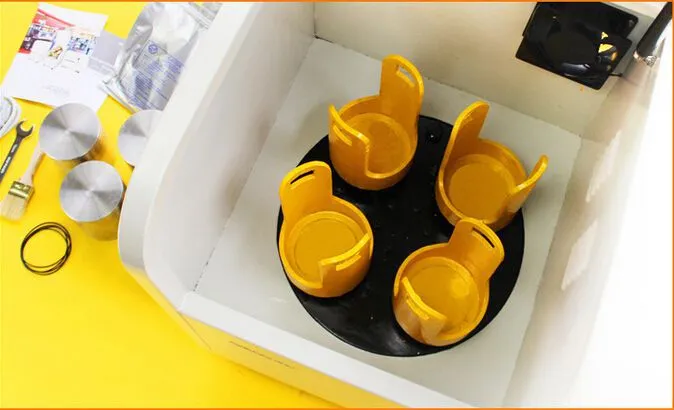

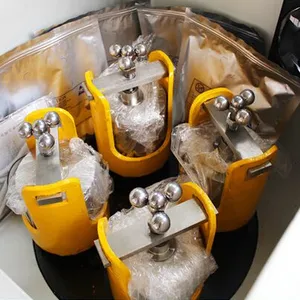

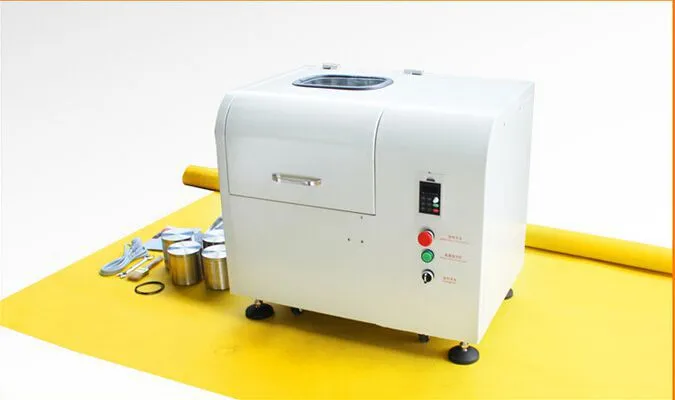

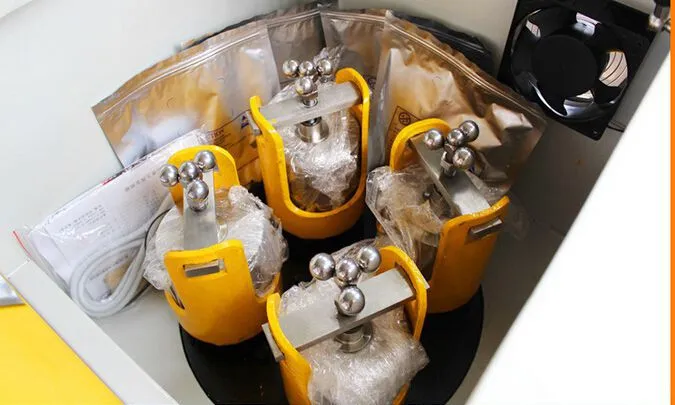

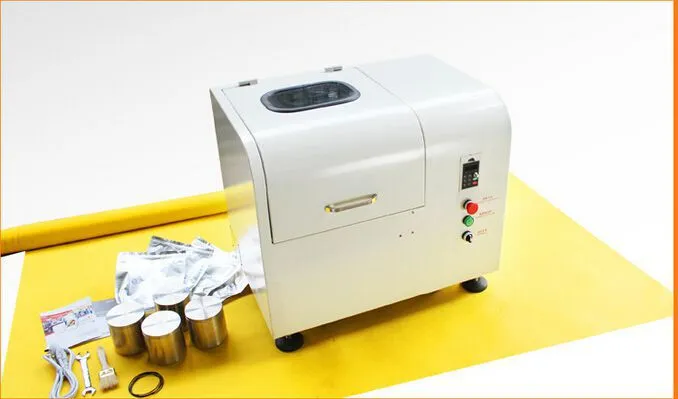

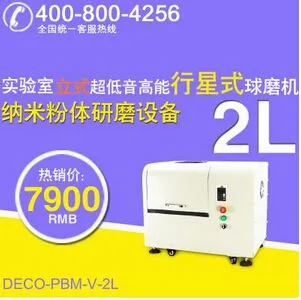

     产品主图  PRODUCTS：

     性能参数  PARAMRTRFE：

     品   牌：               DECO德科

     名   称：               立式行星式球磨机-2L

     型   号：               DECO-PBM-H-2L

     产量 (L)：              2L

     结构形式：            行星式

     研磨方式：            干式/湿式/真空磨/低温磨

     装卸料方式：         间歇式

     传动方式：            齿轮传动

     调速方式：            无极变频调速

     工 位 (P)：            4

     转 速 比：             2:1

     自转速度 (r/min)： 850

     额定电压 (v)：       220

     额定功率 (kw)：     0.75

     频    率 (Hz)：       50

     连续运行时长 (h)： 99

     进料粒度 (mm)：   ≤15

     出料粒度 (μm)：    ≤0.1

     使用寿命(h)：        200000

     出厂老化时长(h)：  24

     球磨罐材质：        不锈钢、锰钢、尼龙、聚四氟乙烯、聚氨酯、玛瑙、氧化锆、氧化铝、硬质合金、定制

     球磨罐罐容积(L)：  0.1 、0.25 、0.5L  可选

     使用空隙率：         20-30%

     使 用 磨 耗(g/h)：  0.0002

     配球材质：            不锈钢、锰钢、尼龙、聚四氟乙烯、聚氨酯、玛瑙、氧化锆、氧化铝、硬质合金、定制

     配球大小(mm):       3、5、8、10、15、20   可选

     磨球配比：            小球30% 中球60% 大球10%

     料 球 比：             2:1或3:1

     净      重(kg)：      120

     尺      寸(mm)：    830*480*550（长*宽*高）

    包装方式：            中性包装、品牌包装

*  以上为产品标准参数，请联系客服咨询产品详细参数 ！

        立式行星式球磨机规格表：  （*点击规格查看报价！）

       |    0.4L    |    1L    |    2L    |   4L   |    6L   |    8L   |    10L   |    12L   |    16L   |    20L   |
