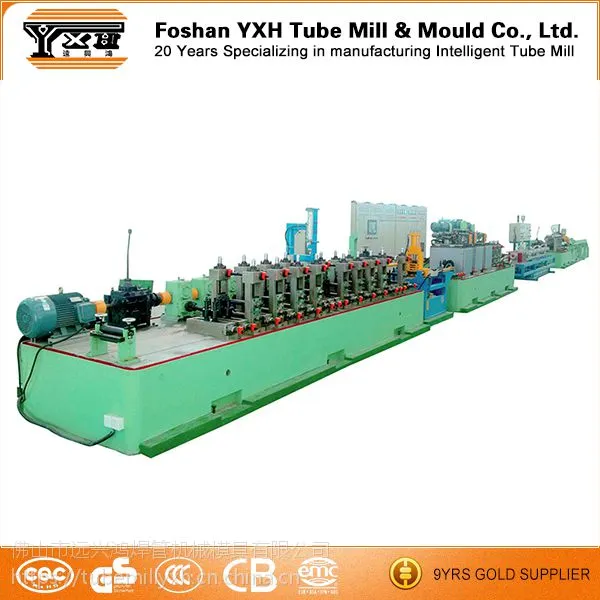

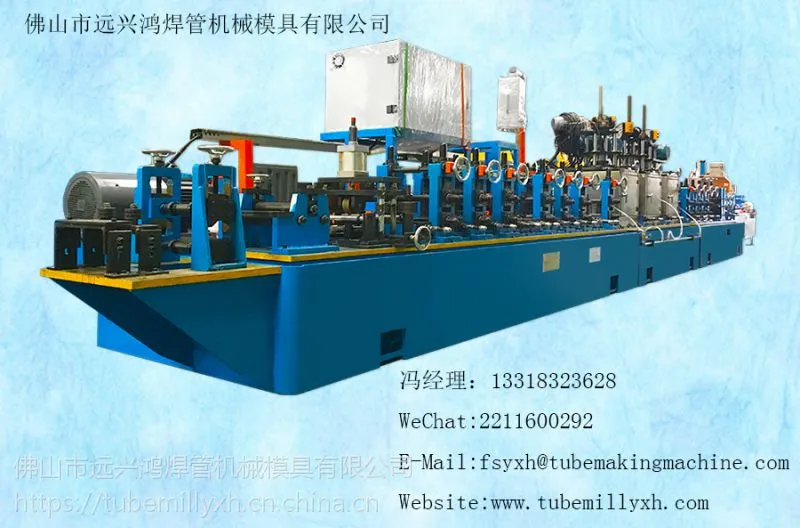

不锈钢工业管制管生产设备

不锈钢工业管制管生产设备，主要用于工业用不锈钢管，由于不锈钢焊管技术的成熟，在很多领域已经取得无缝管。应用于热交换器、流体管卫生用管、汽车排气管、石油化工、建筑材料、钢管用、化学设备等。

不锈钢工业管制管机具体参数：

不锈钢工业管焊管机特点：制管***度高，性能稳定，成品***，全自动化、操作简单、经久耐用，机台坚固，连续生产、效***、材料浪费少，生产成本低。

SS Tube/Pipe Mill Line Equipement characteristic:

The whole machine is welded by Q235 steel plate, world’s top five hundred BAOSTEEL material ,machine vibration aging treatment

All the key parts are processing by CNC machine centre to ensure the precision of equipment

Adopt Dong Feng auto transmission ,enhanced turbine gearboxes ,ensure stability of transmission system

Machine can be customized by customer’s requirements

不锈钢工业管制管机自动化生产流程：经开卷、清洗装置、进料导向、成型、焊接、内焊整平、外焊缝打磨、整形定径、固熔处理、终定径、校直、探伤、喷码、定尺、切断（盘卷）、接料等连续成型工艺、结构精细、操作简便。

Tube/Ppe Mill Equipment’s Line-Up Arrangement (Stainless Steel)

·         un-coiler

·         Strip Jointer (optional)

·         Horizontal Accumulater (optional)

·         Strip guide + Strip leveler

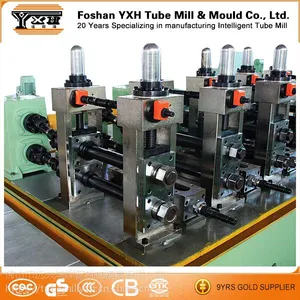

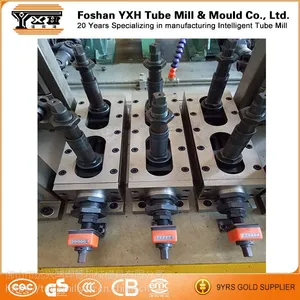

·         Forming Section ( Industrial: break down 4 + by-pass 3 + Fin pass 4 )

·         Welding Section (Squeezing Roll set 3) + anti-twister (Welder: Tig/Plasma+Tig/Tig+Plasma+Tig, according to required working thickness & speed)

·         ECT (optional)

·         Seam polisher 3~4 units

·         Inside bead rolling (min. OD 16mm, max speed 6m/min)

·         1st sizing 2 (for decorative only one section 3~4 units required)

·         Bright Annealing + Anti-twister (optional)

·         2nd sizing (3~4)

·         Turk-Head (1 unit for round, 2~3 units for square)

·         ECT (eddy current tester)

·         OD check (optional)

·         Flying Cutter

·         Pipes collector

工业管制管机主打市场：印度，孟加拉国，巴基斯坦，中东，中亚，俄罗斯，东欧，南美洲，东南亚，南亚，南非等地区。

Main Market: India, Bangladesh, Pakistan, Middle East, Central Asia, Russia, Eastern Europe, South America, South Asia, South African, etc
