Product Overview

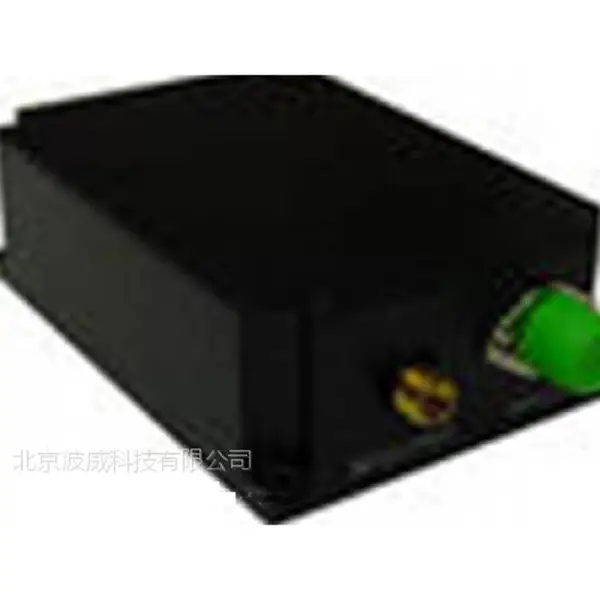

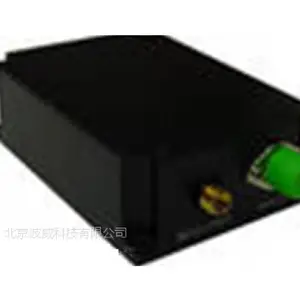

The Optilab LR-30-M is a 30 GHz bandwidth PIN receiver module designed for RF over fiber, antenna remoting, and broadband RF transmission applications using single mode optical. The LR-30-M can accept input power of up to 40 mW. The LR-30-M utilizes a high input power, low distortion PIN photodiode that provides optical to RF conversion out to the frequency range beyond 30 GHz. This compact, cost-effective receiver module can provide users with status monitoring through the use of an on-board processor that communicates to a host computer over an RS-232 I/O interface. When the LR-30 RF over fiber receiver module is linked with the LT series of RF over fiber transmitter modules, the combination provides an excellent solution for ultra-wideband RF to fiber conversion applications, go to /LL for more detail.

Applications

â—†Wideband RF Transmission over Fiber

â—†RF/IF Signal Distribution

â—†Satcom microwave antenna signal distribution

â—†EW Systems

â—†Broadband delay-line and signal processing

â—†Radar system calibration

â—†Phased and interferometric array antenna

Features

â—†Ultra-Wide Bandwidth up to 30 GHz

â—†High Dynamic Range

â—†High Input Power Handling Capacity of 40 mW

â—†Highly Linear for Analog Signals Transmission

â—†No TIA for intrinsic phase linearity

â—†Status Monitoring: RS-232 (standard)

â—†3 year warranty standard
