PNI M&M Blue 9轴模块13759  运动和测量模块

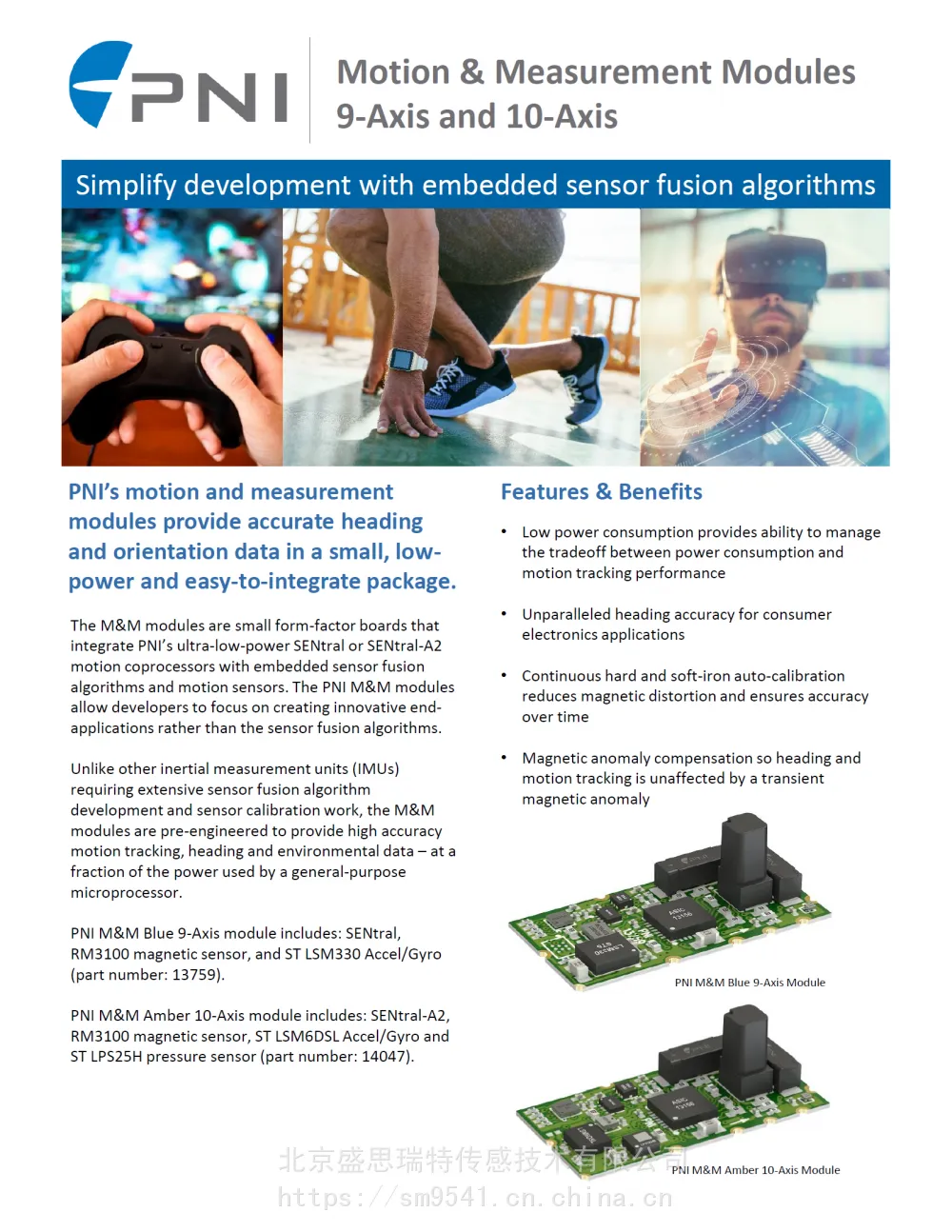

Simplify development with embedded sensor fusion algorithms

PNI’s motion and measurement modules provide accurate heading and orientation data in a small, low-power and easy-to-integrate package.

The M&M modules are small form-factor boards that integrate PNI’s ultra-low-power SENtral or SENtral-A2 motion coprocessors with embedded sensor fusion algorithms and motion sensors. The PNI M&M modules allow developers to focus on creating innovative end-applications rather than the sensor fusion algorithms.

Unlike other inertial measurement units (IMUs) requiring extensive sensor fusion algorithm development and sensor calibration work, the M&M modules are pre-engineered to provide high accuracy motion tracking, heading and environmental data – at a fraction of the power used by a general-purpose microprocessor.

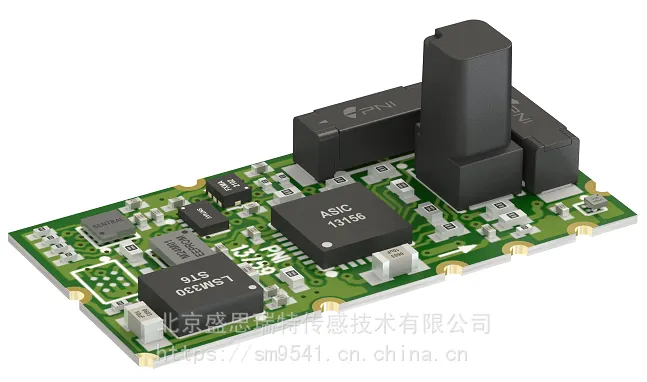

PNI M&M Blue 9-Axis module includes: SENtral, RM3100 magnetic sensor, and ST LSM330 Accel/Gyro (part number: 13759).

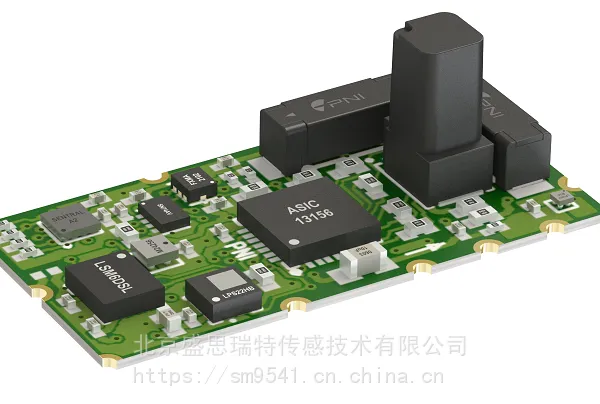

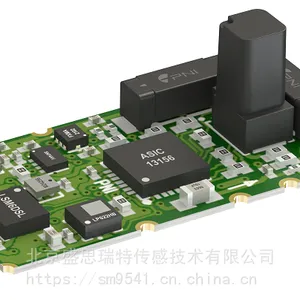

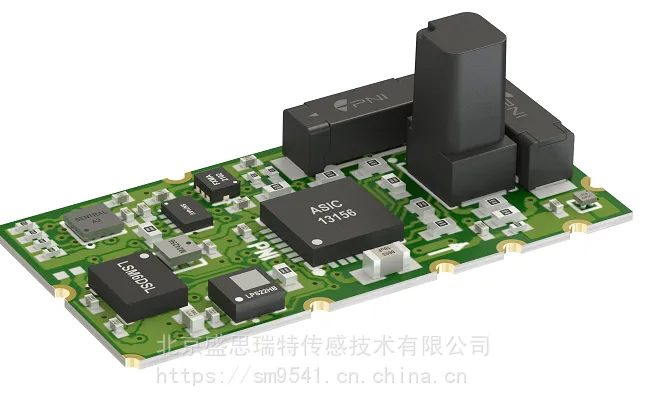

PNI M&M Amber 10-Axis module includes: SENtral-A2, RM3100 magnetic sensor, ST LSM6DSL Accel/Gyro and ST LPS25H pressure sensor (part number: 14047).

运动和测量模块

使用嵌入式传感器融合算法简化开发

PNI的运动和测量模块在一个小型、低功耗和易于集成的封装中提供***的航向和方向数据。

M&M模块是将PNI的***功耗SENtral或SENtral-A2运动协处理器与嵌入式传感器融合算法和运动传感器集成在一起的小尺寸板。PNI M&M模块允许开发人员专注于创建创新的终端应用程序，而不是传感器融合算法。

与其他需要大量传感器融合算法开发和传感器校准工作的惯性测量单元（IMU）不同，M&M模块经过预先设计，可提供高精度的运动跟踪、航向和环境数据，而功耗仅为通用微处理器的一小部分。

PNI M&M Blue 9轴模块包括：SENtral、RM3100磁传感器和ST LSM330加速度/陀螺仪（零件号：13759）。

PNI M&M琥珀色10轴模块包括：SENtral-A2、RM3100磁传感器、ST LSM6DSL加速度/陀螺仪和ST LPS25H压力传感器（零件号：14047）。
