SM5652-003-D-3-SR

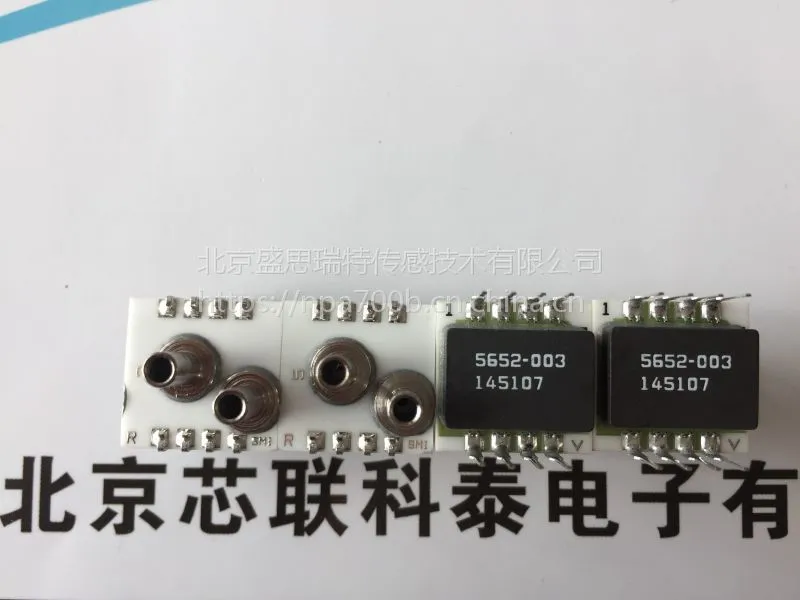

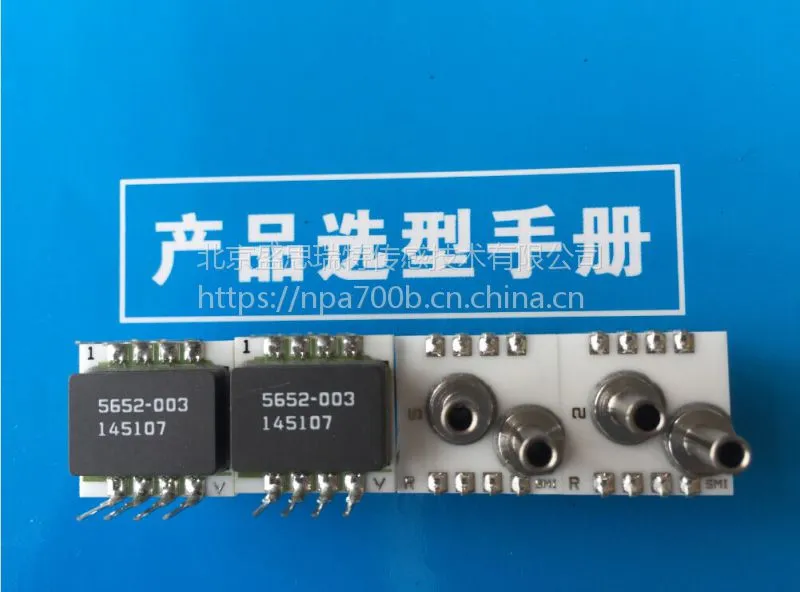

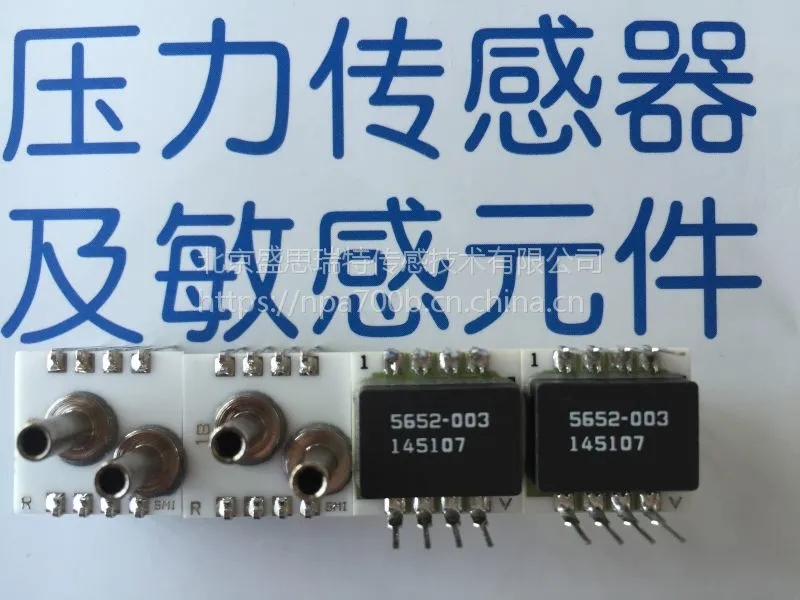

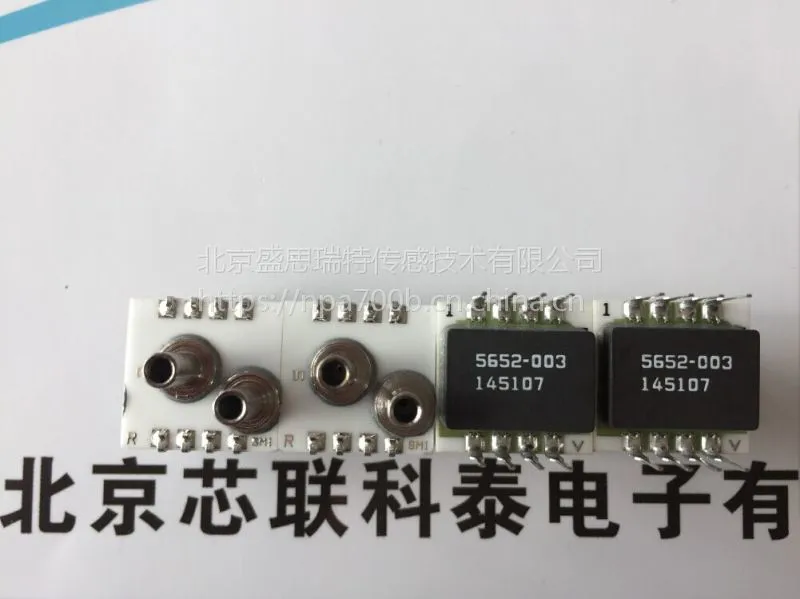

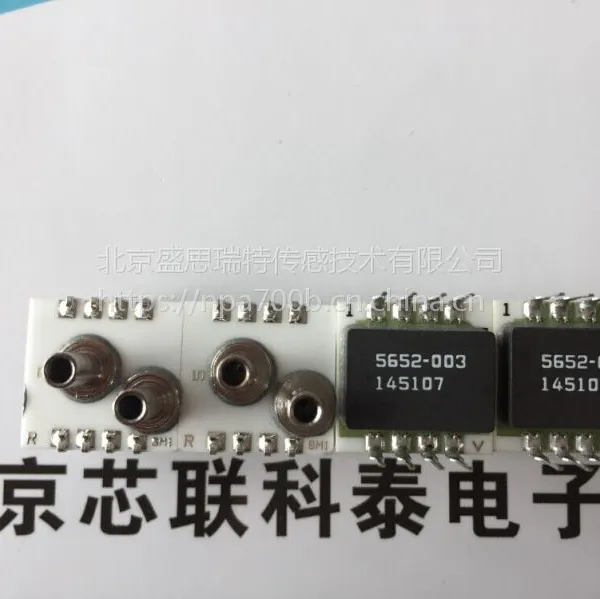

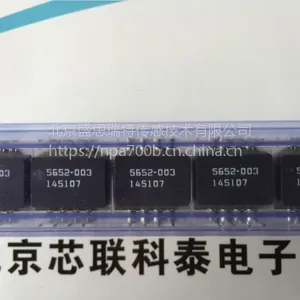

Compensated Low Pressure, Constant Voltage (SM5652)

The SM5652 Series is temperature compensated and calibrated in a ceramic  DIP. The series is available in full scale pressure ranges from 0.15 to  1.5 PSI (1 to 10 kPa).

  SM5652系列为陶瓷基底贴装高稳定压阻压力传感器芯片，利用陶瓷基底上的厚膜电阻可进行零度校正和温度补偿.

特点：   微压0.15psi、0.30psi、0.80psi、1.50psi、和3.0psi

l         恒流或恒压激励

l         温度补偿范围宽（0-60℃）

l         跨度校准正高达±2%

l         零点校准及温度补偿

l         高性能、稳定的硅芯片封装

l         表压和差压配置

应用:
1、医疗设备 呼吸机、麻醉机和监护仪
2、HVAC（空调）
3、水平监测
4、流量测量
5、工业控制
6、微差压变送器
7、泄漏仪、泄漏检测
8、差压变送器
9、压力校验仪
10、大气采样器
11、气相色谱仪、液相色谱仪
12、风压机
13、印染、纺织设备
14、风洞试验
15、臭氧分析仪
16、高铁产品

备注：
1、正压指的是从晶圆底部进入；增益，在工厂校准使用的是负压
2、对于SM5652,量程为0.15psi的满量程输出是23.75mV(最小)至26.25（）
3、测量温度超过22~58℃　对于量程为0.15psi，满量程温度系数为±2%FS；零
点温度系数为±2%FS；对于量程为0.3psi，满量程温度系数为±0.75%FS
4、对于量程为0.3psi，迟滞性为±0.45%FS；对于量程为0.15psi，迟滞性为±
0.65%FS
5、直线拟合，是从晶圆顶部测量的　对于量程为0.3psi，线性度为
±0.5%FS；对于量程为0.15psi，线性度为±2.5%FS
6、灵敏度匹配指的是部分与部分匹配的程度，对于量程为0.15psi，灵敏度匹

配性为5.0%FS
