Allen-Bradley(A-B)光电传感器

光电传感器使用光束检测物体存在与否。当您需要较长的感应距离或者当您想要检测的物品不是金属时，此技术是感应式接近传感器的理想替代方案。我们的光电传感器可满足物料输送、包装、食品加工和运输等许多行业中的应用项目需求。对于专门的要求使用非标准连接器或电缆的应用项目，我们可以自定义传感器连接.

光栅

光阵列传感器将多个发射器或接收器元件组合到单个外壳中，以形成一个传感场而不是一根单独的传感光束。因此，这些传感器可检测很大范围内的目标。这使这些阵列传感器非常适合检测形状不规则的部件、带有间隙或空隙的产品、或者位置不一致的目标，而成本只有使用多个传感器对成本的一小部分。

45AST 区域

45DLA 离散

45MLA 测量

45PVA 零件检测

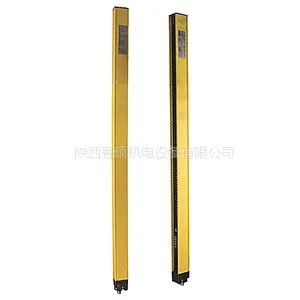

测量光阵列光电传感器

    45MLA 测量光阵列光电传感器可在二维区域中检测或测量目标，即使零件的形状、大小或位置不规则。这些传感器可检测和传送各光束状态以测量并确定物体的位置。发射器和接收器阵列连接到一个单独的控制器。所有 I/O、通信和电源连接，全部都接到外部控制器。我们提供具有各种功能和/或通信接口的控制器：I/O、控制器域网络、RS485、二进制和模拟。

特性

传感器高度为 300 毫米至 1200 毫米（11.8 英寸至 47.2 英寸）

检测范围最远为 4 米（13 英尺）

检测位于感应区域中任意位置的物体

检测带有间隙或空隙的目标

15 x 20 毫米（0.6 x 0.8 英寸）的超薄外壳外形

10 毫米（0.39 英寸）或 25 毫米（0.98 英寸）的光束间距

可选择级联方式用于 X-Y 应用项目.

45MLA-AT0300P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 300 mm (11.8 in) height

45MLA-AT0300P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 300 mm (11.8 in) height

45MLA-AT0600P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 600 mm (23.6 in) height

45MLA-AT0600P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 600 mm (23.6 in) height

45MLA-AT0900P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 900 mm (35.4 in) height

45MLA-AT0900P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 900 mm (35.4 in) height

45MLA-AT1200P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 1200 mm (47.2 in) height

45MLA-AT1200P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 1200 mm (47.2 in) height

45MLA-CT0300P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 300 mm (11.8 in) height

45MLA-CT0300P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 300 mm (11.8 in) height

45MLA-CT0600P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 600 mm (23.6 in) height

45MLA-CT0600P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 600 mm (23.6 in) height

45MLA-CT0900P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 900 mm (35.4 in) height

45MLA-CT0900P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 900 mm (35.4 in) height

45MLA-CT1200P10 45MLA TB Pair, 10 mm (0.39 in) Pitch, 1200 mm (47.2 in) height

45MLA-CT1200P25 45MLA TB Pair, 25 mm (0.98 in) Pitch, 1200 mm (47.2 in) height

45MLACTRL100F

45MLACTRL485

45MLACTRLALG

45MLADT0300P10

45MLD8LEA1P4

45PVA1LEB1F4

45PVA1LEB2F4

45PVA1LEB3F4

45PVA1LEB4F4

45PVA2LEA1F4

45PVA2LEA2F4

450LAW1950

45AST1JNB4F4

45AST1JPB2F4

45AST1JPB3F4

45AST1JPB4F4

45BPD8LTB1D5

45BPD8LTB2D5

45BPDBKT1

45CLR5JPC1D8

45CPD8LTB1D5

45CRM4LHT1D4

45CRM4LHT2D4

45CRMBRK1ADAPT

45CSA103608M0048

45DLA1LEB1TF4

45DLA1LEB2TF4

45DLA1LEB4TF4

45DLA1LEB6TF4

45DLA1LEB8TF4

45FPL2LHEY3

45LMSBKT1

45LMSBKT2

45LMSBKT3

45LMSD8LGC1D4

45LMSD8LGC2D4

45LMSU8LGC3D4

45LSP2LPA1P3

45LSP2LPA2P3

45LSP2LPA2P4

45LSP2LPA4P4

45LST1LEA3P4

45LUMD7JPT1D5

Certifications cULus and CE Marked for all applicable directives

Operating Enviroment IP54

Operating Temperature [C (F)] 0…+55° (+32…+131°)

Storage Temperature [C (F)] –20…+70° (–4…+158°)

Vibration 10…55 Hz; amplitude 0.35 mm (0.01 in.); meets

or exceeds IEC 60068-2-6

Shock

Acceleration 10 g, pulse duration 16 ms;10…55

Hz; amplitude 0.35 mm (0.01 in.); meets or

exceeds IEC 60068-2-29

Relative Humidity 15…95%

Optical

Sensing Modes Transmitted beam pair

Sensing Range 0…4 m (0…13 ft)

Field of View 3.2°

Light Source 940 nm

Beam Spacing (pitch) 10 mm (0.4 in.) or 25 mm (1.2 in.)

Minimum Detectable Object Height 18 mm (0.7 in.) or 33 mm (0.3 in.)

LED Indicators Red: Status

Green: Alignment

Mechanical

Housing Material Aluminum

Lens Material Polycarbonate

Cover Material Polycarbonate

Connection Types

8-pin DC micro (M12) female QD on 500mm (20

in.) cable pigtail (for connection to 45MLA

controller only)

Accessories

Supplied Accessories Adjustable mounting kit (445L-AF6143)

Required Accessories (Controller)

Controller Analog Model:

 45MLA-CTRL-ALG

Controller Basic Model: 45MLA-CTRL-BSC

Controller I/O Model: 45MLA-CTRL

Controller RS485: 45MLA-CTRL-485

Controller CAN: 45MLA-CTRL-CAN

Required Accessories

(Light array to controller connecting

cable)

3 m M12—RJ45: 445L-AC8RJ3

5 m M12—RJ45: 445L-AC8RJ5

8 m M12—RJ45: 445L-AC8RJ8

Max. system length cannot exceed 10 m (32.8 ft)

Optional Accessories

Adjustable flat mounting bracket:

 445L-AF6149

Flat mounting kit: 445L-AF6145

Cascadable array extension patchcord,

M12 8-pin, 3M: 445L-AC8PC3
