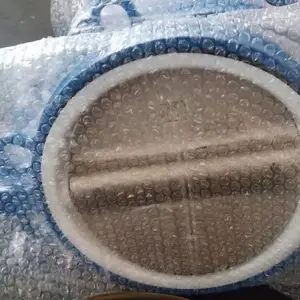

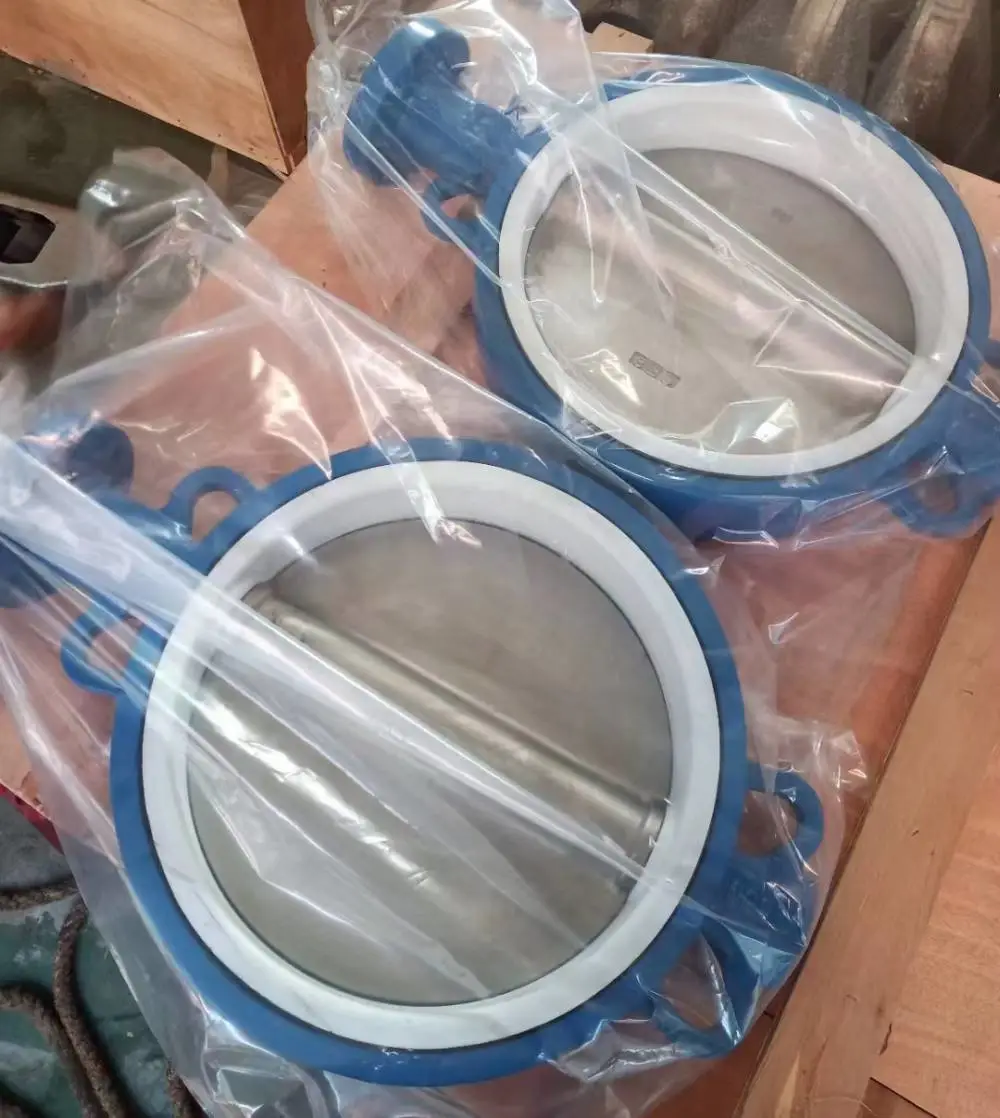

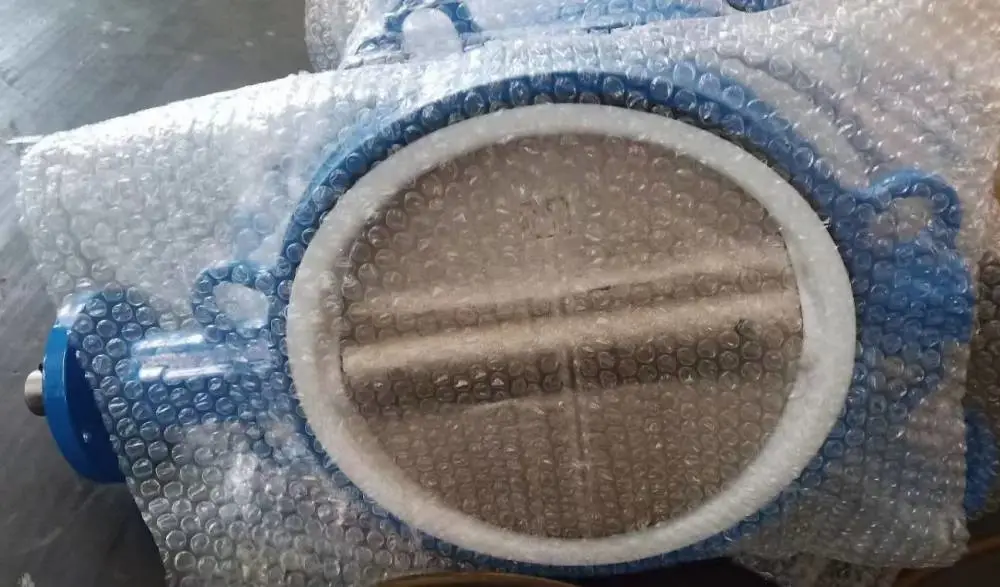

D671F4-10C铸钢动衬氟对夹蝶阀 DN1000 庄河市供应各种超大口径蝶阀系列

所有阀门系列详情及报价请咨询电话：153-5622-5255

D671F4-10C铸钢动衬氟对夹蝶阀 DN1000 庄河市供应各种超大口径蝶阀系列

产品特色

气动软密封蝶阀

气动软密封蝶阀是指关闭件(阀瓣或蝶板)为圆盘，围绕阀轴旋转来达到开启与关闭的一种阀，在管道上主要起切断和节流用。主要由蝶阀和配套气动执行器（GT/aero2/AT/AW系列）组成，具有结构简单、体积小、重量轻、材料耗用省，安装尺寸小，开关迅速、90°往复回转，驱动力矩小等特点，用于截断、接通、调节管路中的介质，具有良好的流体控制特性和关闭密封性能。

Pneumatic soft sealed butterfly valve

Pneumatic soft seal butterfly valve is a closed valve (disc or butterfly plate), which is opened and closed by rotating around the valve shaft. It is mainly used for cutting and throttling on pipelines. Mainly by the butterfly valve and auxiliary pneumatic actuator (GT/aero2/AT/AW Series), has the advantages of simple structure, small volume, light weight, material consumption, installation of small size, fast switching, reciprocating and rotating 90 degrees, small driving torque characteristics, for truncation, connect, adjust the line of medium, has good flow control characteristics and close the sealing performance.

气动软密封蝶阀配套执行器（气缸/气动头）主要性能参数：

1.气缸类型：GT系列，aero2系列,AT系列及AW系列（可选）。

2.作用方式：双作用活塞式、单作用弹簧复位式。

3.气源压力：0.4～0.8Mpa(4～8bar)

4.工作介质：干燥、清洁不含腐蚀性气体

5.工作温度：-20°C～80°C(环境温度)，其他温度请具体咨询。

6.动作范围：0～90°±5°

7.接口螺纹：G1/8",G1/4"，其他规格请具体咨询。

8.壳体材质：GT/aero2/AT系列默认铝合金，AW系列铸铁，其他材质请具体咨询。

9.选配附件：电磁阀，限位开关，气源处理元件，手动操作器及阀门定位器等。

The main performance parameters of the pneumatic soft seal butterfly valve actuator (cylinder / pneumatic head):

1. cylinder types: GT series, aero2 series, AT series and AW series (optional).

2. action mode: double action piston type, single action spring reset type.

3. gas source pressure: 0.4 ~ 0.8Mpa (4 ~ 8bar)

4. working medium: dry, clean, non corrosive gas

5. working temperature: -20 C ~ 80 C (ambient temperature), other temperatures please consult.

6. range of action: 0~90 + 5 degrees

7. interface thread: G1/8 "G1/4", other specifications for specific consultation.

8. shell material: GT/aero2/AT series of default aluminum alloy, AW series cast iron, other materials please specific consultation.

9. accessories: solenoid valve, limit switch, gas source processing element, manual operation device and valve locator.

手动对夹式衬胶蝶阀软密封中线对夹式蝶阀，双偏心法兰式蝶阀结构紧凑，90°回转开关轻松，密封可靠，使用寿命长，被广泛用于水厂、电 厂、钢厂、造纸、化工、饮食等系统供排水中，作为调节和截止使用。
产品特点：
1、本阀采用双偏心结构，具有越关越紧的密封功能，密封性能可靠。
2、密封副材料选用不锈钢和丁腈耐油橡胶配对，使用寿命长。
3、橡胶密封圈即可位于阀体上，也可以位于蝶板上，可适用不同特点的介质，供用户选择。
4、蝶板采用框架结构，强度高，过流面积大，流阻小。
5、整体烤漆、能有效地防止锈蚀且只要更换密封阀座密封材料，就可使用于不同介质。
6、本阀具有双向密封功能，安装时不受介质流向的控制，也不受空间位置的影响，可在任何方向安装。
7、本阀结构独特，操作灵活，省力，方便。

Manual clamping type rubber valve soft sealing line clip on butterfly valve, double eccentric flanged butterfly valve has the advantages of compact structure, 90 degree rotary switch easy, reliable sealing, long service life, widely used in waterworks, power plants, steel mills, papermaking, chemical, food and other systems for draining water, as the regulation and cutoff.

Product features:

1, the valve adopts double eccentricity structure, which has tighter tighter sealing function, and the sealing performance is reliable.

2. The sealing auxiliary materials are paired with stainless steel and NBR and oil and rubber, and their service life is long.

3, the rubber sealing ring can be located on the valve body, and can be located on the butterfly plate. It can be used for different characteristics of the medium for the user to choose.

4. The frame structure is adopted for the butterfly plate, which has high strength, large overflow area and small flow resistance.

5. The whole paint can effectively prevent corrosion and can be used in different media as long as the sealing material is replaced.

6, the valve has a two-way sealing function, when the installation is not controlled by the flow direction of the medium, and is not affected by the space position, it can be installed in any direction.

7, the valve structure is unique, flexible operation, labor saving, convenient.
