1

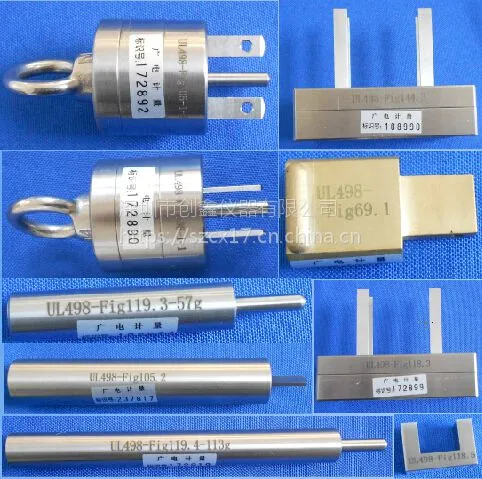

UL498 Figure 9.1

articulate probe   with web stop

1

2

UL498 Figure 10.1

probe

1

3

UL498 Figure 31.1

flat probe

1

4

UL498 Figure 69.1

reference plug

1

5

UL498 Figure 94.1

impoper insertion   test blades

2

6

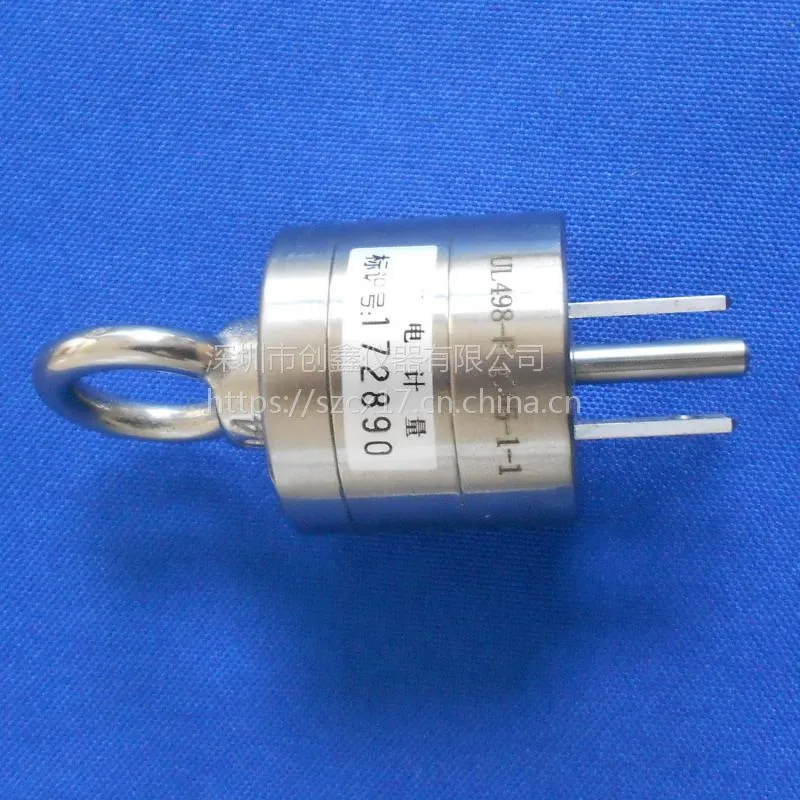

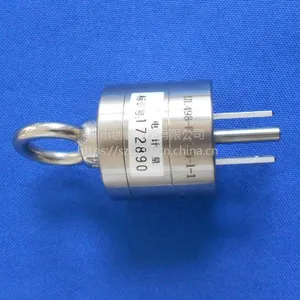

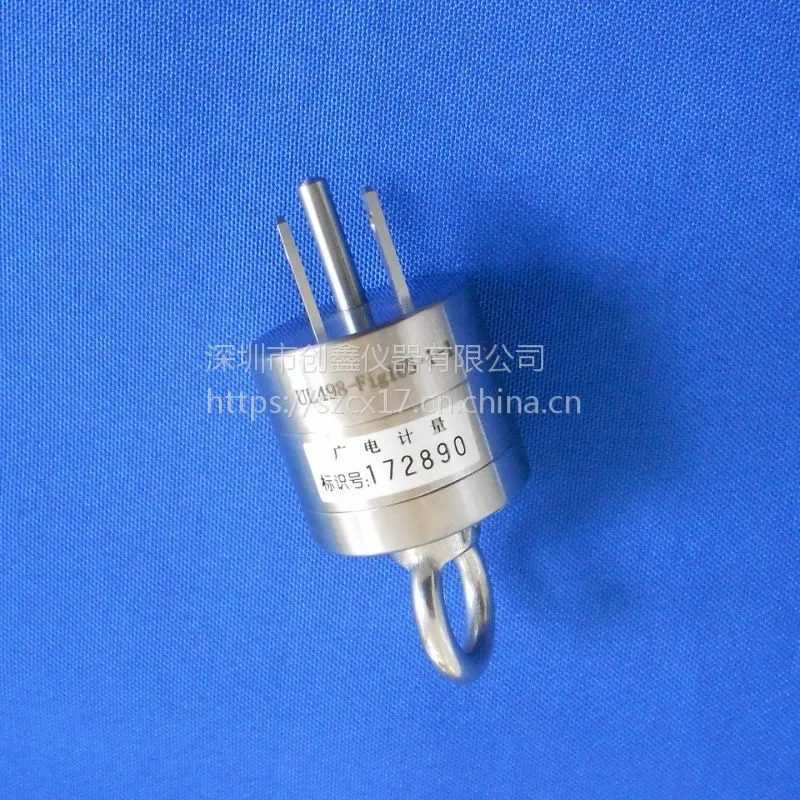

UL498 Figure 105.1

test plug

2

7

UL498 Figure 105.2

test blade

1

8

UL498 Figure 118.1

receptacle test   fixture

1

9

UL498 Figure 118.3

push out tool

1

10

UL498 Figure 118.5

bridge

1

11

UL498 Figure 119.1

test pin A

1

12

UL498 Figure 119.2

test pin B

1

13

UL498 Figure 119.3

57g ground pin

1

14

UL498 Figure 119.4

113g ground pin

1

15

UL498 Figure 129.2

***4 AWG test pin

1

16

UL498 Figure 132.1

test probe

1

17

UL498 Figure 132.2

test probe

1

18

UL498 Figure 144.2

fixture for   assembly security test

1

19

UL498 Figure SD13.2

over size ground   pin

1
