Application: Dock

Product Description:

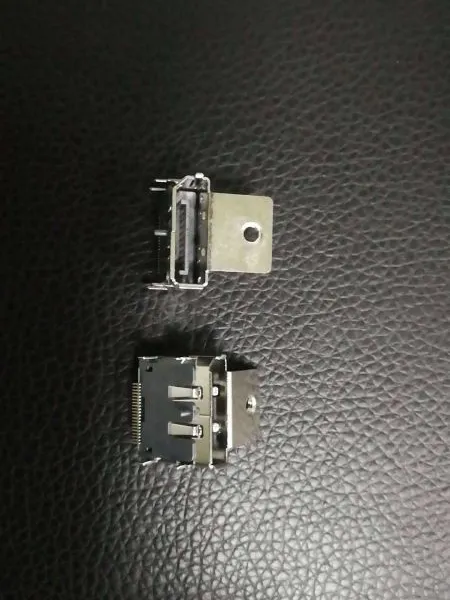

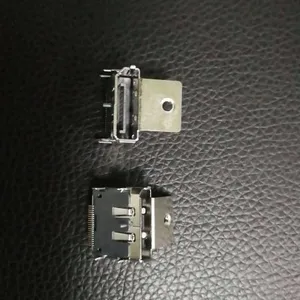

DISPLAYPORT,  Right Angle,STD

Product General Characteristic:

?9?9 Pin Count : 20Pin

?9?9 Category:  I/O Series

?9?9 Overview: DISPLAYPORT

?9?9 Component Type:  Receptacle

?9?9 PCB Mount Type:  SMT

?9?9 Orientation:  Right Angle,STD

Physical Characteristic:

?9?9 Housing Material/Color:  LCP_BLACK

?9?9 Cover Material/Color: LCB_BLACK

?9?9 Contact Material:  C2680

?9?9 Plating Material on Contact Area:15u鈥� Au MIN

?9?9 Pitch (mm[in]):  N/A

?9?9 Tail Length (mm[in]): 2.1mm

?9?9 Locating Post (s) (mm[in]):  N/A

?9?9 Durability: 10000Cycle

Electrical Characteristic:

?9?9 Max. Current Per Contact (A):  Max.0.***

?9?9 Max. Voltage (V):  30V AC(RMS)

Solder Process Characteristic:

?9?9 Solder Process Type: WAVEReflow

?9?9 Max. Process Temperature(鈩�):  260鈩�

?9?9 Duration at Max. Process Temperature(s):  10s

Environment Characteristic:

?9?9 Ro HS/ Halogen Free (HF) Compliance:  HF

Others:

?9?9 Packaging: REEL
