QD-200给袋式包装机全自动旋转式给袋式冷冻产品糖果瓜子薯片自动定量称重包装机

1.包装范围广泛：适用于各种形状、状态、性质的物料如:大小颗粒、粉料、酱料、液料等（大米，粗粮，坚果炒货，麻辣膨化，板栗，豆腐干、鸡鸭爪、榨菜、淀粉、洗衣液、火锅底料等等）；

2.操作方便：采用PLC触摸屏控制,人机界面操作系统，操作直观方便；

3.调节方便：机夹同步调节，生产不同产品时设备的参数可保存，更换品种时从数据库调取即可完成；

4.自动化程度高：所有动作都采用端面凸轮完成，相比沟槽凸轮加工工艺简单成本低，高速运时速度可达60pcs/min；

5.***预防系统，可智能检测是否开袋及开袋是否完整，在不合适加料的情况下不加料不热封，不浪费袋子及物料，空袋可循环至工位从新装填，避免的袋子污染造成的浪费，节约成本；

6.设备符合食品加工机械的卫生标准，设备与物料接触部分采用304不锈钢或其他符合食品卫生要求的材料加工，***食品的卫生和，符合GMP标准；

7.采用无油真空泵，避免污染生产环境；

8.采用防水设计，清洁方便，降低清洗难度，提高机器使用寿命。

9.使用预制包装袋，封口质量高，提升成品档次。

10.该机可以选配真空装置、电子称、粉剂头、酱料泵、液体泵及相应的上料装置等。

(结构功能简单紧凑成本比D型机低，机夹一体式调节、机械动作采用端面凸轮加拉簧复位控制、空袋循环、产品参数可保存)

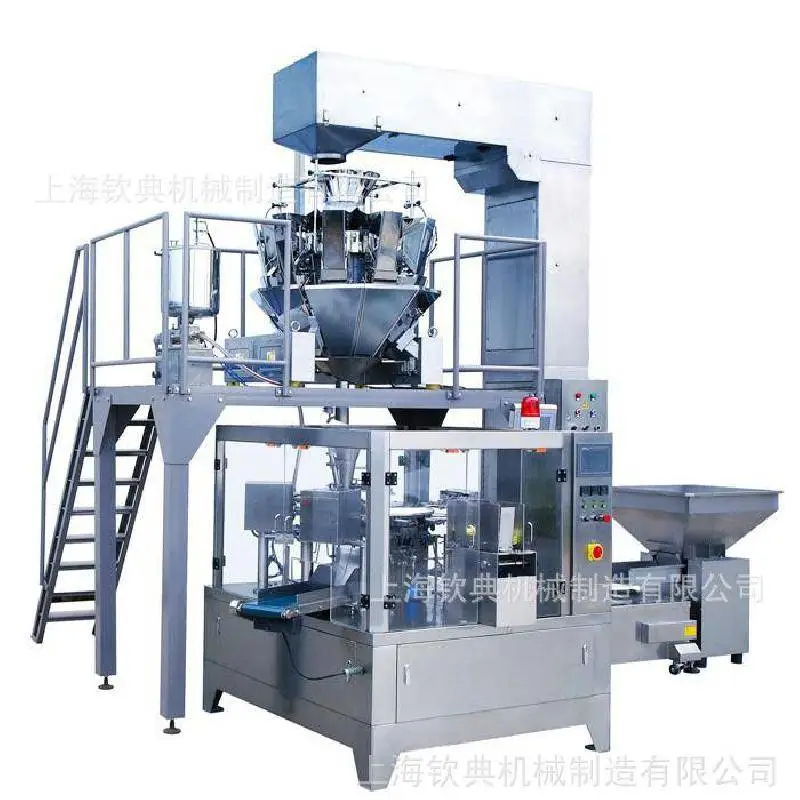

QD-200 bag packing machine

1.Application: suitable for various shapes, states, or properties material packing, such as big and small granule、powder、sauce、liquid... (Rice, whole grains, nuts, spicy puffed chestnut, dried tofu, chicken and duck claws, pickled mustard tuber, starch, liquid detergent, hot pot flavouring and so on)

2.Easy to operate: Adopt PLC touch screen control, man-machine interface operating system and intuitive and convenient operation.

3.Easy to adjust: machine clamping synchronous adjustment, production of different products, equipment parameters can be saved,  varieties from the database can be completed.

4.The degree of automation is high: all actions are finished with end cam, compared with the groove cam, the processing technology is simple, the cost is low, and the speed can reach 60pcs/min at high speed.

5.Perfect prevention system, can detect the bag is open or open completely intelligent ,no feeding and no heat sealing when not the right time, no waste of bags and materials, empty bags can be recycled to the first station to fill, avoid the pollution caused by waste, saving cost.

6.The equipment conforms to the hygienic standard of food processing machinery. The contact parts of equipment and materials are processed with stainless steel 304 or other materials conforming to the requirements of food hygiene, and the hygiene and safety of food are guaranteed. It conforms to the GMP standard.

7.The use of oil-free vacuum pumps to avoid polluting the production environment

8.Waterproof design, easy to clean, reduce the difficulty of cleaning, improve the life of the machine.

9.The use of prefabricated packaging bags, high sealing quality, improve the grade of finished products.

10.The machine can be equipped with vacuum devices, electronic scales, powder head, sauce pump, liquid pump and the corresponding feeding device.

(The utility model has the advantages of simple structure, compact function, lower cost than the D type machine, integral adjustment of the machine clamping, mechanical actions of the end cam and extension spring reset control, empty bag circulation, and the product parameter can be saved)
