上海现货*** MICROMASTER440变频器15千瓦西门子 380-480V

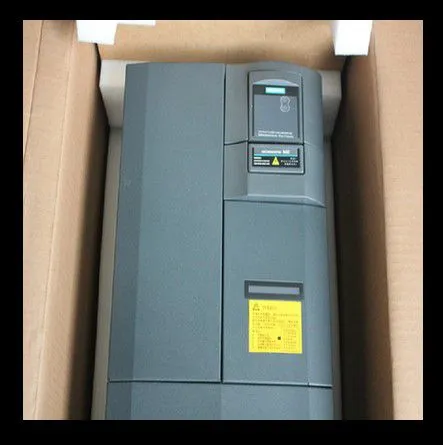

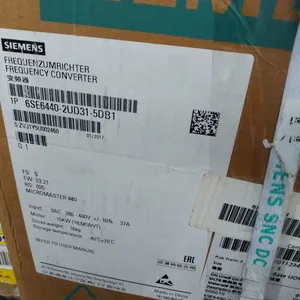

型号：6SE6440-2UD31-5DB1  实拍图

西门子代理商 公司销售 维修 上门调试  改造工程等

发布人：康奎 （销售经理）发布

本公司签约正式的销售合同，并开具13%的增值税发票。

外地客户统一采用快递发货,也支持上门提货，货物快递到您手时候,一定要开箱检验!如有损坏,请拒绝签收,并由快递公司返回!

在你签收后表示你对该货物没有异议!我们会给予您检测时间,并请在货物到给予确认,谢谢合作!

产品均为密封包装，外包装详见产品图片，白色标签上均有产品订货号和产地，各位买家在收到货后，请核对型号，无误后再拆包装、

本公司宗旨：本着以诚信为本，以顾客为中心.质量***·服务诚信·价格实惠.

为用户提供专业的自动化产品及服务！

The MICROMASTER 440

The MICROMASTER 440 are frequency inverters for speed and torque control of

three-phase motors. The various models available cover the performance range

from 120 W to 200 kW (for constant torque (CT), alternatively up to 250kW (for

variable torque (VT)).

The inverters are microprocessor-controlled and use state-of-the-art Insulated Gate

BipoIar Transistor (IGBT) technology. This makes them reliable and versatile. A

special pulse-width modulation method with selectable Pulse frequency permits

quiet motor operation. Comprehensive protective functions provide excellent

inverter and motor protection.

With the factory default settings, the MICROMASTER 440 is suitable for many

variable speed applications. Using the functionally grouped parameters, the

MICROMASTER 440 can adapted to more demanding applications.

The MICROMASTER 440 can be used in both &＃39;stand-alone&＃39; applications as well as

being integrated into &＃39;Automation Systems&＃39;.

Issue 10/06 1 Overview

MICROMASTER 440 Operating Instructions

6SE6400-***W00-0BP0 19

1.2 Features

Main Characteristics

? Easy installation

? Easy commissioning

? Rugged EMC design

? Can be operated on IT line supplies

? Fast repeatable response time to control signals

? Comprehensive range of parameters enabling configuration for a wide range of

applications

? Simple cable connection

? Output relays

? Analog outputs (0 – 20 mA)

? 6 ***lated and switchable NPN/PNP digital inputs

? 2 Analog inputs:

? ADC1: 0 – 10 V, 0 – 20 mA and -10 to +10 V

? ADC2: 0 – 10 V, 0 – 20 mA

? The 2 analog inputs can be used as the 7th and 8th digital inputs

? BICO technology

? Modular design for extremely flexible configuration

? High switching frequencies (drive inverter specific up to 16 kHz) for low-noise

motor operation

? Internal RS485 interface (port)

? Detailed status information and integrated message functions
