CC12H5A-TR -

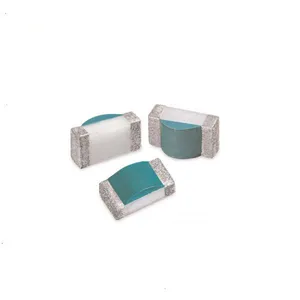

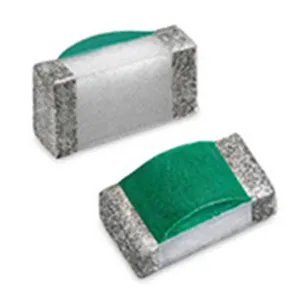

保险丝, SMD, 5A, 1206 贴片保险丝 慢熔断

• 保险丝电流:5A

• 产品范围:Chip Series

• 额定电压 V AC:

• 额定电压 V DC:63VDC

• 熔断特性:Slow Blow 慢熔断

• 保险丝封装类型:1206

• 直流电流分断能力:100A

Part Number Current rating (A) Voltage rating (VDC) Interrupting rating? (A) Typical DC cold resistance? (mΩ) Typical pre-arcing? I?t (A2s) Typical voltage drop (mV) Part marking

规格型号   额定电流          额定电压

CC12H250mA       0.25         63                 50                 3500                  0.00038                  1400              .25

CC12H375mA       0.375        63                 50                 1750                  0.00077                  730                A

CC12H500mA        0.5         63                 50                  980                  0.0019                   700               .5

CC12H750mA       0.75         63                 50                   800                   0.15                    700               E

CC12H1A           1           63                 50                   470                  0.18                     490               H

CC12H1.5A        1.5           63                 50                   218                   0.4                     355               K

CC12H2A           2           63                 50                   133                   1.1                     305               N

CC12H2.5A        2.5           63                 50                   79                    1.7                     240               O

CC12H3A          3            63                 50                   49                    2.2                     185               P

CC12H3.5A        3.5           63                 50                   37                    2.7                     180               R

CC12H4A          4            63                 50                   33                    3.2                     169               S

CC12H4.5A        4.5           32                100                   28 4.                  2                      160                X

CC12H5A           5            32                100                   23                    6                      140               T

CC12H6A           6            32                100                   15.5                  12                      150              F

CC12H7A           7            32                100                   11.5                  18                      130              J

CC12H8A           8            32                100                   7.3                   18                      110              V

CC12H10A         10            32                100                   6.5                   30                      90              U

CC12H12A         12            32                100                   4.7                   45                      90              W

CC12H15A         15            32                100                   3                     33                      90              Y

CC12H20A        20             32                100                   2                     80                      90              Q

CC12H25A        25             32                200                  3                      60                       90             L

CC12H30A        30             32                200                  2.1                    100                      90             Z

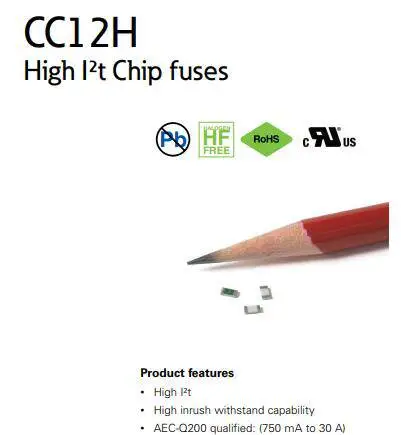

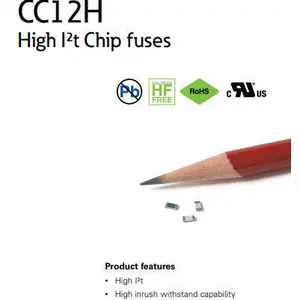

产品特点

高冲击耐受能力

AEC-Q200合格：（750 mA至30 A）

良好的温度和循环

特点

1206（3216公制）紧凑型设计

使用更少的板空间

与回流焊和波焊

应用

二次回路保护

笔记本电脑、笔记本电脑、上网本

平板电脑、电子阅读器

平板显示器

高清电视（HDTV）

LCD/LED背光

计算机和外围设备

游戏机系统

手持/便携式设备

移动设备充电器

汽车

中央车身控制模块

暖通空调

控制器（暖通空调）

车门、车窗升降和座椅控制

数字仪表盘

车内信息娱乐（IVI）和导航

电动泵、电机控制和辅助设备

动力传动系统控制模块（PCU）/发动机

控制单元（ECU）

变速箱控制单元（TCU）

机构信息

curus识别：文件E19180，指南

JDYX2/JDYX8型

符合AEC-Q200标准（750 mA至30 A）

tr（每7“直径卷筒3000个零件，胶带宽度8 mm）
