A10VSO28DFR1/31R-PPA12N00柱塞泵，力士乐原装正品，***

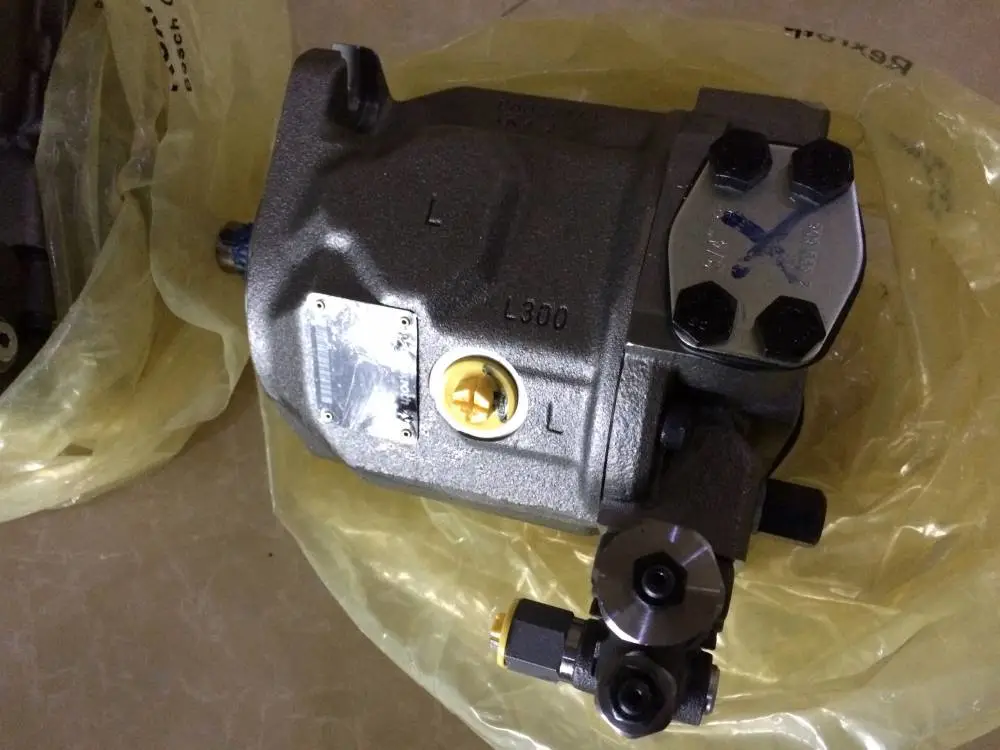

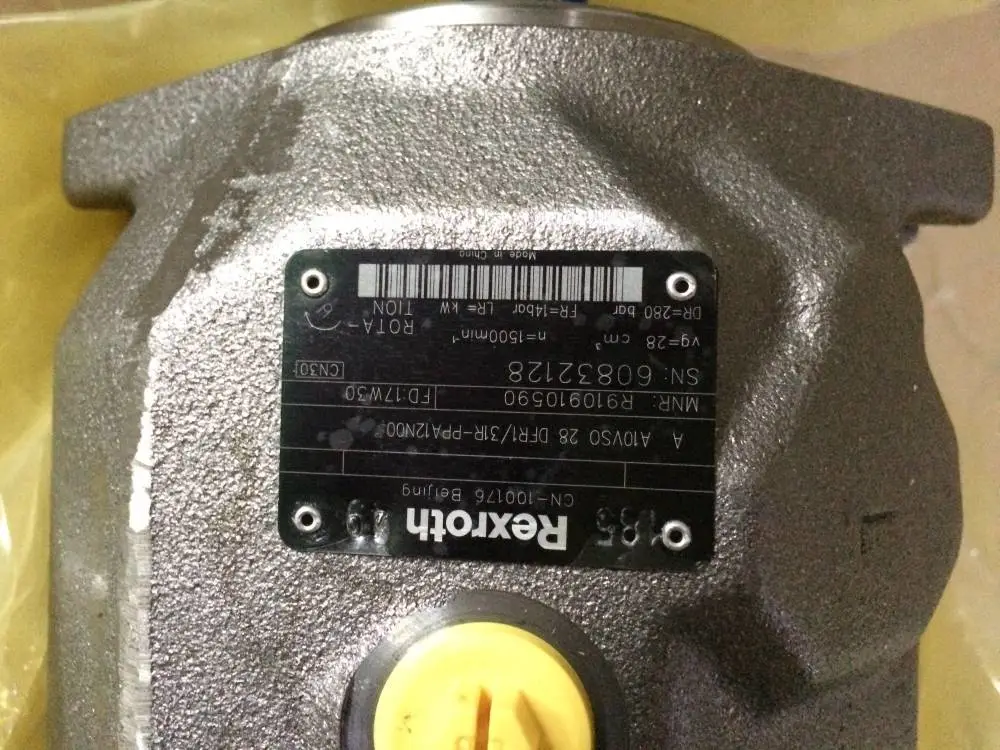

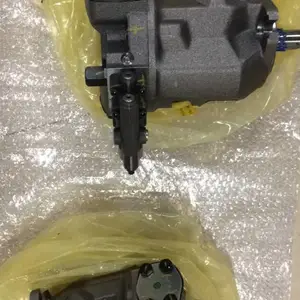

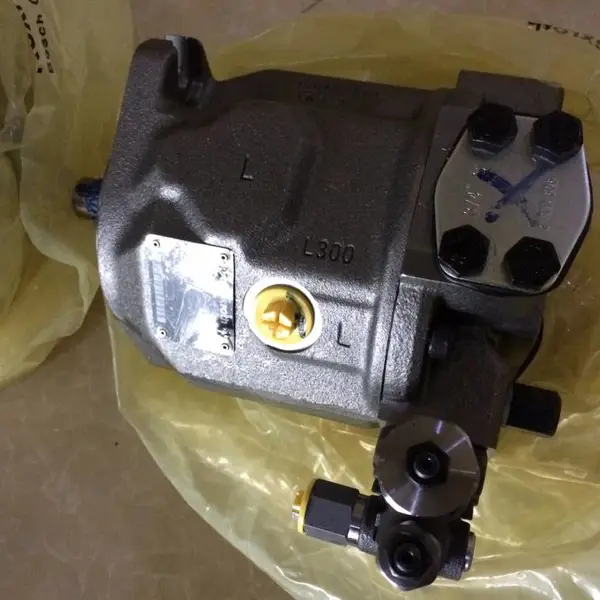

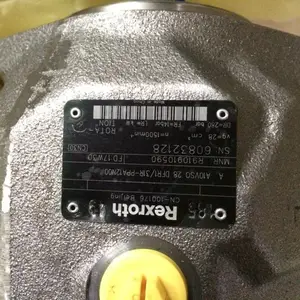

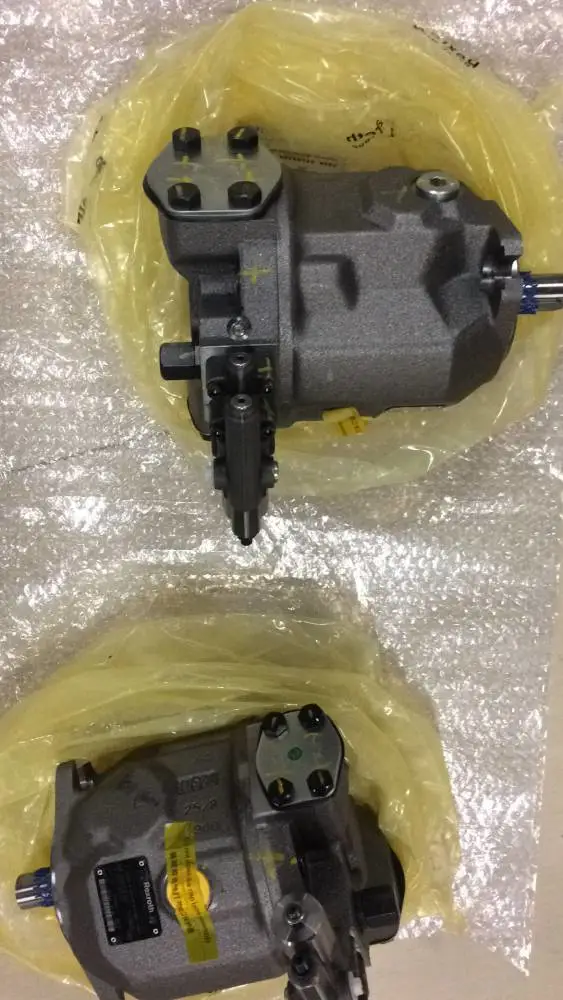

德国力士乐A10VSO28DFR1/31R-PPA12N00柱塞泵

本产品适应于开式回路液压系统装置，基本原理为盘式柱塞泵结构。产品具有压力、流量可调节的特性，同时在工作中压力可以保持恒定、因此该泵也成为恒压变量柱塞泵。

A10VSO28DFR1变量泵结构特点：

性能指标随着科学技术的不断发展，现代设备的自动化水平越来越高。而液压传动及控制系统以其传递功率大、控制精度高、响应速度快、易于实现机电液一体化控制等优点，被广泛应用于各行各业中。对作为液压系统动力源--恒压变量柱塞泵的要求也愈来愈高。通常被选用型号包括A10VSO28DFR1/31R-PPA12N00、AA10VSO28DFR1/31R-PPA12N00。

产品结构及工作原理：

从结构图中可见，压力油通过通道a、b、c、进入变量壳体下腔d，由此通过通导e分别进入通导f、h，当弹簧的作大于通道f进入伺服下端弧形面积的液压推力时，伺服压在下端，压力油经h进入上腔g，推动向下，变量头偏角增大，泵的流量。反之当泵的压力克服弹簧力使伺服向上运动时，堵塞通道h，使g腔通过通道i而卸压。此时变量在下腔d的液压力作用下上移，变量头偏角减小，泵的流量。油液的进出通过泵体和配流轴上的流道，并由配流轴上吸油口控制，泵产生的液压力被静压平衡的表面所吸收。副的静压平衡采取了过平衡压力补偿，形成了开环控制。支承驱动轴的轴承只起支承作用，不受其他外力的作用。

A10VSO28DFR1/31R-PPA12N00REXROTH变量泵产品使用维护事项：

1、平时使用注意保持液压油的清洁度

2、每次停机后需要待系统冷却后再拆卸清洗

3、油泵启动前液压管路及油箱内液压油清洁度应优于***标准17/14级或NAS标准8级。

4、新泵初次使用的时候要注意排空泵内空气，注入满液压油，避免空转。

塞泵是由几个柱塞（一般为3个或6个）并列安装，用1根曲轴通过连杆滑块或由偏心轴直接推动柱塞做往复运动，实现吸、排液体的液压泵。它们也都采用阀式配流装置，而且大多为定量泵。煤矿液压支架系统中的乳化液泵一般都是卧式柱塞泵。

A10VSO型号选型参考详解：

举例型号：A10VSO18DFR1/31R-PPA12N00

A10VS→斜盘式变量泵，此系列工业驱动用，公称压力 28MPa，*高压力35MPa；

O    →运行方式，此系列用于开式回路系统；

18   →排量规格此型号为18m3（另有10、28、45、71、100、140等常见规格排量）

DFR1 →控制机构，（DG表示两位控制直接驱动；DR(G)表；示压力控制远程控制；DFR（1）压力/流量控制 ；带有1指在X油路无小孔；DFLR压力/流量/功率控制；FHD流量       控制，和先导压力有关带压力控制；FE1**流量电控；DFE1**压力/流量电控；ED电液压力控制）；

31   →产品系列

R    →转动方向（R顺时针，L逆时针）

P    →密封（P指带FKM轴封的NBR(丁晴橡胶，符合DIN *** 1629),V指FKM(佛橡胶，符合DIN *** 1629)）

P    →轴端（P指带键直轴 DIN 6885,S指花键轴SAE,R指花键轴SAE(较高的通轴驱动转矩)）；

A    →安装法兰孔（A指*** 2孔，B指*** 4孔）；

12   →工作油口连接，{压力油口B 吸油口S}在相反方向 ，SAE油口米制固定螺钉；

N00  →通轴，（N00无通轴驱动；有通轴驱动带轴向泵、齿轮泵回径向柱塞泵KB2、K51、KB3、K01等等）

常用型号如有：

A10VSO10DR/52R-PPA14N00

A10VSO18DFR131R-PPA12N00

A10VSO28DFR131R-PPA12N00

A10VSO45DFR131R-PPA12N00

A10VSO71DFR131R-PPA12N00

A10VSO140DFR131R-PPB12N00

A10VSO45DFR132R-VPA22U99

A10VSO71DFR132R-VPA22U99

A10VSO100DFR132R-VPB12N00

A10VSO140DFR132R-VPB12N00

A10VS018DR/31R-PPA12N00

A10VSO18DFR1/31R-PPA12N00

A10VSO18DFR1/31R-PPB12N00

A10VSO18DFR1/32R-VPB12N00

A10VG18HD1/10L-NSC16N003E

A10VSO18DFR1/31R-PPA12N00

A10V028DR/31R-PSC12N00

A10VS028DR/31R-PPA12N00

A10VSO28DR/32R-VPB121N00

A10VSO28DFR/31R-PSA12N00

A10VSO28DFR1/31R-PPA12N00

A10VSO28DFR1/32R-VPB12N00

A10VSO28DRF1/31R-PSA12N00

A10VSO28DFR1/31R-PPA12N00

A10VSO28DR/31R-PSC12N00

A10V028DR/31R-PSC62K01

A10V028DFR1/31R-PSC62N00

A10VS028DR/31L/PPA12G20+1PF2G2

A10V028DFR/31L-PSC12K01+

A10VSO45DFR1/31R-PPA12N00

A10VSO45DFR1/32R-VPB12N00

A10VSO45DR/31R-PPA12N00

A10VSO45DR/31R-PPA12K25

A10VSO45DFR1/31R-PPA12N00

A10VSO58DFR1/31R-PPA12N00

A10VS045DFR1/31RPPA12NOO

A10VSO45DFR1/31R-PPA12N00

A10VS045DFR/31R-PPA12NOO-SO32

A10VS045DR/31R-PPA12N00

A10VS045DR/52R-PC12N00

A10V045DFR1/31R-PSC62K02

A10VSO45DFR1/31R-PPA12N00

A10VS045DR/31RPPB12-NDD

A10VO45DFR1/31R-PSC62K02

A10VSO71DFR1/32R-VPB22U99

A10VSO71DFR1/31R-PPA12N00

A10VSO71DFR1/32R-VPB12N00

A10VSO71DFR1/31R-PPA12KB5

A10VSO71DFR/31R-PSC62K07

A10VO71DFRI/34 PSC6402-S0225

A10VSO71FR1/31R-PPA12N00

A10VSO71DFR1/31R-PPB12NOO

A10VSO71DFR1/31R-PPA12N00

A10VO71DFR1/31RPSC62K07

A10VSO71DFR/31R-PPA12KB3

A10VS071DR/31R-PPA12N00

A10VS071DFR/31R-PPA12N00

A10VS071DFR1/31R-PPA12N00

A10VSO71DFR1/31R-PPA12N00

A10VSO71DFR1/32R-VPB22U99

A10VSO71DR/31R-PPA12N00

A10VS0100DR/31R-PPA12N00

A10VS0100DR/32R-VPB22U99

A10VSO100DFR1/32R-VPB12N00

A10VSO100DFR1/31R-PPA12K

A10VSO100DFR1/31R-PPA12KB3

A10VSO100PFR1/31R-PPA12N00

A10VSO100DFR/31RPSB12K24

A10VSO100DR/31R-VPA12N00

A10VSO100DR/31R-PPA12N00

A10VS0100DFR1/31R-PPA12N00

A10VS0100DFR1/32R-VPB12N00

A10V0100DR/31R-PSC11N00

A10VS0100DR/31R-PTA12N00

A10VSO100DR/31R-PPA12N00

A10VSO100DFR1/32R-VPB12N00

A10VSO140DFR1/31R-PPB12N00

A10VSO140DFLR1/31R-PPB12KO1

A10VSO-140DR/31R-PPB12N00

A10VSO140DFR1/31R-PPA12N00

A10VSO140DFR1S/31RPPB12N0

A10VSO140DFR1/31R-PPB12N00

A10VS0140DFLR/31R-PPB12N00

A10VSO140DR/31R-PPB12N00

A10VS0140DRS/32R-VPB12N00

A10VSO140D/31R-PPB12N00

A10VSO140DFR1/31R-PPB12N00

A10VS0140DR/32R-VPB12N00

A10VSO140D/31R-PPB12N00

A10VSO140DR/31R-PPB12N00

A10VSO140DRS/32R-VPB12N00

A10VSO140DFR1/31R-PPB12N00

A10VSO140DFR1/32R-VPB12N00

A10VSO140DRS/32R-VPB12N00
