| 产品特性：自动点料 | 加工定制：否 | 品牌：VJ |
| 型号：XQuik II | 用途：X光自动点料 | components：01005 |
| External Dim：42.5“ x 30“ x 40“ | Chamber Size：16.25“ x 16.25“ x 6“ |
XQuik II 点料机X光，美国伟杰VJ的X光自动点料机
XQuik II X光点料机 来自美国VJ

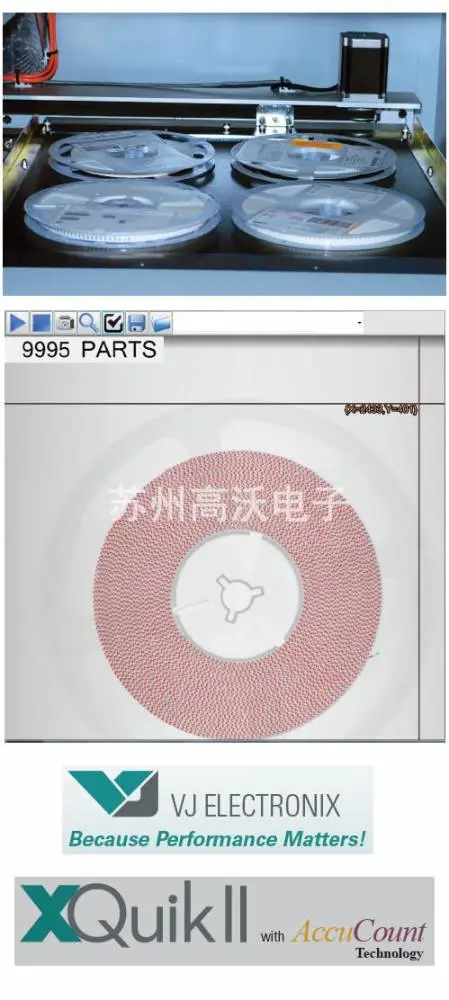

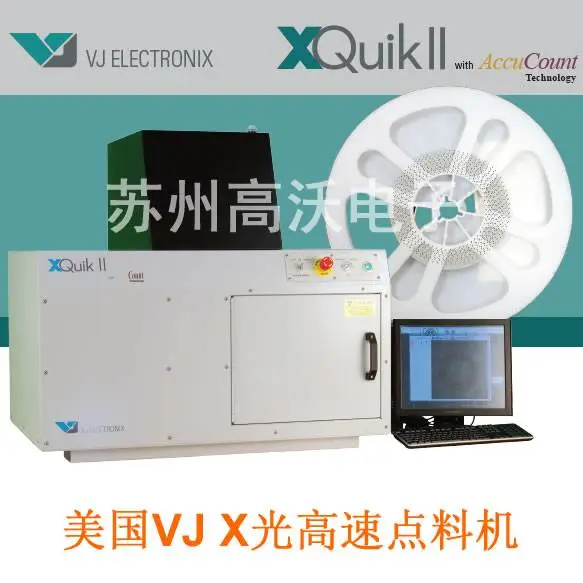

XQuik II is a compact benchtop X-ray inspection system for inspecting small items with varying density. Now, with AccuCount technology, the XQuik II is even more versatile allowing for component reel counting in just seconds.
? Compact size: Small in size, but not capability. XQuik II occupies much less space than typical X-ray inspection systems.
? Simple, intuitive image sharing: storing and sharing images via cloud or any storage of your choice to provide access to multiple people at once.
? Quick image processing: Intuitive Vi3 imaging software captures images in no time and releases them to the user to identify defects.
? Easy set-up and use: Installation is quick and easy, eliminates long hours for training operators.
Key Features

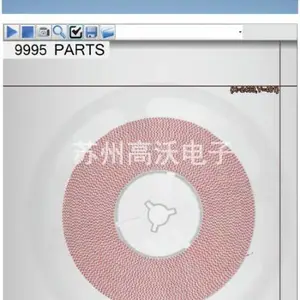

? Automatically “counts” components as small as 01005
? Counts 7" to 15" reels
? One button operation
? Reduce cycle times
? Integrated barcode printing
? Connect to MES for seamless inventory control
? Substantially speed up part counting process
? >*** part count accuracy
? May also be used for electronics inspection
Cabinet Dimensions
External Dimensions: 42.5" x 30" x 40"
Chamber Size: 16.25" x 16.25" x 6"
Viewable Area: 16" x 16"
? Imaging Station
Image resolution: 54μ pixel pitch
Line pair resolution: 7 Ip/mm
? Imaging Software Features
Image archiving
Window leveling
Digital zoom
Annotations
? X-ray Specifications
Beam orientation: Top, Down
Normal Anode Voltage: 40–80 kV
Normal maximum anode current: 0.7mA
苏州高沃电子为了进一步服务好汽车电子、高铁、航电、***、5G等行业，主要提供以下解决方案：
1.美国DATA I/O的汽车电子芯片全自动烧录器，DATA I/O是的编程烧录设备生产商，成立于1972年，生产了***台编程器，并与1982年在美国纳斯达克上市。主要有PSV7000，PSV5000，PSV3000，PSV2800，ROADRUNNER，FLASHPAK III，PS588，LumenX，FlashCore，ConneX。
2.日本I-BIT (原松下X光事业部)3D-Xray检测设备，用3D-***CT断层扫描高速检测出2D-X光机无法检测出的焊接缺陷：双面贴装基板、BGA虚焊空焊、接插件通孔透锡不良、IGBT焊接空洞、堆叠封装芯片等等。高速***CT分层检测对产品可靠性有***提高，在产品出厂之前发现隐蔽缺陷，致召回成本和不良率降到***。主要产品有:
在线3D-***断层扫描自动检测系统：ILX-1100，ILX-2000
离线3D-***高速断层扫描检测系统：FX-300tRX，FX-400tRX
3.美国VJ SRT返修台，X-Ray点料机。主要产品：Summit 1800i，Summit 750i，VJE XQuik AccuCount，VJE XQuik II with AccuCount。
