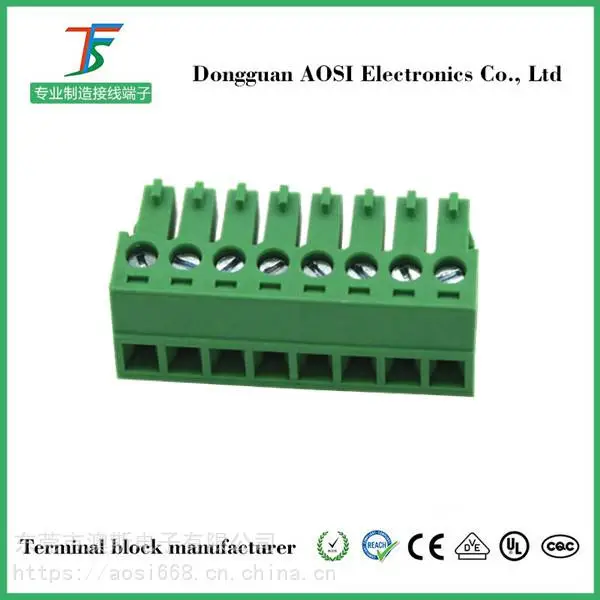

产品型号：FPC1.5-XX-350/381-00

认证(APPROVAL):CE CQC UL

测试标准(Test standard):IEC/EN61984：2009 / UL1059

产品间距(Pitch):3.5/3.81mm

极数(Poles):02-24P

额定电压(Rated voltage):250V

额定电流(Rated current):7A

额定连接容量(Rated connection capacity)(solid/stranded):1.5mm2

额定冲击电压(Rated impulse voltage):2.5KV

额定扭矩(Rated torque):0.2N·m

UL1059测试数据（UL1059Test data):UL File Number E509821

额定电压(Rated voltage):300V

额定电流(Rated current):8A

额定连接容量(Rated connection capacity) (solid/stranded):28-16AWG

额定扭矩（Rated torque）:1.77Lb. in

通用数据(General data) /

螺丝(Screw):M2

阻燃等级(Inflammability class):UL94 V-0

环境温度(Ambient temperature):-40~+105℃

相对湿度(Relative humidity):5%-95%

抽样检验标准(Inspection standard）:MIL-STD-105E II

允收水准(AQL):0.65

保质期(Warranty):12 months

材质和电镀(Material and plating) /

绝缘材质(Housing):PA66

螺丝(Screws):Steel，Zn plated钢,镀锌

触点材料(Contact):Copper alloy，Sn plated铜合金，镀锡

方盒(Cage):Copper alloy，Ni plated铜合金，镀镍

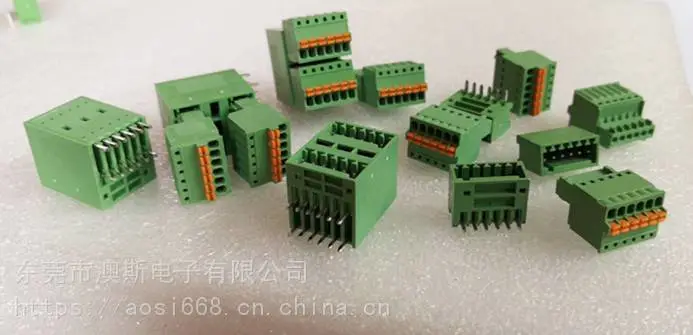

澳斯插拔式接线端子在设计上结合了维护简便和可插拔两大优点，款式多且可进行各种不同

组合，可以连接多种类型的导线，间距分位3.5mm  3.81mm 3.96mm 5.0mm  5.08mm 7.5mm

7.62mm可供选择，适用于工业电子设备，电力，医疗设备等。

接线方法 (Wire connecting)

推荐剥线长度6-7mm; Recommended stripping length 6-7mm;

1.）单股硬导线，剥好对应长度的导线后，用额定的扭力拧紧；

For solid wire, stripping wire to the appointed length, then tightening with rated torque.

2.）多股柔性导线，剥好对应长度的导线后，可以直接连接或者配套使用对应标准规格的冷压端头，用额定的扭力拧紧；

For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque.

注意事项：扭力要平稳，不能使用爆发力；( Tightening process should be steady, can’t use explosive force.)
