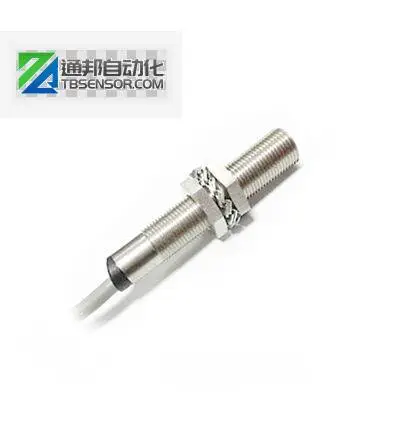

general data

version

full metal

sensor type

differential hall sensor

working distance max.

<1 mm (module 1), <2,5 mm (module 3)

min. gear size

> module 1

gear width

> 6 mm

gear material

ferromagnetic

electrical data

switching frequency range

1 … 20 kHz

voltage supply range +Vs

8 … 28 VDC

current consumption max. (no load)

20 mA

output A

PNP

output B

none

output current

<30 mA

voltage drop Vd

<3 VDC

short circuit protection

yes

reverse polarity protection

yes, Vs to GND

mechanical data

type

cylindrical threaded

housing material

stainless steel

dimension

12 mm

housing length

60 mm

installation aid

keyway

connection types

cable FEP, 2 m

front of sensor durable against pressure

20 bar

ambient conditions

operating temperature

-40 … +120 °C

protection class (sensing face)

IP 68

protection class (sensor)

IP 67

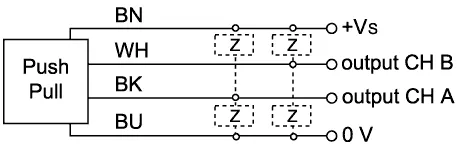

Drawings
