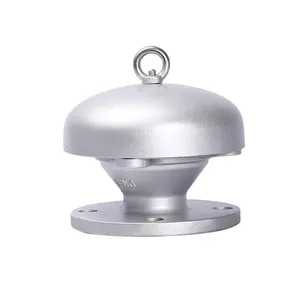

TQM-1型阻火透气帽

防爆阻火透气帽（TQM型） Explosion Prof & Flame Arrester-vent Cage

防爆阻火透气帽“设备材质” Materials of construction：

注：连接标准：HG、GB、ANSI、JIS、DIN等等.

Standard Connection：HG、GB、ANSI、JIS、DIN、ect.

操作压力：0.6-5.0Mpa （150Lb-600Lb）

Operating Pressure：0.6-5.0Mpa （150Lb-600Lb）

防爆阻火透气帽“尺寸表” Dimension table：

防爆阻火透气帽“订货须知” Order Construction：

1、订货时请注明产品尺寸、操作压力及材质。

Please give clear indication of Dimension，operating pressure and material.

2、当需要其他标准法兰、材质或操作压力时请在订货时注明。

Please give clear indication of flange,material and operating pressure if you need other standard.

防爆阻火透气帽“常见连接方式”　common connection

1、 螺纹连接。

Threaded connection

2、 连接法兰。

The connecting flange

防爆阻火透气帽“相关描述” 　related description

1. 防爆阻火透气帽是一类阻止火焰蔓延以及防止回火引起的安全设备；

Explosion-proof fire resistance ventilation cap is a kind of preventing the spread of flame and prevent security equipment caused by tempering.

2. 防爆阻火透气帽通常装在输送或排放气体的储罐和管线上；

Explosion-proof fire resistance ventilation cap is usually installed in the transmission or exhaust gas tanks and pipelines.

3. 本公司已经申请防爆阻火透气帽的相关***；

The company has applied for patents related to the explosion-proof fire resistance ventilation cap.

4. 本公司的防爆阻火透气帽的技术规格已经达到欧美发达国家的技术水平。

Explosion-proof fire retardant our breathable technical specification cap hasreached the technical level of developed countries in Europe and America.
