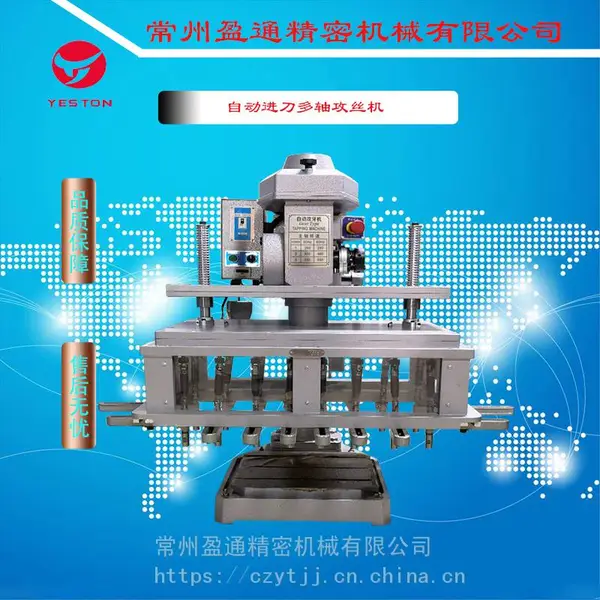

自动进刀攻丝机式是电机驱动牙距齿轮带动主轴进行等螺距进给、退刀；加工螺纹精度高，可轻松通过通止规检测。

The automatic feed tapping machine type is that the motor drives the pitch gear to drive the spindle to feed and withdraw the cutter with equal pitch; the thread processing precision is high, and it can easily pass the go / no go gauge detection.

机器具备以下优点：

The machine has the following advantages:

可作高速连续循环运转，特殊马达能持久耐用，可实现自动化，一人可以同时操作多台设备，可***节约劳动力成本！

It can be used for high-speed continuous cycle operation, special motor can last for a long time, automation can be realized, one person can operate multiple equipment at the same time, which can significantly save labor cost!

工作原理：正转---反转---正转---反转……的连续循环和正转---反转---停止的单向循环有特定的按键开关来操作，还可以安装脚踏开关，进行选择性操作，连续、单向、循环都能自动。操作者双手完全可以离开机器，实现自动工作，初学者也可以顺利操作。

Working principle: forward - reverse - forward - reverse The continuous cycle and forward - reverse - stop one-way cycle can be operated by a specific key switch. Foot switch can also be installed for selective operation. Continuous, one-way and cycle can be automatic. The operator can leave the machine with both hands completely, realize automatic work, and the beginner can operate smoothly.

高精密攻牙行程调整简单，自动反转装置能自由调整攻牙行程，浅孔和有孔低加工件也能容易调整，双重安全装置能防止螺丝攻之损坏，主轴回转与上下、进退刀特设双重安全离合器，主轴能自动停止，逆转退刀也不会损坏刀具。

High precision tapping stroke adjustment is simple, automatic reverse device can freely adjust tapping stroke, shallow hole and low machining parts with hole can also be easily adjusted, double safety device can prevent damage of screw tapping, the spindle rotation and up and down, advance and retreat knife special double safety clutch, the spindle can automatically stop, reverse retreat knife will not damage the knife.

牙距A、B齿轮配合A、B转轴与主轴依牙距推进完全配合，垂直稳定、***、精密度特别高，螺丝攻牙时前进与后退不必出力就能运转自如。而同时决定于优良的加工物品，不会造成粗细不同螺纹，针对薄板和轻合金属，合成树脂等软质品也能攻出***螺纹。同时还可以配置多轴器进行多轴同步加工，生产效率大大提高。

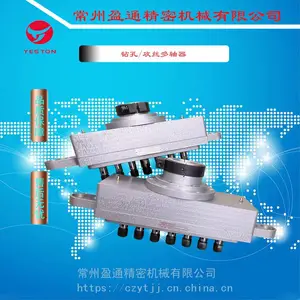

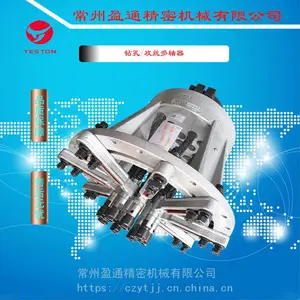

The pitch a and B gears are fully matched with the pitch a and B rotating shafts and the main shaft. They are vertical, stable, accurate and highly precise. When tapping, they can move freely without any force. At the same time, it is determined by excellent processing items, which will not cause different threads in thickness. For thin plates, light alloy metals, synthetic resins and other soft products, it can also make perfect threads. At the same time, it can also be equipped with multi axis machine for multi axis synchronous processing, which greatly improves the production efficiency.
