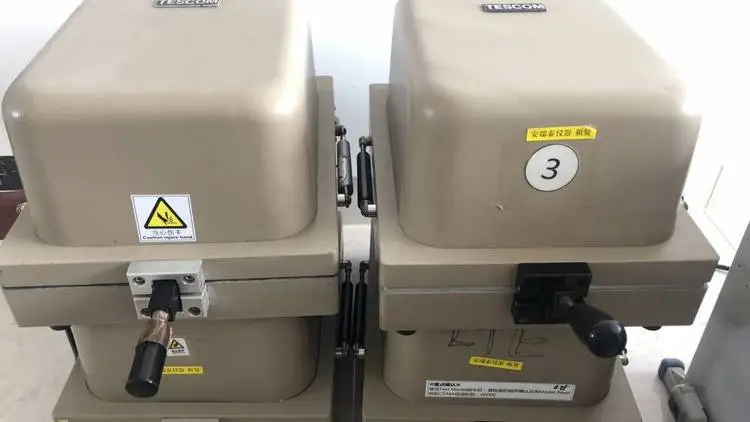

宽带支持的范围从100到6000兆赫的TESCOM屏蔽箱可应用于当前和未来的无线通信技术，如GSM、WCDMA、WiMAX、LTE、卫星导航、蓝牙和Wi-Fi。因此，该屏蔽盒可用于不受限制的多频带的移动设备测量，并且在所有频带中保持稳定和屏蔽性能，是移动设备测量的理想选择。

特点：

High RF Shielding
Easy Opening/Closing of lid
EMI filters on all Data and DC lines
Easily customizable to meet various test needs
Shock absorber on lid

频率/屏蔽效能（dB）

• Frequency / Shielding effectivness (dB)

• 100 to 2000 MHz : > 70 dB

• 2000 to 3000 MHz : > 70 dB

• 3000 to 6000 MHz : > 60 dB

•

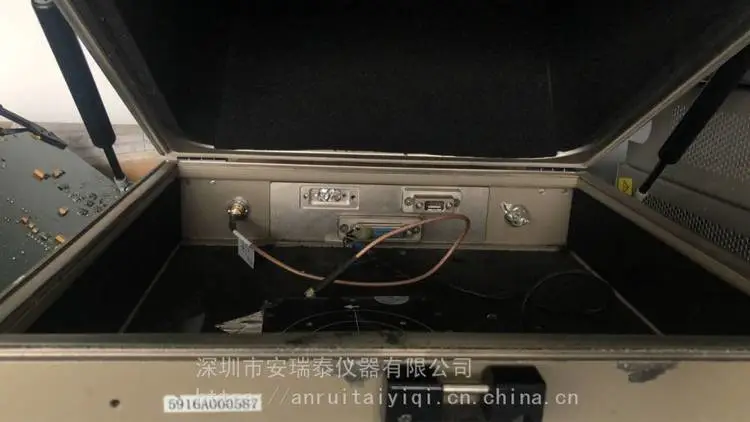

  I/O接口选配




• Basic I/O connectors

• Dimensions

• RF connectors : two(2) N(f) outside and SMA(f) inside

• Inside : 328(W) x 303(D) x 221(H) mm

• Outside : 399(W) x 473(D) x 239(H) mm, lid closed. 495(H) mm, lid open.


• Weight :Approx.10 kg

• Packing(The size or weight of a package may vary on how to pack a package.)

• Size : 460(W) x 528(D) x 335(H) mm

• Weight : Approx. 11 kg

•


  Mechanical Specifications
















※ M591542B Data Interface Panel

two(2) N(f) outside and SMA(f) inside

one(1) DB9(p) outside and DB9(s) inside, 1000 pF Pi filter

one(1) USB 2.0 outside and inside

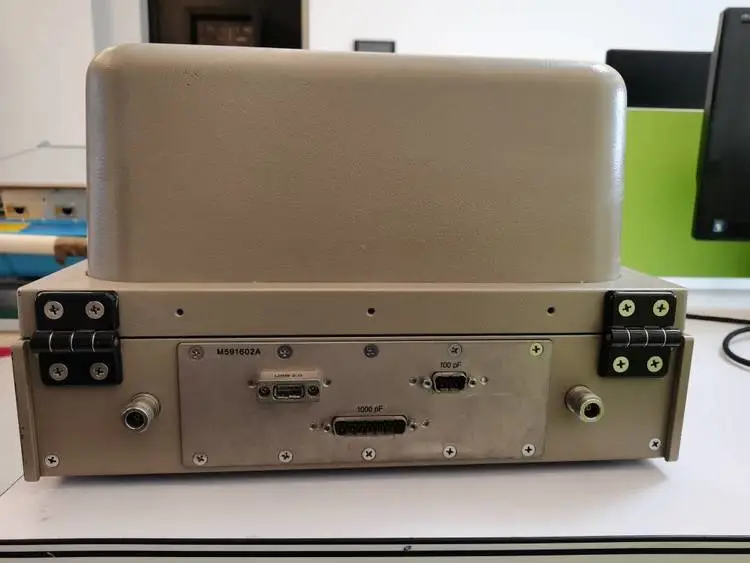

※ M591502B : Data Interface Panel

two(2) N(f) outside and SMA(f) inside

one(1) DB25(p) outside and DB25(s) inside, 1000 pF Pi filter

one(1) DB9(p) outside and DB9(s) inside, 1000 pF Pi filter

※ M591502D : Data Interface Panel

two(2) N(f) outside and SMA(f) inside

one(1) DB25(p) outside and DB25(s) inside, 1000 pF Pi filter

two(2) USB 2.0 outside and inside

※ M591534B USB 2.0 Side Interface Panel

one(1) USB 2.0 outside and inside

※ M591532A DC Power Side Interface Panel

one(1) DC Power Adaptor

定制I/O接口面板

定制的I/O接口面板是可用的。

Filtered D-Sub Adaptors

DB9 100PF, 3409-0010-1

DB9 1000PF, 3409-0008-1

DB25 100PF, 3409-0014-1

DB25 1000PF, 3409-0009-1

DB37 1000PF, 3409-0012-1

※ Filtered Data Adaptors

USB 2.0 Adaptor, 3409-0018A-3

USB 3.0 Adaptor(Active), 3409-0042A-1

RJ-45 Adaptor, 3409-0022A

※ Filtered Power Adaptors - AC/DC

DC Power Adaptor, 3406-0004A

DC Power Adaptor, Banana Jack Type, 3406-0006A

AC Power Adaptor, 3103-0009A

※RF Feedthrough Connectors

N(f) to SMA(f) Connector, 3408-0038

SMA(f) to SMA(f) Connector, 3408-0039

固定装置

※ F59154A : Cordination Fixture

140(W) x 210(D) x 11(H)

Antenna Coupler: TC-93023B, TC-93026A
