SPECIFICATIONS
Input Freq. Range: 0 to 400 Hz (sinewave)
Accuracy: 卤0.5% of reading

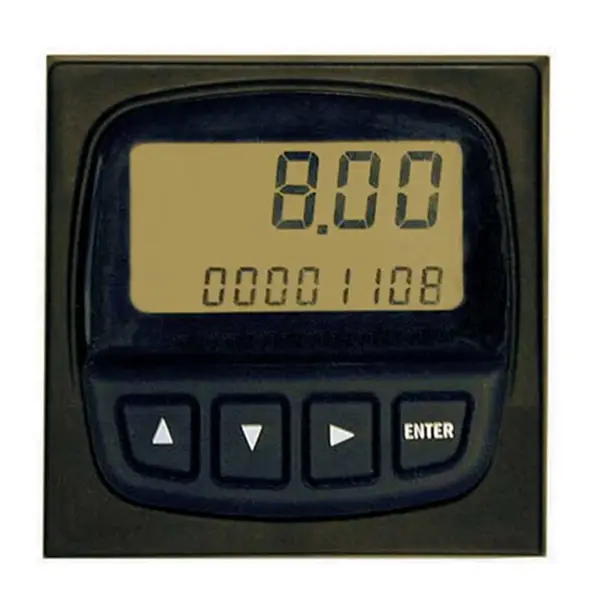

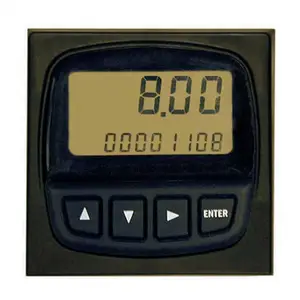

Display: LCD type
4-Digit Upper Line: Flow rate
8-Digit Lower Line: Volume totalizer count, resettable and permanent
Averaging: 0 to 120 seconds
Contrast: Automatic
Low Battery Indication: Battery symbol appears on LCD display
8-Digit Resettable Totalizers Stored Until User Resets: Continues to be stored even after batteries are removed
8-Digit Permanent: Kept permanently, even when batteries are removed
Enclosure: PBT resin
Keypad Material: Sealed 4-key silicon rubber
Panel Case Gasket: Neoprene庐
Window: Polyurethane coated polycarbonate
Battery: Two "AA" 3.6V Lithium thionyl chloride (included)
Battery Life: 4 years nominal 鈮�50掳C (122掳F)
Enclosure Rating: NEMA 4X (IP65) front
Operating Temperature: -10 to 65掳C (14 to 149掳F)
Storage Temperature: -40 to 100掳C (-40 to 212掳F)
Relative Humidity: 0 to 95% non-condensing
Shipping Weight: 0.5 kg (1.1 lb)
Dimensions: For panel version, cutout must be 92 x 92 mm2 (3.62 x 3.62")
Compatible Sensors: FP-5300/5100, FP-5200, and FP-6000, and FP-5600 (see related links below)
