BMWS8151-8.5德国turck图尔克M12 圆形连接器货号6904721价格

品牌：turck图尔克	是否进口：否	产地：USA
系列：BMW%	型号：BMWS8151-8.5	额定电流：见说明
额定电压：见说明	孔位数：5芯	环境温度：见说明
壳体材质：金属	导电体材质：见说明	产品认证：见说明
尺寸：见说明	额定功率：见说明	适用范围：见说明
重量：见说明	净重：见说明	最小包装数：1
颜色：见说明	产品特性：金属外壳

展开

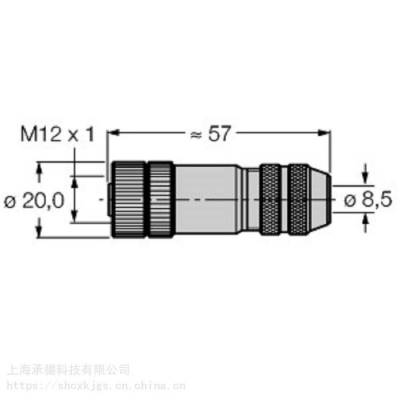

BMWS8151-8.5德国turck图尔克M12 圆形连接器货号6904721

产品 BMWS8151-8.5

M12 圆形连接器

现场接线型接插件

母头接插件，M12 × 1，直型

订货号： 6904721

用于 PROFIBUS-DP 应用

可达12 Mbps

通过弹簧片实现屏蔽

B编码

金属外壳

接线端子

5芯

M18 x 1螺纹

线缆直径6.0…8.5 mm

6905404 1 HA5131-0 Female Straight 3 2.5…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905405 1 HA5141-0 Female Straight 4 2.5…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905402 2 HAS5131-0 Male Straight 3 2.5…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905403 2 HAS5141-0 Male Straight 4 2.5…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6901030 3 B5133-0 Female Straight 3 3.5…5.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6901031 3 B5143-0 Female Straight 4 3.5…5.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6901012 4 BS5133-0 Male Straight 3 3.5…5.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6901013 4 BS5143-0 Male Straight 4 3.5…5.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6904910 5 B5131-0 Female Straight 3 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6904915 5 B5141-0 Female Straight 4 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6901010 6 BS5131-0 Male Straight 3 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6901011 6 BS5141-0 Male Straight 4 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6904810 7 B5231-0 Female Angled 3 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6904815 7 B5241-0 Female Angled 4 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6901110 8 BS5231-0 Male Angled 3 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6901111 8 BS5241-0 Male Angled 4 3.5…5.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc –

6902700 9 H5131-0 Female Straight 3 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902720 9 H5141-0 Female Straight 4 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902710 10 HS5131-0 Male Straight 3 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902730 10 HS5141-0 Male Straight 4 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902800 11 H5231-0 Female Angled 3 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902820 11 H5241-0 Female Angled 4 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902810 12 HS5231-0 Male Angled 3 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6902830 12 HS5241-0 Male Angled 4 4.0…5.0 mm 0.14…0.34 mm Piercing technology Plastic Zinc-Aluminum

6905407 1 HA8141-0 Female Straight 4 4.0…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905406 2 HAS8141-0 Male Straight 4 4.0…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905401 3 HA8241-0 Female Angled 4 4.0…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905400 4 HAS8241-0 Male Angled 4 4.0…5.1 mm 0.14…0.34 mm IDC Plastic Brass

6905409 5 HA8141-16 Female Straight 4 6.0…8.0 mm 0.34…0.75 mm IDC Plastic Brass –

6905408 6 HAS8141-16 Male Straight 4 6.0…8.0 mm 0.34…0.75 mm IDC Plastic Brass –

69049 7 B8141-0 Female Straight 4 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904601 7 B8151-0 Female Straight 5 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

69048 8 B8241-0 Female Angled 4 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904602 8 B8251-0 Female Angled 5 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904901 7 B8141-0/PG9 Female Straight 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904604 7 B8151-0/9 Female Straight 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904801 8 B8241-0/PG9 Female Angled 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

6904603 8 B8251-0/9 Female Angled 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Plastic

69010 9 BS8141-0 Male Straight 4 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

6904611 9 BS8151-0 Male Straight 5 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

69011 10 BS8241-0 Male Angled 4 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

6904612 10 BS8251-0 Male Angled 5 4.0…6.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

6901003 9 BS8141-0/PG9 Male Straight 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

6901103 10 BS8241-0/PG9 Male Angled 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc –

6904615 10 BS8251-0/9 Male Angled 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc

6904605 11 B8181-0 Female Straight 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6901004 12 BS8181-0 Male Straight 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6934339 13 B8281-0 Female Angled 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc –

6930862 14 BS8281-0 Male Angled 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Plastic Die-cast zinc

6604052 1 B81121-0/PG9 Female Straight 12 6.0…8.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc –

6604053 2 BS81121-0/PG9 Male Straight 12 6.0…8.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc –

6936122 4 BS82121-0/PG9 Male Angled 12 6.0…8.0 mm 0.14…0.25 mm Solder contact Plastic Die-cast zinc

6933589 2 BMS8141-0 Male Straight 4 2.5…3.5 mm 0.25…0.75 mm Screw terminal connection Plastic Die-cast zinc –

6935145 1 BM8141-0 Female Straight 4 4.0…6.0 mm 0.25…0.75 mm Screw terminal connection Plastic Die-cast zinc

6935888 1 BM8151-0 Female Straight 5 4.0…6.0 mm 0.25…0.75 mm Screw terminal connection Plastic Die-cast zinc

6935889 3 BM8241-0 Female Angled 4 4.0…6.0 mm 0.25…0.75 mm Screw terminal connection Plastic Die-cast zinc

6935890 3 BM8251-0 Female Angled 5 4.0…6.0 mm 0.25…0.75 mm Screw terminal connection Plastic Die-cast zinc

6936159 1 BM8141-0/PG9 Female Straight 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc –

6604162 1 BM8151-0/PG9 Female Straight 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Plastic Die-cast zinc –

6930375 5 CMB8141-0 Female Straight 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc

6930145 5 CMB8151-0 Female Straight 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc

6931450 5 CMB8181-0 Female Straight 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Die-cast zinc Die-cast zinc

6930792 6 CMBS8181-0 Male Straight 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Die-cast zinc Die-cast zinc

6604005 6 CMBS8141-0 Male Straight 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc

6930161 6 CMBS8151-0 Male Straight 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc

6932405 7 CMB8241-0 Female Angled 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc –

6930215 7 CMB8251-0 Female Angled 5 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc

6932024 7 CMB8281-0 Female Angled 8 6.0…8.0 mm 0.14…0.5 mm Screw terminal connection Die-cast zinc Die-cast zinc

6932581 8 CMBS8241-0 Male Angled 4 6.0…8.0 mm 0.14…0.75 mm Screw terminal connection Die-cast zinc Die-cast zinc –

6930216 8 CMBS8251-0 Male Angled 5 6.0…8.0 mm 0.14…0.75 mm Screw terinal connection Die-cast zinc Die-cast zinc
