双向导向
紧凑的设计，不受安装方向的影响

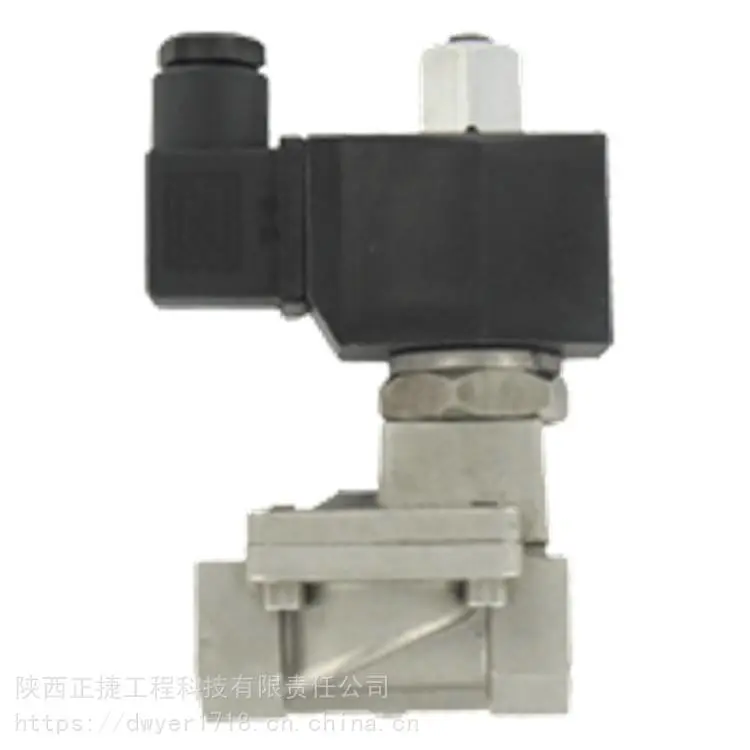

SSV-S系列电磁阀是用于空气、气体、水和其他液体应用的紧凑型通用双向导向型电磁阀。它们采用不锈钢材质，常开设计，可在任何位置定向。电磁阀外壳提供防尘保护，同时也防止油和非腐蚀性冷却液渗漏。SSV-S系列阀门装配有氟橡胶密封件，工艺温度为248°F（120°C）。该系列提供了广泛的阀门尺寸和流量范围，连接尺寸从1/8“到2”NPT，孔口从3 mm到50 mm。
产品应用
用途广泛，适用于空气、气体、水和其他液体
特征
可以在任何位置定向
紧凑型设计
现场可更换线圈

Service:Compatible gases and liquids.

Line Size:1/8 to 2" NPT.

End Connections:Female NPT.

Operating Pressure:1/8 to 1/4": 0 psi (0 bar) to 87 psi (6 bar); 3/8 to 2": 7.3 psi (0.5 bar) to 116 psi (8 bar).

Pressure Limit:174 psi (12 bar).

Wetted Material:Body: 316 SS; Spring: 304 SS; Seal: Fluoroelastomer.

Temperature Limits::Process: 248°F (120°C); Ambient: 32 to 149°F (0 to 65°C).

Power Requirements:Standard: 110 VAC; Optional: 220 VAC; 24 VDC consult factory. See Series SRC Solenoid Coils.

Power Consumption:See table on catalog page.

Enclosure Rating:NEMA 13 (IP54).

Electrical Connection:DIN connection.

Other Materials:Nylon.

Mounting Orientation:Any position, best if solenoid vertically above valve.

Weight:See table on catalog page.

Type of Operation:NO.

Agency Approvals:CE.

Model    Description
SSV-S1F1    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 110 VAC
SSV-S1F2    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 220 VAC
SSV-S1F3    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VAC
SSV-S1F4    2-way 316SS solenoid valve, 1/8", 0-6 bar, fkm seal, 24 VDC
SSV-S2F1    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 110 VAC
SSV-S2F2    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 220 VAC
SSV-S2F3    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 24 VAC
SSV-S2F4    2-way 316SS solenoid valve, 1/4", 0-6 bar, fkm seal, 24 VDC
SSV-S3F1    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 110 VAC
SSV-S3F2    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 220 VAC
SSV-S3F3    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 24 VAC
SSV-S3F4    2-way 316SS solenoid valve, 3/8", 0.5-8 bar, fkm seal, 24 VDC
