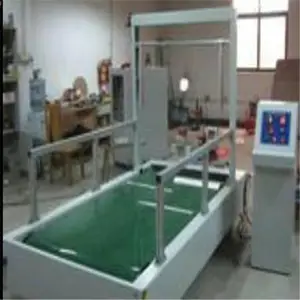

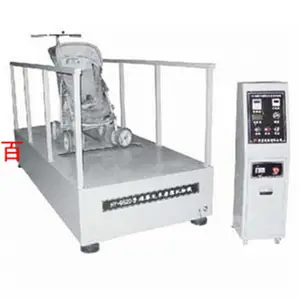

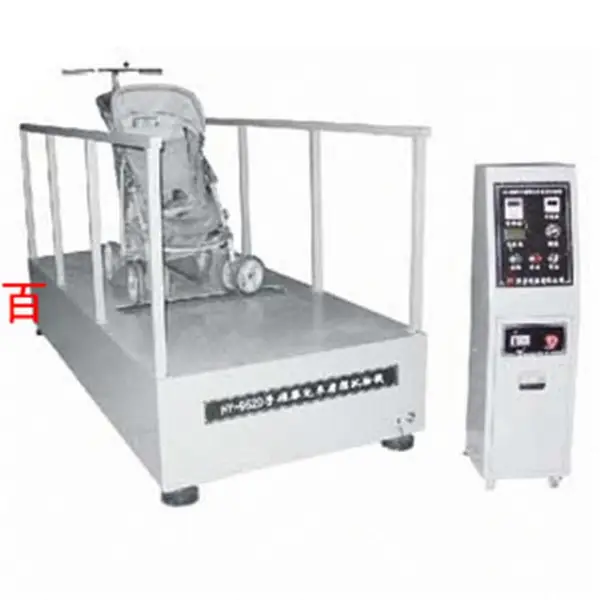

工厂供应婴儿床使用寿命试验机 GB 14748标准

一，本机原理

本机依据符合GB 14748-2006 5.18要求制作。测试方法为置模型婴儿于车台中，将车台固定于测试台上，路况模拟试验，皮带上附有小斜冲击块和障碍块，调整输送带速度(3-5km /h)，左侧与右侧的轮子轮流通过障碍物**次后，目视车台有无损坏。达设定时数，并能自动停止操作，故可24小时操作而无须人员看守。

1、 Local principle

The machine is made according to the requirements of 5.18 of GB 14748-2006. The test method is to place the model baby in the platform, fix the platform on the test platform, conduct road condition simulation test, attach small oblique impact block and obstacle block on the belt, adjust the conveyor belt speed (3-5km / h), and visually check whether the platform is damaged after the wheels on the left and right pass through the obstacle * * times in turn. It reaches the set hours and can automatically stop the operation, so it can be operated for 24 hours without personnel.

 安全保护装置本机并有电眼安全装置，可防止因把手及橡胶束环断裂致使婴儿车失控损坏测试机。安装2种有效试样损坏感应开关，a：掉落物检测感应。b：轮子部件损坏检测感应

二．主要技术参数：

1.机器尺寸:     约3300x1300x1700mm（双工位），机台采用刚性材料焊接，***机台稳定性和耐用性。

2.固定方式：   上下左右织带绑住

3.跳块高度：   12mm和R25mm或定制（铝合金）

4.试验工作：两工位

5.试验速度：5kw/h±0.1kw/h（可调节）

6.驱动方式：以滚轮驱动帆布橡胶输送带作动；皮带防跑偏结构。

7.上下调距：Max300mm

8.有效宽度：Max1000mm

9.控制方式： PLC控制，触摸屏操作。

10.承载负荷：MAX50KG

12.本机电源：AC220功率3KW

13.冲击块形状：梯形、半弧形或***。

备注：若有特殊要求，可依客户需求设计制作

2、 Main technical parameters:

1. Machine size: about 3300x1300x1700mm (double station). The machine is welded with rigid materials to ensure the stability and durability of the machine.

2. Fixing method: bind the upper, lower, left and right webbing

3. Jumping block height: 12mm and r25mm or customized (aluminum alloy)

4. Test work: two stations

5. Test speed: 5kW / h ± 0.1kw/h (adjustable)

6. Driving mode: the canvas rubber conveyor belt is driven by the roller; Belt anti deviation structure.

7. Up and down distance: max300mm

8. Effective width: max1000mm

9. Control mode: PLC control, touch screen operation.

10. Bearing load: max50kg

12. Power supply of the machine: AC220, power 3kw

13. Shape of impact block: trapezoid, semi arc or specified.

Note: if there are special requirements, it can be designed and manufactured according to customer needs
