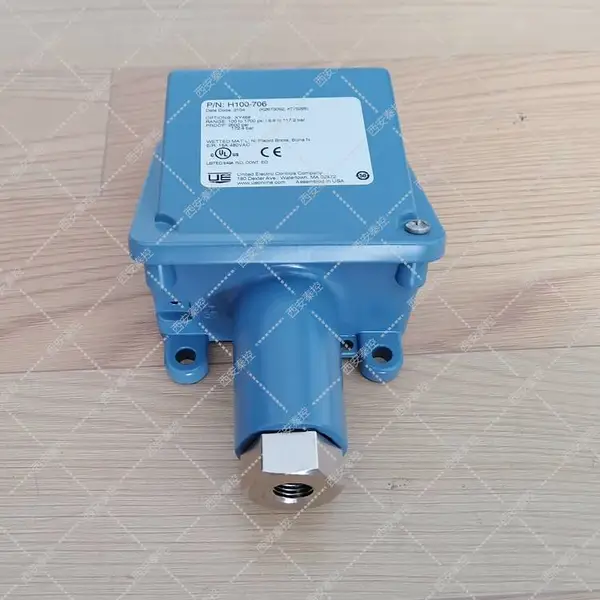

P/N:H100-484-M446/ 0.1-3.4bar美国UE机械式污水防腐压力开关

型号及参数
型号      可调整设定范围                              死区                                  zd压力               耐压**
Model   Adjustable Set Point Range        Deadband                         Over Range            Proof
             Low end of range on fall;                                                       Pressure*             Pressure**
             High end of range on rise range span range span
          psi                       bar                  psi                 bar                       psi       bar           psi        bar
316L stainless steel diaphragm (optional Hastelloy? C or Monel?); Viton? GLT O-Ring (optional Kalrez?, Silicone, Ethylene Propylene, or Aflas?); 316
stainless steel 1/2” NPT (female) pressure connection (optional Hastelloy? C or Monel?), large 0.72” orifice for clean-out purposes. Models 188 and
189 have a 316L stainless steel 1/2” NPT (female) pressure connection (NACE MR-0175 compliant
316L 不锈钢膜片(可选择哈氏合金C，锰乃尔，钽等材质,氟橡胶（Viton）GLT O 型圈（可选Kalrez，硅树脂，
乙丙烯或者是Alflas) 316 不锈钢1/2"NPTF 压力接口（可选哈氏合金B 或C，锰乃尔等材质），0.06"感压孔，
488 及489 型有一个316L 不锈钢1/2"NPTF 压力接口。（符合NACE MR-0175 标准）。
483    1 to 20           0,1 to 1,4         0.3 to 2.5     20,7 to 172,4 mbar    500       34,5       1000     68,9
484    2 to 50           0,1 to 3,4         0.3 to 3        20,7 to 206,8 mbar    500       34,5       1000     68,9
485    4 to 100         0,3 to 6,9         0.5 to 6        34,5 to 413,7 mbar    500       34,5       1000     68,9
486    8 to 200         0,6 to 13,8       1 to 11          0,1 to 0,8                  500       34,5       1000     68,9
488    50 to 1000     3,4 to 68,9       25 to 125     1,7 to 8,6                   2000     137,9     7000     482,6
489    250 to 3500   17,2 to 241,3   50 to 300     3,4 to 20,7                 4000      275,8    7000     482,6

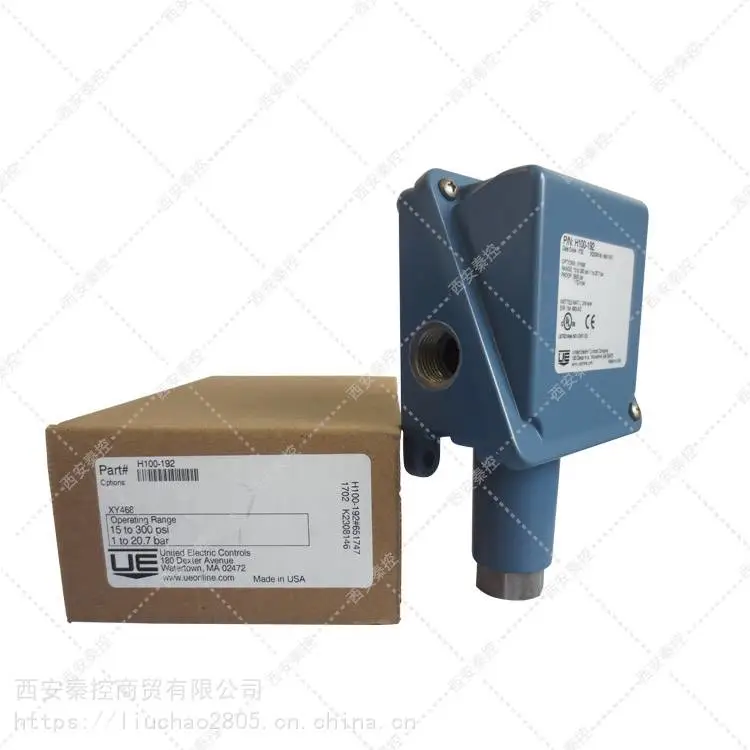

H100-190 H100-191 H100-192 H100-193 H100-194 实物图：

H100系列温度型号表：

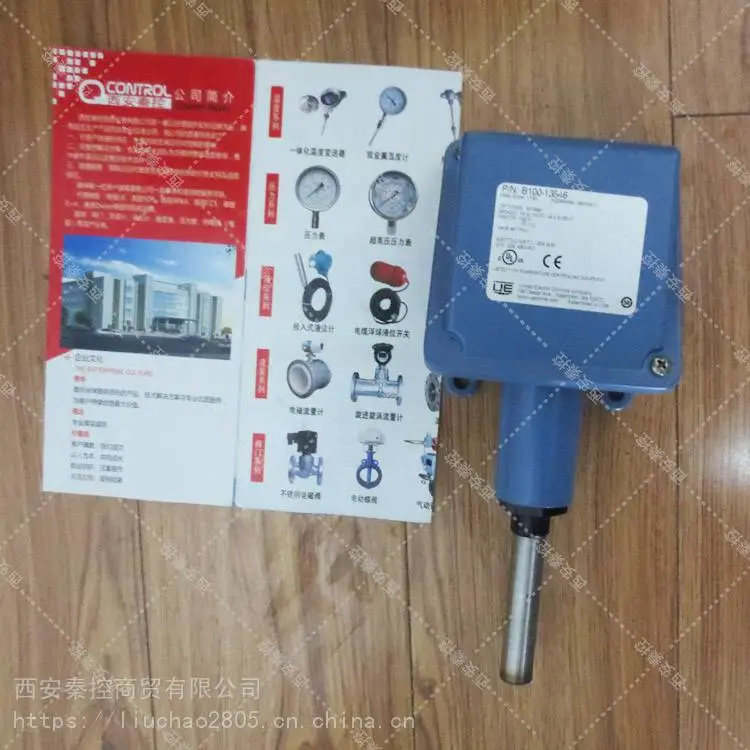

B100-120 B100-121实物图：

H100系列差压型号表：

H100K-540 H100K-541 H100K-542 H100K-543 H100K-544 H100K-545 H100K-546 H100K-547 H100K-548实物图：
