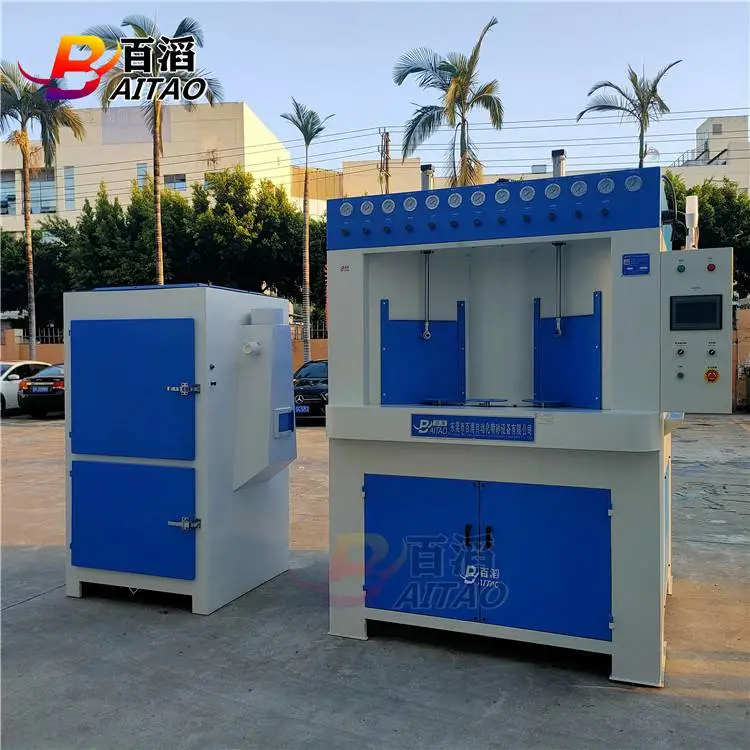

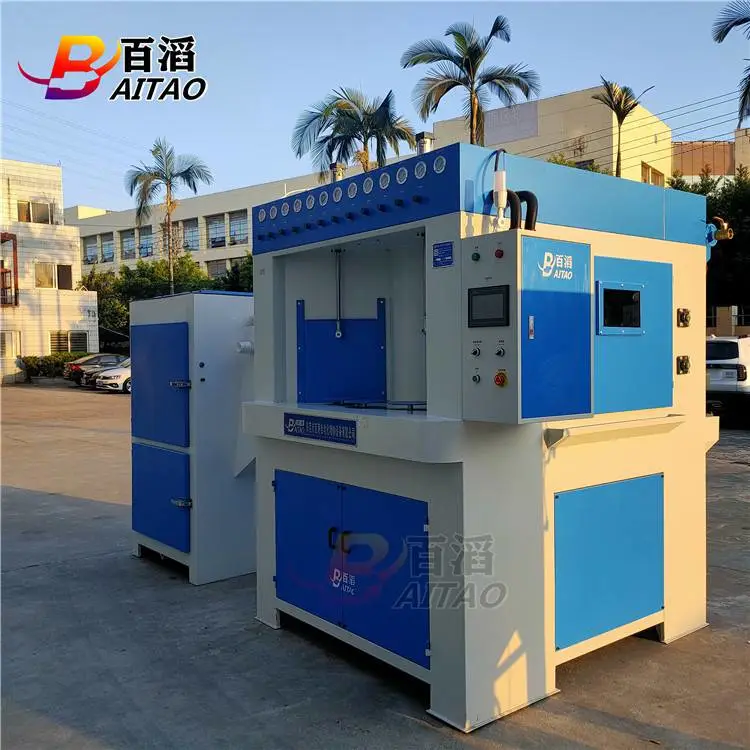

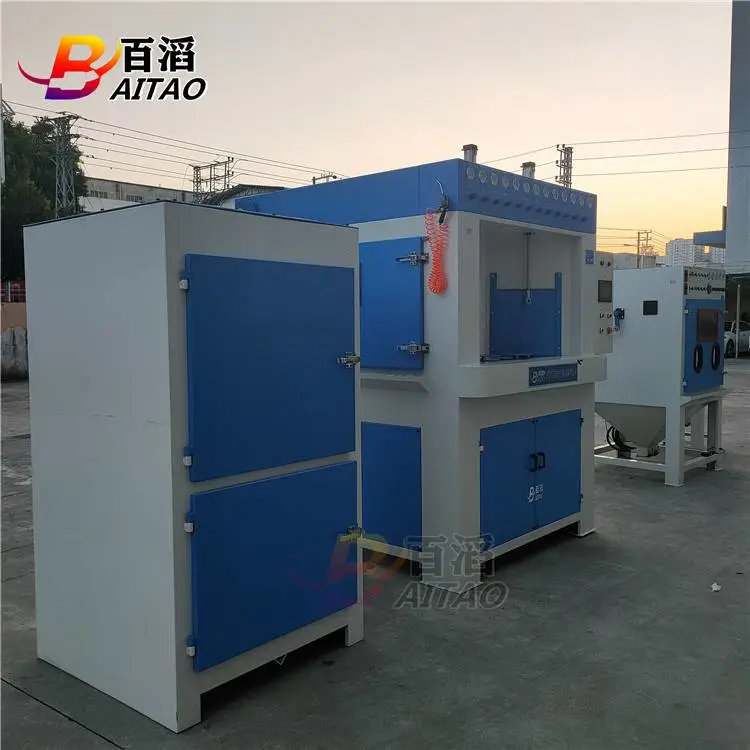

大型转盘式自动喷砂机 脚轮自动喷砂机

转盘式喷砂机技术参数:

工作 舱 尺寸--1400*1400*840（mm）

除尘 箱 电机--380V 50Hz  5.5kw

喷头摆 动电机-380V 50Hz  0.4kw

大转 盘 电机--380V 50Hz  0.75kw

小转 盘 电机--380V 50Hz  0.75KW

喷         头-12支碳化硼喷头

总    功   率-380V  50Hz  7.6KW

加工工 件尺寸-直径￠150*250mm

除  尘  方 式-64布袋式除尘箱，采用自动除尘（也可选用：脉冲滤芯式除尘）

Technical parameters of rotary table sandblasting machine:

Working cabin size -- 1400 * 1400 * 840 (mm)

Dust removal box motor -- 380V 50Hz 5.5kw

Nozzle swing motor - 380V 50Hz 0.4KW

Large rotary table motor -- 380V 50Hz 0.75kw

Small rotary table motor -- 380V 50Hz 0.75kw

Nozzle - 12 boron carbide nozzles

Total power - 380V 50Hz 7.6kw

Machining workpiece size - diameter ￠ 150 * 250mm

Dust removal method - 64 bag type dust removal box, automatic dust

removal (pulse filter element dust removal can also be selected)

转盘式自动喷砂机特点：

引进国外技术，融合本公司多年的生产经验研发而成；

转台自动间歇回转（也可设计连续旋转），运行稳定；

磨料自动循环使用，能耗低；

采用PLC电气控制系统，自动化程度高，稳定性好，故障率低；

喷嘴采用***高耐碳化硼材料，使用寿命长；

独立的布袋除尘系统（也可选择脉冲式滤芯除尘），通风性能好，环保无污染；

根据工件尺寸，配置专用工装夹具，装夹快捷、稳固，效***，产量大；

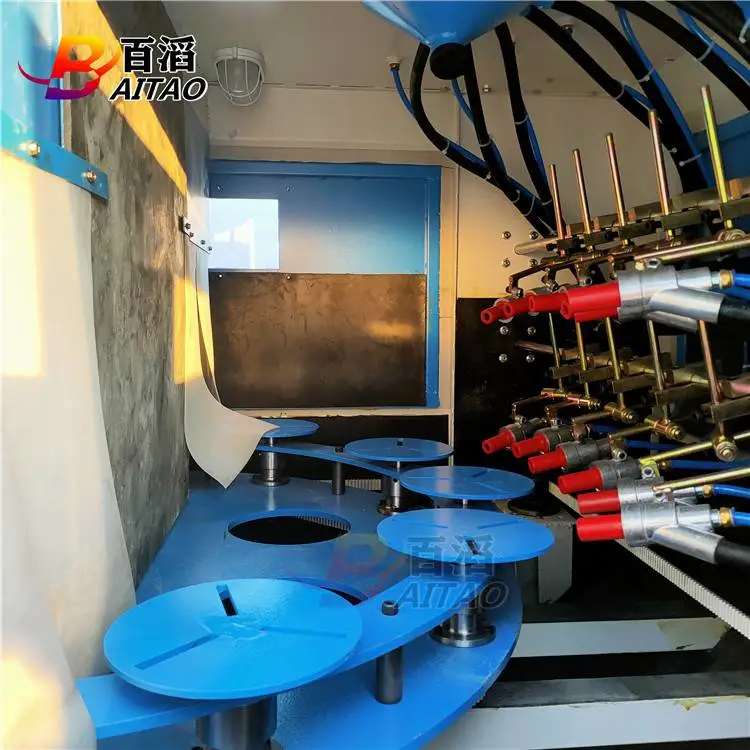

喷头组可水平、垂直移动，亦可多角度摆动；

Features of rotary table sandblasting machine:

It is developed by introducing foreign technology and integrating many years of production experience of the company;

The turntable rotates automatically intermittently (continuous rotation can also be designed), and the operation is stable;

Abrasives are automatically recycled, with low energy consumption;

PLC electrical control system is adopted, with high degree of automation, good stability and low failure rate;

The nozzle is made of special high resistance boron carbide material with long service life;

Independent bag dust removal system (pulse filter element can also be selected), with good ventilation performance, environmental protection and no pollution;

According to the workpiece size, special tooling fixtures are configured, which is fast and stable, high efficiency and large output;

The nozzle group can move horizontally and vertically, and can swing at multiple angles;

东莞市百涛自动化喷砂设备有限公司，大型转盘式自动喷砂机生产供应
