上海科麦减速机出口到各个国家。如选型需咨询，24小时热线：13671556859

上海科麦生产大功率硬齿面齿轮减速机，有需要的客户联系上海科麦传动设备有限公司，确定参数和货期。

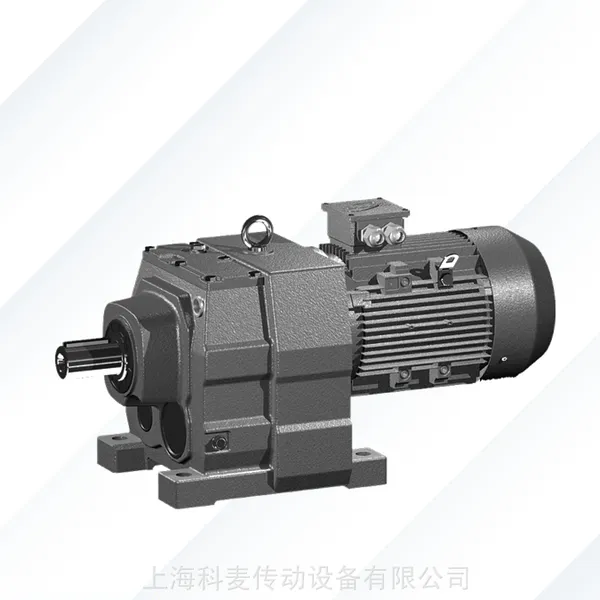

上海科麦生产的R系列减速机概述 R系列减速机在模块组合体系基础上设计制造，有极多的电机组合、安装形式和结构方案，传动比分级细密，满足不同的使用工况，实现机电一体化，传动效***，耗能低，性能优越。带筋的高刚性铸铁箱体；硬齿面齿轮采用优质合金钢，表面经渗碳淬火硬化处理，磨齿精细加工，传动平稳、噪声低、承载能力大。温升低，寿命长。

 二、R系列斜齿轮减速机特点：

1、小偏置输出，结构紧凑，限度利用箱体空间，二级、三级在同一箱体内。 2、采用整体式铸造箱体,箱体结构刚度好,易于提高轴的强度和轴承寿命。 3、安装方式：底脚安装、法兰安装有大小法兰，易于选择。 4、实心轴输出，平均效率是二级96%、三级94%、R/R 组合平均效率85%。 5、专为搅拌设计的RM系列能承载较大的轴向力、径向力。

 三、应用范围

R系列减速机被广泛应用于轻工、食品、啤酒饮料、化工、自动扶梯、自动化仓储设备、建筑建材机械、钢铁冶金、环境保护、电厂、煤炭、矿山、造纸、人造板、汽车、港口（空港、码头）、烟草机械等领域。

 四、R系列减速机技术参数 速比范围：

R基本型3.33～289.74，RX型1.3～8.65，R/R组合型可达到27001 扭矩范围：R基本型85～18000 Nm，RX型20～1680 Nm 功率范围：R基本型0.18～160 kW，RX型0.18～132 kW 基本型二级输入输出旋转方向相同，三级相反。 R系列减速机结构紧凑，限度利用箱体空间、二级、三级在同一箱体内，采用整体式铸造箱体，箱体结构刚度好，易于提高轴的强度和轴承寿命。

RX 型号:DLR00

DLR10R07 DLR10R06 DLR09R05 DLR09R04 DLR08R04 DLR07R04  DLRF06R02 DLRF05R02 DLRF04R00 DLRF03R00 DLRF02R00 DLRF01R00

DLRF10R07 DLRF10R06 DLRF09R05 DLRF09R04 DLRF08R04 DLRF07R04  DLR06R02 DLR05R02 DLR04R00 DLR03R00 DLR02R00 DLR01R00DLRFS10

DLRFS09 DLRFS08 DLRFS07 DLRFS06 DLRFS05  DLRFS04 DLRFS03 DLRFS02 DLRFS01 DLRFS00 DLRS10DLRS09 DLRS08 DLRS07 DLRS06 DLRS05 DLRS04

DLRS03 DLRS02 DLRS01 DLRS00 DLRF10 DLRF09  DLRF08 DLRF07 DLRF06 DLRF05 DLRF04 DLRF03DLRF02 DLRF01 DLRF00 DLR10 DLR09 DLR08DLR07 DLR06 DLR05 DLR04 DLR03 DLR02DLR01 DLR00

二、 R series helical gear reducer features:

1. Small offset output, compact structure, limited use of box space, two and three stages in the same box. 2. The integral casting box is adopted, which has good structural stiffness and is easy to improve the strength of the shaft and the service life of the bearing. 3. Installation method: foot installation and flange installation. There are large and small flanges, which is easy to choose. 4. Solid shaft output, the average efficiency is secondary 96%, tertiary 94%, and the average efficiency of R / R combination is 85%. 5. The RM series specially designed for mixing can bear large axial and radial forces.

三、 Scope of application

R series reducer is widely used in light industry, food, beer and beverage, chemical industry, escalator, automatic storage equipment, building materials machinery, iron and steel metallurgy, environmental protection, power plant, coal, mining, papermaking, wood-based panel, automobile, port (airport, wharf), tobacco machinery and other fields.四、 Technical parameters and 四、speed ratio range of R series reducer:

R basic type is 3.33 ~ 289.74, RX type is 1.3 ~ 8.65, R / R combined type can reach 27001, torque range: R basic type is 85 ~ 18000 nm, RX type is 20 ~ 1680 nm, power range: R basic type is 0.18 ~ 160 kW, RX type is 0.18 ~ 132 kW, the rotation direction of two-stage input and output of basic type is the same, and the rotation direction of three-stage is opposite. The structure of R series reducer is compact, the space of the box is used to the maximum, and the two and three stages are in the same box. The integral casting box is adopted. The structural stiffness of the box is good, which is easy to improve the strength of the shaft and the service life of the bearing.

1. Features: small offset output, compact structure, limited use of box space, integral casting box, good stiffness, which can improve the strength of the shaft and the service life of the bearing2. Installation type and output mode: bottom seated and large and small flange installation, solid shaft output.3. Input mode: direct motor, shaft input and connecting flange input.4. Reduction ratio: Secondary 5 ~ 24.8, tertiary 27.2 ~ 264, R / R combination up to 18125. Average efficiency: secondary 96%, tertiary 94%, R / R combination 856. R series specially designed for mixing can bear large axial and radial forcR series helical gear reducer has compact structure, small volume, stable operation, wide selection range of output speed and strong universality, up tPower: 0.12kw ~ 160Torque: 1.4n · m ~ 2320Output speed: 0.06 ~ 1Related products from verified members
