FT8-211(FA1J-4A-70)福州天行健17年专业代理德国原装NORIS船用加速传感器、NORIS船用继电器

For over 95 years NORIS has been one of the leading specialists in the fields of instrumentation and automation for the shipbuilding industry, transport technology, machinery and plant engineering.

We develop, produce and sell customised products and solutions both as one-off items and in series for rail and special-purpose vehicles. We equip ships with automation systems for engines, propulsion systems and general marine engineering – everything from a single source and everything made in Germany!

Scanning type Non-contacting

Frequency range FAH[..]: 0.2 ... 20,000 Hz

FAJ[..]: See diagram; 5 Hz...10,000 Hz depending from module and scan distance;

under optimal conditions up to 15 kHz

Supply voltage 9 ... 32 VDC

Scanning object -

distance

FAH[..]: 0.2 ... 3 mm;

recommended: 1.0 ± 0.5 mm

FAJ[..]: See diagram in the technical

documentation

Protection class Housing: IP66/IP68

Connection Type A: IP65; Typ C, E, H, X: IP67

Material Sensor tube: Brass

Length L1 = 60 ... 200 mm

Mounting Male thread M14x1 | M16x1.5 | M18x1

M18x1.5 | 5/8" - 18 UNF (not available for all

types)

Measuring

channels

1 or 2 measuring channels

Output signal and

signal type

1 or 2 square wave signals or

2 square wave signals + 1 status signal or

2 square wave signals + 2 inverted square

wave signals

Output stage Push-pull amplifier

Option Additional status signal

Galvanically ***lated output signals

Inverted output signals

德国原装NORIS船用转速传感器VF502-12

德国原装NORIS船用转速传感器及航空插座fa1j-3a-70 M18*1.5 L=45mm

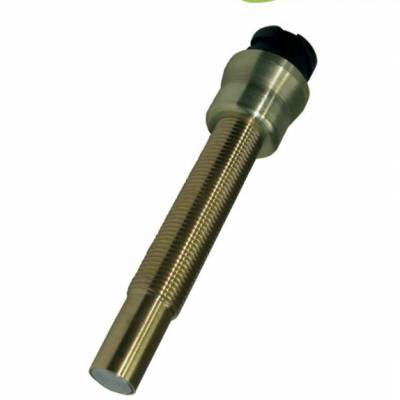

德国原装NORIS船用测速传感器FT8-211(FA1J-4A-70)

德国原装NORIS船用温度控制器RP51-A
