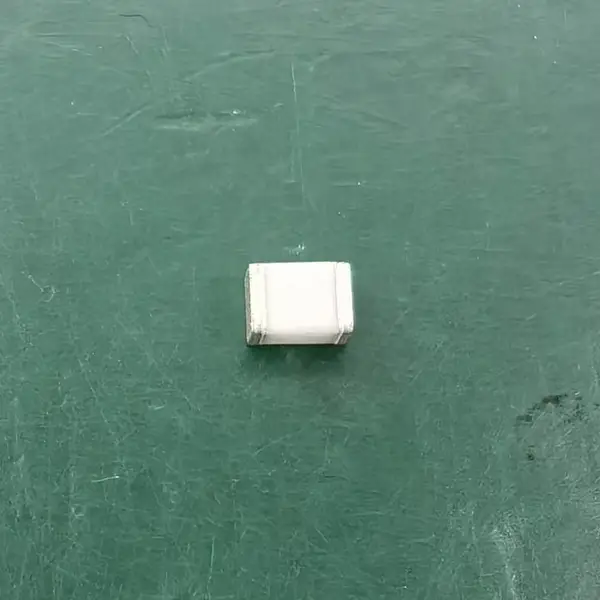

| 加工定制：否 | 品牌：KONTECH | 型号：BA201N |
| 种类：放电管 | 用途：电子 | 体积：小型 |
| 电压特性：低压 | 形状：贴片式 |
Features
■ High insulation resistance.
■ Low capacitance (≤0.5pF).
■ 3000A 8/20μs maximum surge current capacity in accordance with IEC61000-4-5.
■ 6KV 10/700μs maximum surge rating in accordance with ITU-TK.21
■ Surface mounted gas arrester
■ Micro-Gap Design
■ Size 4532( 1812)
■ Storage and operating temperature: -40℃ ~ +85℃
■ Meets MSL level 1, per J-STD-020
Applications
■ Repeaters, Modems.
■ Telephone Interface, Line cards.
■ Data communication equipment.
■ Line test equipment
Part Number | DC Spark-over Voltage | Maximum Impulse Spark-over Voltage | Impulse Life Test | Minimum Insulation Resistance | Maximum Capacitance | Nominal Impulse Discharge Current |
Impulse Withstanding Voltage Capacity |
Device Marking Code | |
100V/s | 1KV/μs | 8/20μs 100A | Test Voltage |
(G?) | ( 1MHz 1V) | 8/20μs | |||
(V) | (V) | (Times) | DC(V) | (pF) | (A) | ||||
SMD075NL | 55~95 | 600 | 300 | 25 | 1 | 0.5 | 3000 |
10/700μs 6kV ±5 Times | -- |
SMD091NL | 63~ 117 | 700 | 300 | 50 | 1 | 0.5 | 3000 | -- | |
SMD121NL | 84~156 | 700 | 300 | 50 | 1 | 0.5 | 3000 | -- | |
SMD151NL | 105~195 | 700 | 300 | 50 | 1 | 0.5 | 3000 | -- | |
SMD201NL | 140~260 | 750 | 300 | 100 | 1 | 0.5 | 3000 | -- | |
SMD231NL | 161~299 | 750 | 300 | 100 | 1 | 0.5 | 3000 | -- | |
SMD301NL | 210~390 | 900 | 300 | 100 | 1 | 0.5 | 2500 | -- | |
SMD351NL | 245~455 | 900 | 300 | 100 | 1 | 0.5 | 2500 | -- | |
SMD401NL | 280~520 | 1000 | 300 | 100 | 1 | 0.5 | 2500 | -- | |
SMD421NL | 294~546 | 1000 | 300 | 100 | 1 | 0.5 | 2500 | -- | |
SMD471NL | 329~611 | 1000 | 300 | 100 | 1 | 0.5 | 2000 | -- | |
SMD501NL | 350~650 | 1 100 | 300 | 100 | 1 | 0.5 | 2000 | -- | |
SMD601NL | 420~780 | 1200 | 300 | 100 | 1 | 0.5 | 2000 | -- | |
Electrical Ratings
Items | Test Condition/Description | Requirement |
DC Spark-over Voltage | The voltage is measured with voltage ramp dv/dt= 100V/s. |
To meet the specified value |
Maximum Impulse Spark-over Voltage | The maximum impulse spark-over voltage is measured with voltage ramp dv/dt= 1000V/μs. | |
Insulation Resistance | The resistance of gas tube shall be measured between two electrodes. | |
Capacitance | The capacitance of gas tube shall be measured between two electrodes. Test frequency: 1MHz | |
Impulse Discharge Current | Maximum 8/20μs surge current that can be applied between two electrodes, 5 positive and 5 negative surges, with 3 minutes interval time, without causing the DC spark-over voltage to change more than 25% from its initial value. | |
Impulse Withstanding Voltage | The maximum 10/700μs surge that can be applied to the Gas Tube, 5 positive and 5 negative surges, with 1 minute interval time, without causing the DC spark-over voltage to change more than 25% from its initial value. |
