460ETCSC网关将罗克韦尔（AB）PLC和西门子S7 PLC进行连接通讯

Allen-Bradley PLC to Siemens S7 PLC

The easiest way to connect Allen-Bradley PLCs with Siemens S7 PLCs.

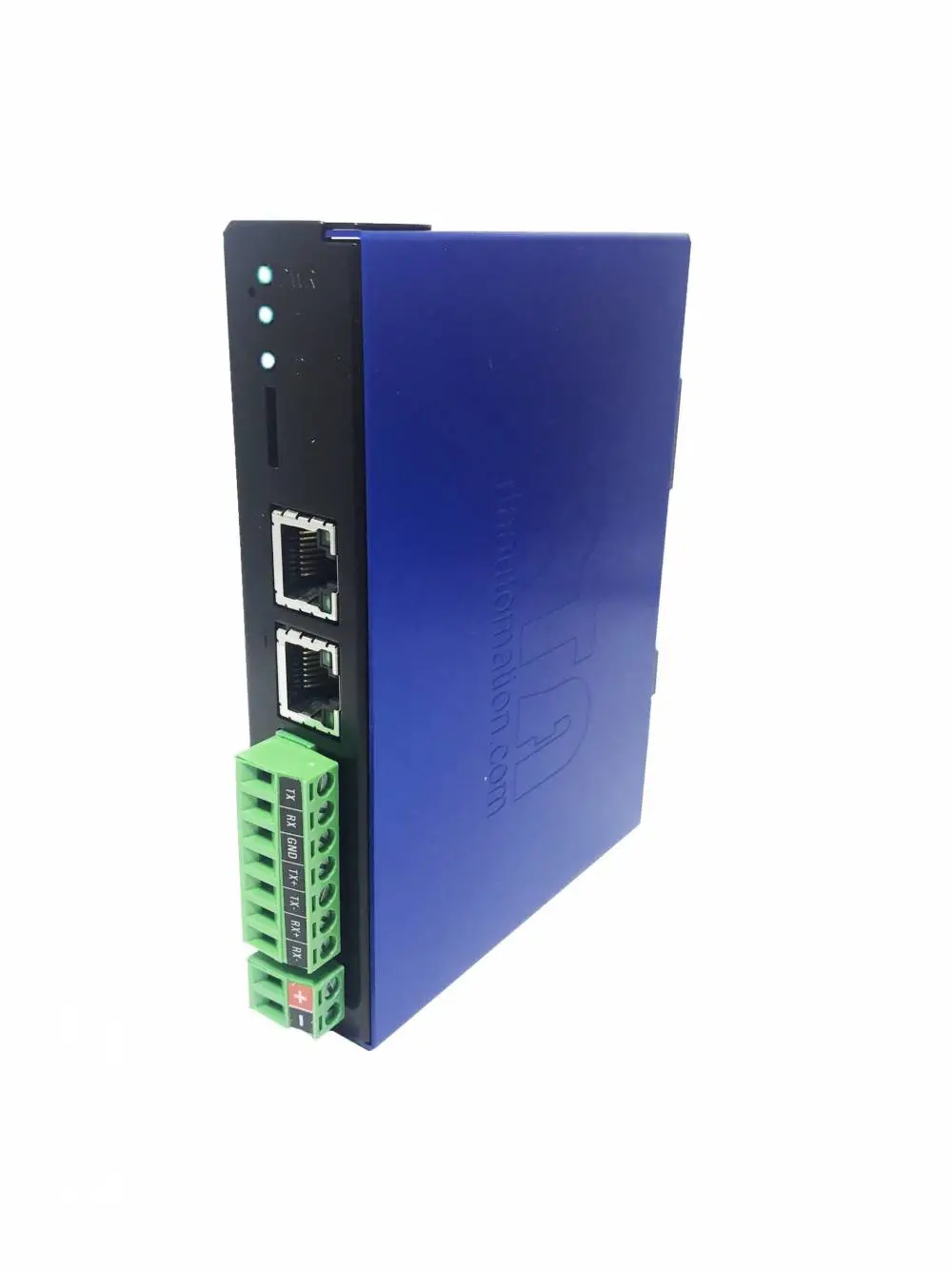

Ports: 7 Pin Screw Terminal(RS-232, RS-485, RS-422), 2 Pins for Power, 2 Ethernet RJ45

Connect Allen-Bradley PLCs to your S7 PLCs

The 460ETCSC connects up to 5 Allen-Bradley PLCs to 5 Siemens S7 PLCs.

With the 460ETCSC you are making a direct connection between S7 PLC data and user-defined Tags or Registers in the data table of your Allen-Bradley PLC. There is no polling from the PLC or EtherNet/IP scan lists to arrange.

将 Allen-Bradley PLC 连接到您的 S7 PLC

460ETCSC 最多可将 5 个 Allen-Bradley PLC 连接到 5 个 Siemens S7 PLC。

使用 460ETCSC，您可以在 S7 PLC 数据和 Allen-Bradley PLC 数据表中用户定义的标签或寄存器之间建立直接连接。 无需从 PLC 或 EtherNet/IP 扫描列表轮询安排。

How do I use 460ETCSC in my application?

You allocate two blocks of tag/register in your Allen-Bradley PLC. One area for Reads one for Writes. Those locations are mapped to corresponding memory block addresses in your S7 PLC.

It’s really that simple. Need to modify your data as it passes from one protocol to the other? No problem. Each data mapping you apply can be modified with up to 3 mathematic functions.

如何在我的应用程序中使用 460ETCSC？

您在 Allen-Bradley PLC 中分配两个标签/寄存器块。 一个用于读取的区域，一个用于写入的区域。 这些位置映射到 S7 PLC 中相应的内存块地址。

真的就这么简单。 需要在数据从一种协议传递到另一种协议时对其进行修改？ 没问题。 您应用的每个数据映射都可以使用多达 3 个数学函数进行修改。

EtherNet/IP Tag Client Features

PLC Support: ControlLogix, CompactLogix, FlexLogix, MicroLogix, SLC’s and PLC5E’s
Maximum Number of PLCs Supported: 5
Maximum Number Read Tags or Registers Supported: 150 per PLC
Maximum Number Write Tags or Registers Supported: 150 per PLC
Array Support: Yes, for all data types except strings
Supported Data Types: ControlLogix / CompactLogix / FlexLogix: Bit, 32 Bit Array, SINT, INT, REAL, STRING, DINT, MicroLogix / SLC / PLC5E: 16 Bit Array, INT, REAL, STRING

S7 Client Features

PLC Support: S7 300/400/1200/1500
Maximum Number of PLCs Supported: 5
Maximum Number of Inputs per PLC: 150
Maximum Number of Outputs per PLC: 150
Array Support: Yes, for all data types
Supported Data Types: 8Bit Int, 16Bit Int, 32Bit Int, 32Bit Float, Bool and String
