原装美国进口MTI分析仪尾气催化器1211-010-220

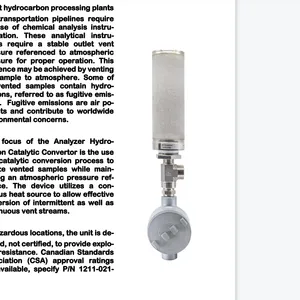

Analyzer Hydrocarbon Catalytic Convertor  Specifications

烃催化转化器规格

PART NUMBER: 1211-021-220

零件号：1211-021-220

BACKPRESSURE: Nil @ 1 liter/minute (<0.1” H2O @ 3 liters/minute)

背压：零1升/分钟（

HYDROCARBON EMISSION PRODUCTS: Water Vapor, CO2, (Nil NOx formation  due to low temperature operation)

烃类排放产品：水蒸汽、二氧化碳、（低温运行产生非氮氧化物）

 SURFACE TEMPERATURE CLASSIFICATION: T6 – 185? F (T3B – 330? F maximum  operation)

表面温度分类：T6-185?F（T3B-330?F大运行）

CATALYST LIFE: Recommend catalyst replacement each year of operation to ensure efficiency of operation (P/N CBC5571HF)

催化剂寿命：建议每年更换催化剂，以确保运行效率（P/NCBC5571HF）

MAXIMUM CONCENTRATION: 2,000 BTU/HR and/or 1 liter per minute

大浓度：每分钟2000英热单位/小时和/或1升

ELECTRICAL CLASSIFICATION: Canadian Standards Association (CSA) Approved for Class 1, Division 1, Groups B, C, and D, T3B (Suitable for Class 1, Zone 1, Ex Group IIB + H2)

电气分类：加拿大标准协会(CSA)批准用于1类，1区，B、C和D组，T3B（适用于1类，1区，前组IIB+H2）

MATERIALS of CONSTRUCTION: Stainless steel, Aluminum, Platinum Catalyst (Monel available as option)

建筑材料：不锈钢、铝、铂催化剂（可选莫奈尔）

SAMPLE INLET CONNECTION: ?” MNPT (with Flame Arrestor)

样品入口连接：?“MNPT（带火焰避雷器）

 MTI Analytical Technology is available to assist with Analytical Application  requirements. Should there be questions or additional information required,  please advise.
