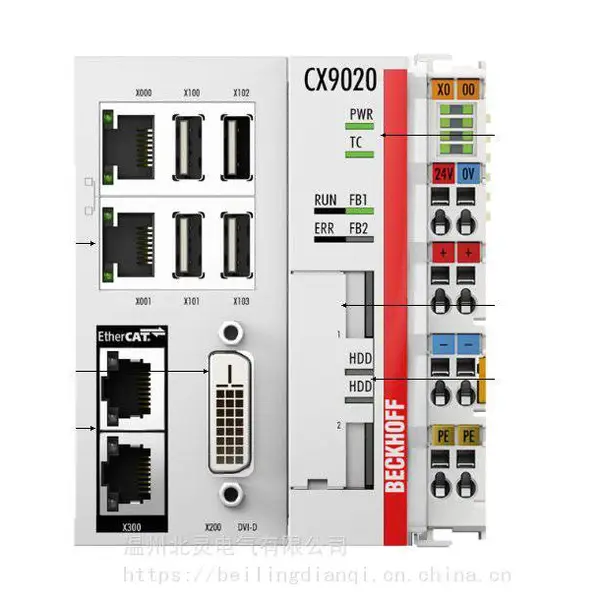

The CX9020 is a compact, DIN rail-mountable Ethernet control system with 1 GHz ARM Cortex-A8 CPU. The connection for the Beckhoff I/O systems is directly integrated into the CPU module. The unit offers automatic bus system identification (E-bus or K-bus) and independently switches in the corresponding mode. The CX9020 comprises the CPU with two microSD card slots, the internal RAM and 128 kB NOVRAM as non-volatile memory. The basic configuration also includes two switched Ethernet RJ45 interfaces, four USB 2.0 interfaces and a DVI-D interface. The RJ45 interfaces are connected to an internal switch and offer a simple option for creating a line topology without the need for additional Ethernet switches. The operating system is Windows Embedded Compact 7. TwinCAT automation software transforms a CX9020 system into a powerful PLC and motion control system that can be operated with or without visualization. Optionally, the unit can be ordered with a fieldbus, serial or audio interface.

CX9020是一个紧凑的DIN导轨安装以太网控制系统，具有1 GHz ARM Cortex-A8处理器。Beckhoff I/O系统的连接直接集成到CPU模块中。该单元提供自动总线系统识别（E总线或K总线），并在相应模式下独立切换。CX9020包括带有两个microSD卡插槽的CPU、内部RAM和作为非易失性存储器的128 kB NOVRAM。基本配置还包括两个交换以太网RJ45接口、四个USB 2.0接口和一个DVI-D接口。RJ45接口连接到内部交换机，为创建线路拓扑提供了一个简单的选项，无需额外的以太网交换机。操作系统为Windows Embedded Compact 7。TwinCAT自动化软件将CX9020系统转换为功能强大的PLC和运动控制系统，可在可视化或不可视化的情况下操作。可选地，该装置可订购现场总线、串行或音频接口。

The extended operating temperature range between -25 °C and +60 °C enables application in climatically demanding situations.

工作温度范围在-25°C和+60°C之间，可在气候条件苛刻的情况下使用。
