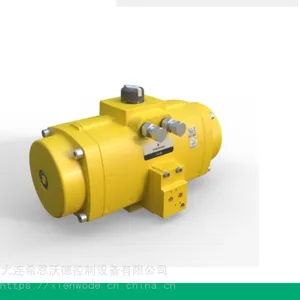

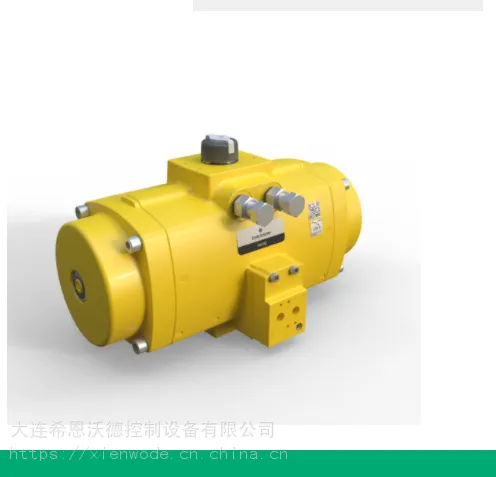

配有气动齿条和小齿轮执行机构、控制装置和安装架的交钥匙阀门操作系统。

特点

• 交钥匙式一体化执行机构，带控制装置和安装装置

• Polyurethane powder coating provides excellent corrosion resistance on housing and end caps.

• One piece blow-out proof, pressure balanced, pinion allows safe in-field re-configuration from Fail-Close to Fail-Open.

• The aerospace type alloy 7075 T6 for the pinion, provides the best combination of corrosion resistance, high strength and a lightweight construction as well as providing protection against galvanic corrosion.

• Precision dual stroke adjustment provides accurate and intuitive end of stroke adjustment for the Open and Closed valve position.

• Low maintenance bearings for pistons and pinion.

• Accurately designed and machined components assure a perfect fit and long cycle life.

• Stainless steel or Deltatone? coated fasteners.

• VDI/VDE 3845 (NAMUR) solenoid adapter interface and top accessory interface.

• Dual *** 5211 mounting patterns allow low-profile direct mounting to valves.

• Drive inserts on the valve flange make direct mounting flexible, either for square, flat head, or round with key way stems.

规格

• 动力源

• 气动

• 产品类型

• 气动执行机构

• 致动方式

• 阀门操作系统、齿条和小齿轮、气动

• 认证

• SIL、ATEX、GOST（现 CUTR）、PED

  本产品仅适用于关于限制在电气和电子设备中使用某些有害物质的指令 2011/65/EU (RoHS 2) 豁免的大型固定装置。

• 控制类型

• 开/关

• 阀门类型

• 球阀、蝶阀、旋塞阀、直通阀

• 操作温度

• Standard -20°C to +80°C (-4°F to +176°F). Optional high and low temperature options

• 扭矩/推力

• 9 sizes: 47 to 1676 Nm (413 to 14874 lbf.in)

• 工作压力

• up to 8.3 bar / 120 psi
