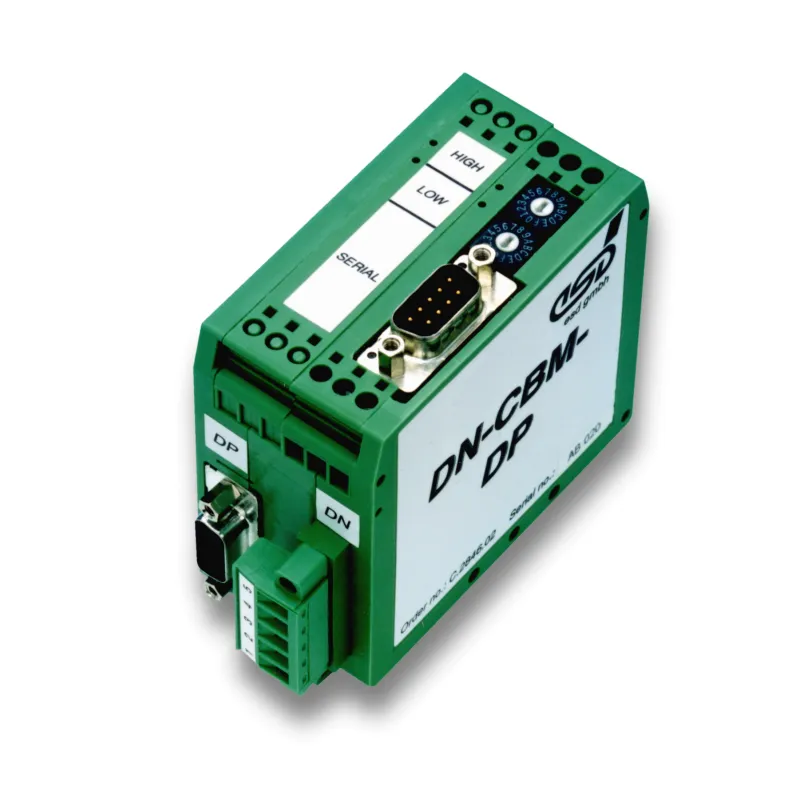

DeviceNet协议转PROFIBUS-DP网关DN-CBM-DP

通过数据缓冲将任何 PROFIBUS-DP? 主站快速可靠地连接到设备网络?

应用示例：DeviceNet  PLC 连接，例如 SIMATIC-S7-300 或 S7-400

模块对 DeviceNet 参与者的数量没有限制

devicenet模块，devicenet协议，devicenet连接器，devicenet协议栈，devicenet接口，devicenet源码，devicenet通讯线，devicenet总线，devicenet板卡

DP从站，数据高达312字节（从高达244字节的输入和68字节输出到244字节输出和68字节输入）

板卡DeviceNet主站板卡或从站板卡

通过 PROFIBUS-DP 主站的配置工具进行配置

DIN-EN 导轨安装式外壳 （TS 35）

Fast and reliable linking any PROFIBUS-DP? master to DeviceNet? with data buffering

Application examples: DeviceNet-PLC link, e.g. SIMATIC-S7-300 or S7-400

No limitation on the number of DeviceNet participants by the module

DP-slave with up to 312 bytes data (partitioning from up to 244 bytes input and 68 bytes output to 244 bytes output and 68 bytes input)

On board DeviceNet master or slave

Configuration via the configuration tool of the PROFIBUS-DP master

DIN-EN rail mountable housing (TS 35)

连接DP和DeviceNet

模块DN-CBM-DP可以将任何Profibus-DP主站链接到DeviceNet。DN-CBM-DP网关作为从I/O组件运行，在DP总线上总共最多有312字节的数据（从最多244字节的输入和68字节输出到244字节的输出和68字节的输入数据）。

应用

使用 DN-CBM-DP 网关，您可以将模块与 DeviceNet 实现耦合到例如 SIMATIC-S7。DeviceNet 参与者的数量不受模块的限制。

物理接口

DeviceNet 接口是根据 DeviceNet 规范修订版 2.0 设计的。支持所有DeviceNet比特率。Profibus-DP-Slave接口自动识别所有高达12 Mbit/s的常用比特率。

DP 和 DeviceNet 接口通过光耦合器和 DC/DC 转换器进行电气隔离。

串行接口

该模块具有用于服务和配置的串行接口（默认：RS-232）。它通过 DSUB9 连接器连接。

配置和协议

对于DP从站的I / O数据映射，可以使用Windows95/98或Windows NT的配置软件。DeviceNet 作为第 7 层协议受支持。

Linking DP and DeviceNet

The module DN-CBM-DP can link any Profibus-DP master to DeviceNet. The DN-CBM-DP gateway operates as a slave-I/O component with a total of maximum 312 bytes data (partitioning from up to 244 bytes input and 68 bytes output to 244 bytes output and 68 bytes input data) on the DP-bus.

Applications

With the DN-CBM-DP gateway you can couple modules with DeviceNet implementation to e.g. a SIMATIC-S7. The number of DeviceNet participants is not limited by the module.

Physical Interfaces

The DeviceNet interface is designed according to the DeviceNet Specification Rev. 2.0. All DeviceNet bit rates are supported. The Profibus-DP-Slave interface automatically recognizes all usual bit rates up to 12 Mbit/s.

The DP as well as the DeviceNet interface are electrically ***lated by optocouplers and DC/DC converters.

Serial interface

The module has a serial interface (default: RS-232) for service and configuration. It is connected by a DSUB9 connector.

Configuration and Protocol

For the I/O data mapping of the DP slave a configuration software for Windows95/98 or Windows NT is available. DeviceNet is supported as Layer-7 protocol.

Number: C.2846.02

CANbloc-Mini module Profibus-DP-Slave / DeviceNet Gateway, DeviceNet electrically ***lated, DP-Physical Layer: RS-485, electrically ***lated; Manual and GSD file on CD-ROM; additionally the RS-232 can be used for service, development or configuration purposes

Features:

galvanically ***lated

Interfaces:

CAN

DeviceNet

Serial Interface

Form factor: Railmount

Protocols:

DeviceNet

Profibus
