深圳市科瑞芯电子有限公司为GMT/致新授权代理商，商品原厂原装

供应液晶电视6-CH偏压电源芯片，可免费提供样品及技术支持！

深圳市内可送货上门，欢迎致电！

型号：G5567SQG1U

封装：QFN6X6-40

品牌：GMT/致新

温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！

General Description

The G5567 DC-DC converter provides six regulated voltages required by thin-film transistor (TFT) liquid crystal displays (LCD) panels. All output voltages are programmable.

The VIO and VCORE buck converters are for the T-CON. The VAVDD boost converter and VHAVDD buck converters are for the source driver and Gamma buffer. Charge pump VGH and VGL are for the gate driver or level shifter. VGH voltage is with temperature compensation for the Gate in Panel (GIP) technology.

Also, a high voltage stress (HVS) mode for the VAVDD and a VAVDD ***lation switch is integrated.

G5567 offers high current capabilities, and is ideal for large screen LCD monitors panels and TV applications with 12V supply voltage.

Features

■ 8V to 14V input Voltage Range

■ 6-bit Boost Converter VAVDD: 13.5V…19.8V

750kHz Switching Frequency

3-bit prog. Switch Current Limit up to 4.2***

4-bit prog. HVS Offset Voltage: 0V…3V

bit prog. Soft-Start Time

■ Integrated VAVDD ***lation Switch

■ 4-bit Buck Converter VIO: 2.2V…3.7V

750kHz Switching Frequency

3A Switching Current Limit

■ 5-bit Sync. Buck Converter VCORE: 0.8V…3.3V

2MHz Switching Frequency

2.*** Switching Current Limit

■ 6-bit Sync. Buck Converter VHAVDD: 4.8V…11.1V

750kHz Switching Frequency

1.7A Switching Current Limit

■ 4-bit Charge Pump Controller VGH: 20V…35V

4-bit temp. Compensation Offset: 0V … 15V

■ 4-bit Charge Pump Contr. VGL: -5.5V…-14.5V

■ 2-bit Gate Pulse Modulation (GPM): 0V…15V

■ Thermal Shutdown

■ I2C Compatible Interface

■ Available in 6mmX6mm 40-pin QFN Package

Applications

■ TFT LCD Displays

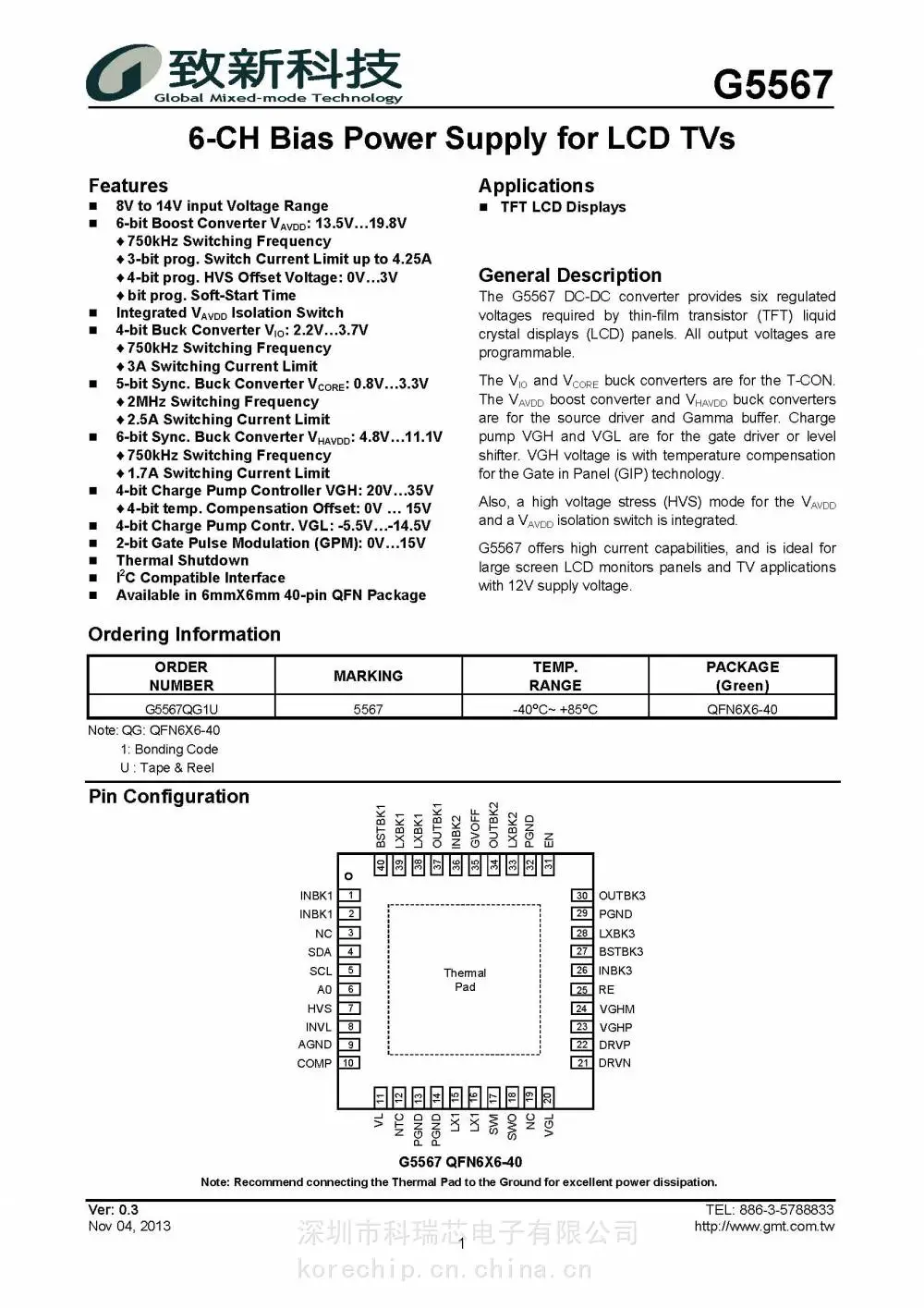

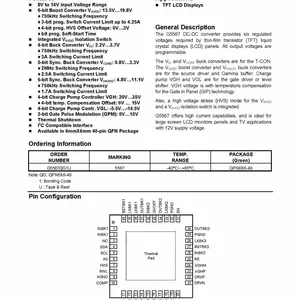

产品规格书（部分），如需PDF文档请QQ索要或电话联系
