型号：G5332AQP1U

封装：QFN3X3-21

类型：降压转换器

品牌：GMT/致新

温馨提示：由于公司产品型号较多，如有具体需求可直接致电或QQ联系！

描述

G5332是一款8A同步DC/DC降压转换器，集成了20mΩ n沟道高侧MOSFET和8.5mΩ n沟道低侧MOSFET。它采用恒定的准时控制方案，轻松处理宽输入/输出电压比，并在保持相对恒定的开关频率的同时，为负载瞬态提供100ns的“瞬时接通”响应。G5332通过消除传统电流模式pwm中的电流感测电阻，以较低的成-本实现了髙效率。单级降压转换允许这些设备直接降压高压电池，以获得尽可能高的效率。G5332适用于笔记本电脑或其他低至0.75V的低压电源的供电。

特征

● 超髙效

● 17μA的低静态电流

● VDD=5V N沟道MOSFET低压侧集成8.5mΩ

● VDD=5V N沟道MOSFET高压侧集成20mΩ

● 无电流检测电阻器（无损ILIMIT）

● 100ns负载阶跃响应的准PWM

● 线路和负载上1%的VOUT精度

● 可编程开关频率

● 0.75V至3.6V可调输出范围

● 4.5V至28V适配器或电池输入范围

● 集成升压开关

● OVP和UVP

● 超温保护（非闩锁）

● 3.3ms软启动

● 电源良好指示灯

应用

● 笔记型电脑

● I/O电源

● 芯片组/RAM电源低至0.75V

● 网络电源

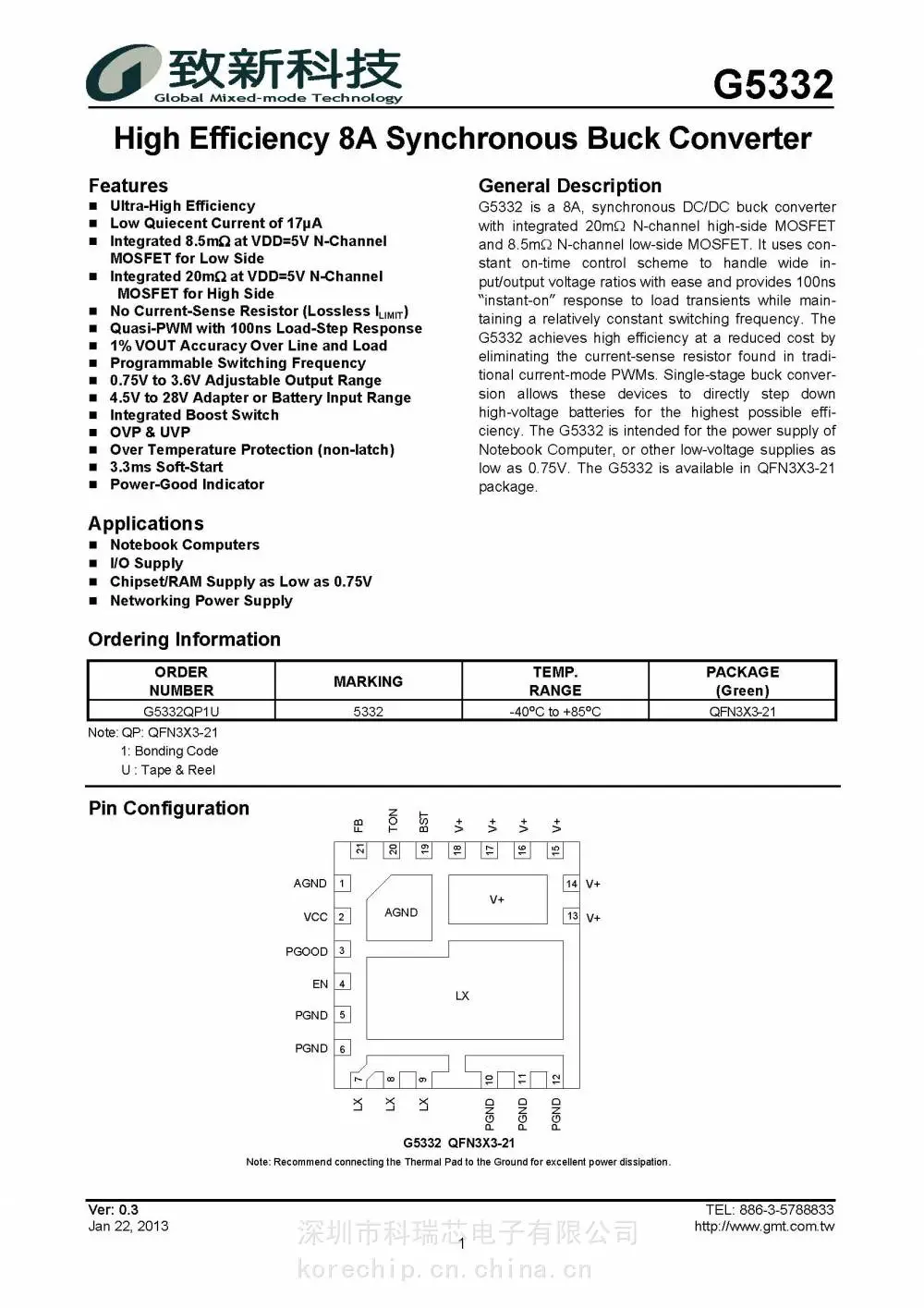

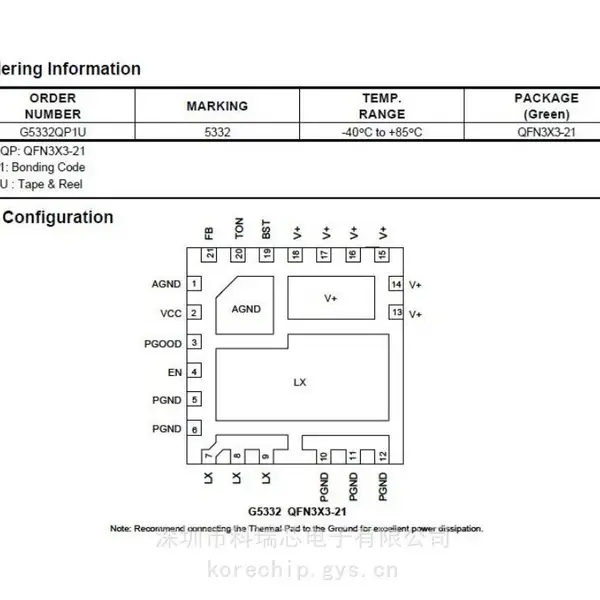

产品规格书（部分），如需PDF文档请QQ索要或电话联系
