SPE05S60T-AN/CN

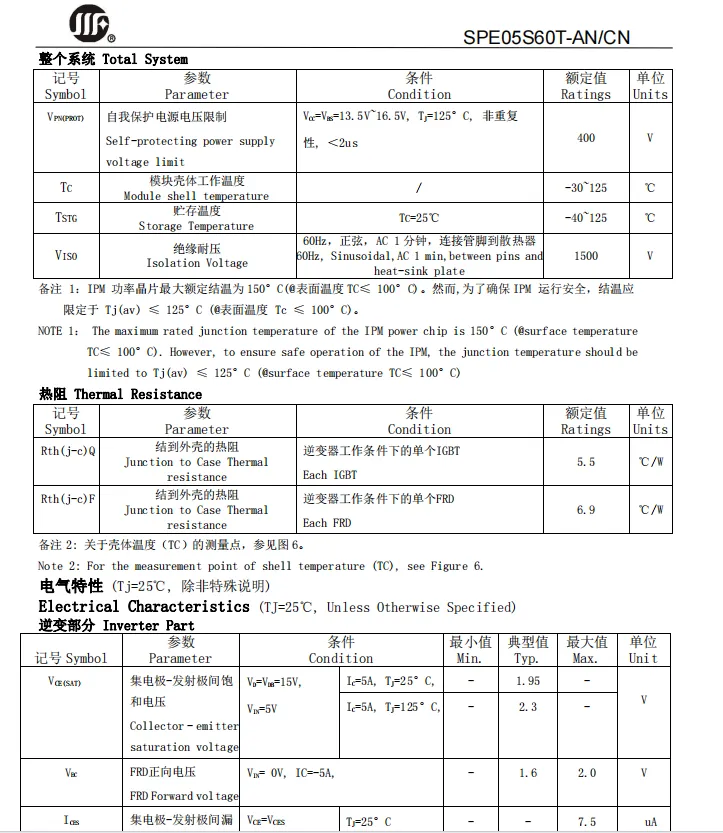

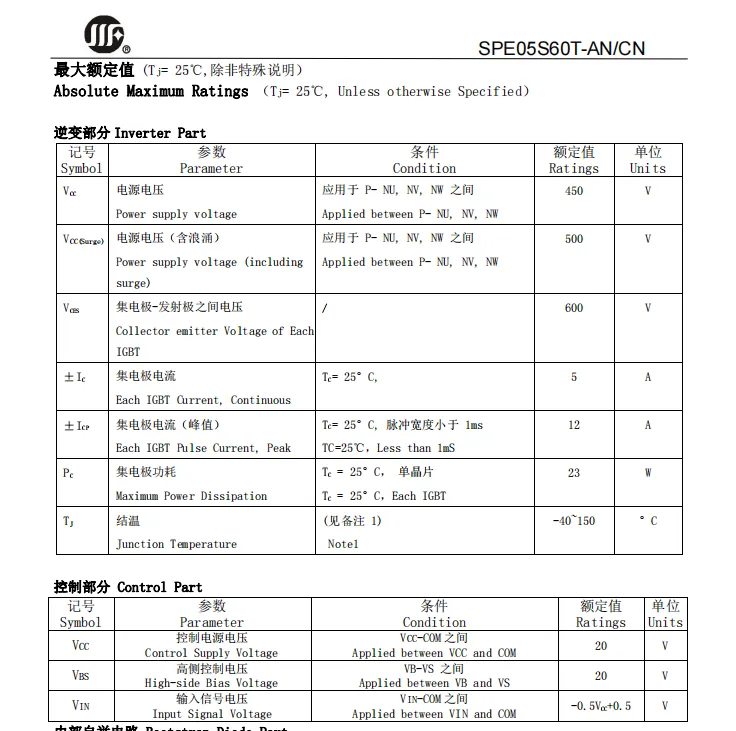

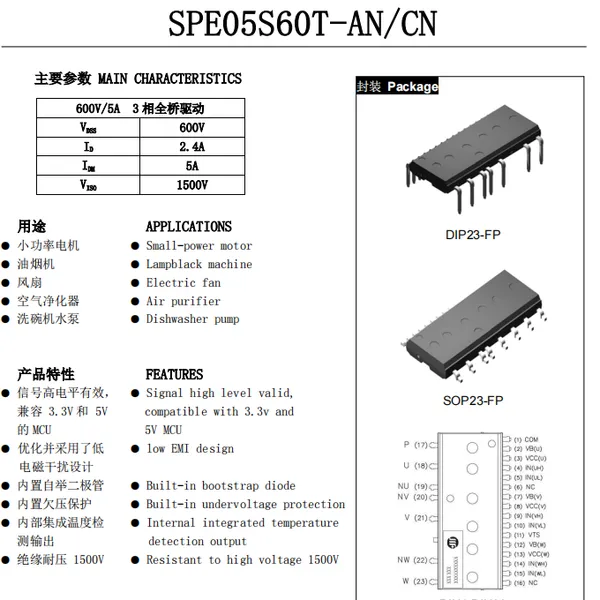

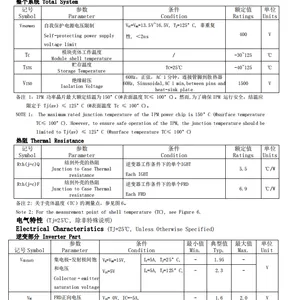

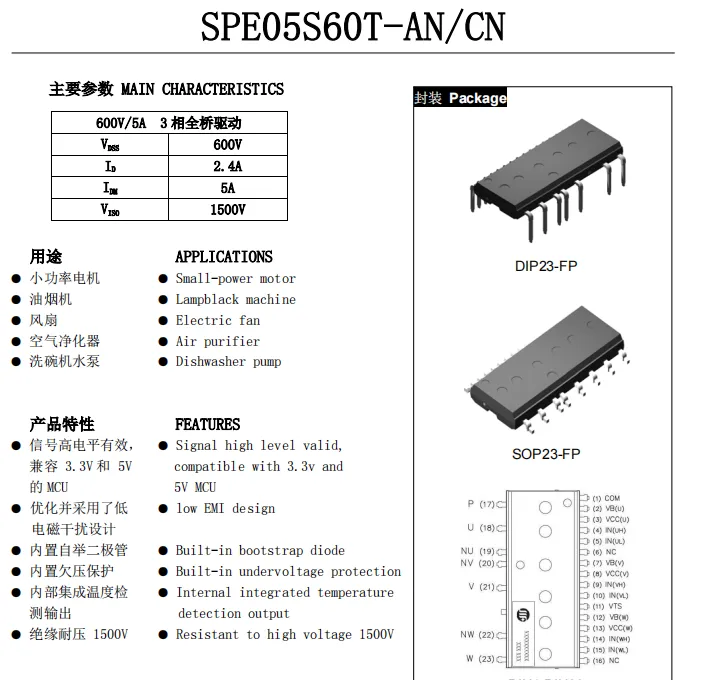

用途 APPLICATIONS  ● 小功率电机 ● Small-power motor ● 油烟机 ● Lampblack machine ● 风扇 ● Electric fan ● 空气净化器 ● Air purifier ● 洗碗机水泵 ● Dishwasher pump 产品特性 FEATURES  ● 信号高电平有效， ● Signal high level valid, 兼容 3.3V 和 5V compatible with 3.3v and 的 MCU 5V MCU ● 优化并采用了低 ● low EMI design 电磁干扰设计  ● 内置自举二极管 ● Built-in bootstrap diode ● 内置欠压保护 ● Built-in undervoltage protection ● 内部集成温度检 ● Internal integrated temperature  测输出 detection output ● 绝缘耐压 1500V ● Resistant to high voltage 1500V

备注 6：输入驱动高有效；IC 内部集成有一个 500K (典型值)下拉电阻；为防止发生误动作， 输入布线应尽可能 短；当用 RC 去耦线路时，须确保输入信号达到开启和关断阙值电压范围。 NOTE 6：Input drive is High-Active type. There is a 500kΩ(typ.) pull-down resistor integrated in the  IC input circuit.To prevent malfunction, the wiring of each input should be as short as possible.  When using RC coupling circuit, make sure the input signal level meet the turn-on and turn-off  threshold voltage. 备注 7：由于 R3 位于 MOSFET 源极与 COM 之间，R3 的压降会影响到下侧 MOSFET 的开关特性以及自举电路的特性 因此 R3 的稳态压降应小于 1V。 NOTE 7：The voltage drop across R3 affects the low side switching performance and the bootstrap  characteristics since it is placed between COM and the source terminal of the low side MOSFET.  For this reason, the voltage drop across R3 should be less than 1V in the steady-state. 备注 8：由于模块内置了专用 HVIC，其控制端子可与 CPU 端子直接相连，而不需要任何光耦或变压器等隔离电路。 NOTE 8：Thanks for HVIC inside modules, direct coupling to MCU without any opto-coupler or transformer  ***lation is possible.
