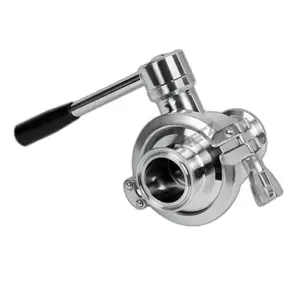

品牌：RETZ瑞茨/我们一直致力于流体控制和测控领域的持续创新，始于2005……进口中部无滞留卡箍球阀为全包式球座设计，解决了球阀液体滞留阀腔内的问题，该球阀经过多年制造和应用经验并综合了当前***的技术和材料应用，可应用于各种食品、制药、饮料、啤酒、白酒、水处理、化妆品、新能源、日化洗涤同时可等径过球清理等The middle non retention clamp ball valve is designed as a full envelope ball seat, which solves the problem of liquid retention in the valve chamber of the ball valve. After years of manufacturing and application experience, and integrating the latest technology and material applications, the ball valve can be applied to various foods, pharmaceuticals, beverages, beer, Baijiu, water treatment, cosmetics, new energy, daily chemical cleaning, and equal diameter ball cleaning.

小扭矩，使用寿命长、全脱脂、密封弹性补偿、体积小、内部无滞留、外观少量有死角、非常灵活功能组合、无需专业工具即可维护、经济、简单、可靠Small torque, long service life, full degreasing, sealing elastic compensation, small size, nointernal retention, a few dead spots in appearance, very flexible function combination,maintenance without professional tools, economical, simple and reliable.

进口中部卡箍无滞留球阀特点

阀体组合卡箍连接

无需专业工具即拆卸阀门

操作扭矩小

可配置各种不同执行器，如电动、气动，手动可互换

进口中部卡箍无滞留球阀选型参数

规格：1/2"-3",DN10-DN80

材质：304/1.4301,316L/1.4404

表面：Ra≤0.5μm

温度：-30至150℃

压力：10bar

可配置各种不同执行器，如电动、气动，手动可互换

连接: 卡箍，焊接，螺纹，DIN，SMS，***，IDF，BPE，RJT

RETZ的卫生级球阀可以满足卫生洁净、制药、化妆品、酿酒、食品饮料、乳制品、化工等领域工控系统的截断、调节。

产品涵盖了：进口气动卫生级球阀、电动卫生级球阀、智能调节气动卫生级球阀、智能调节电动卫生级球阀、卫生级蝶式球阀、卫生级V型球阀、卫生级无滞留球阀、卫生级三通无滞留球阀、卫生级四通无滞留球阀、卫生级法兰球阀、卫生级卡箍接球阀、卫生级内螺纹球阀、卫生级外螺纹球阀、卫生级对焊球阀、卫生级无菌法兰球阀
