| 产品特性：压力传感器 | 品牌：Amphenol Nova sensor | 型号：NPC-1210-100G-1-S |
| 压力类型：差压D 表压G 绝压A | 工作压力：1Kpa~700Kpa | 输出类型：模拟电压输出 |
| 输出电压：100mV | 精度：0.1% | 系列：NPC-1210 |
| 电源电压：10V | 端口类型：金属压力管 | 工作温度：125℃ |
| 封装/外壳：DIP-8 | 特性：陶瓷基底 | 最小包装数：20 |
| 应用领域：测量仪器 | 电流：1.5mA | 补偿温度：0~+60℃ |
| 介质：干燥空气 | 储存温度：-55~+150℃ | 质量：2.5 g |
| 线性度：0.1%FSO | 压力迟滞：0.1%FSO | 数量：5000 |
| 封装：插件 | 批号：25+ |

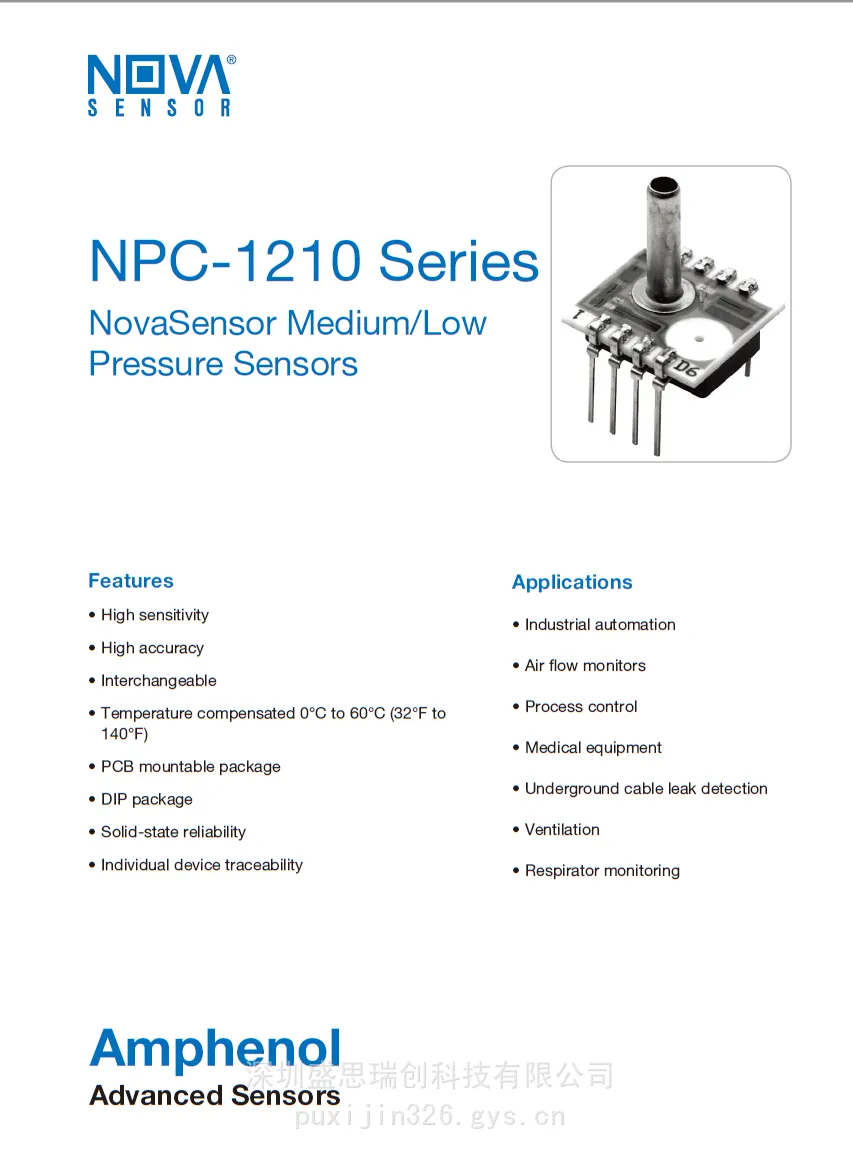

NovaSensor NPC-1210 Series | Low/Medium Pressure Sensors
The NovaSensor NPC-1210 Series of Low/Medium Pressure Sensors provides a cost effective solution for applications that require calibrated performance over a wide temperature range. Packaged in a dual-in-line configuration, the NPC-1210 Series is intended for printed circuit board mounting. Optional pressure port and lead configurations provide superior flexibility in low profile applications where pressure connection orientation is critical.

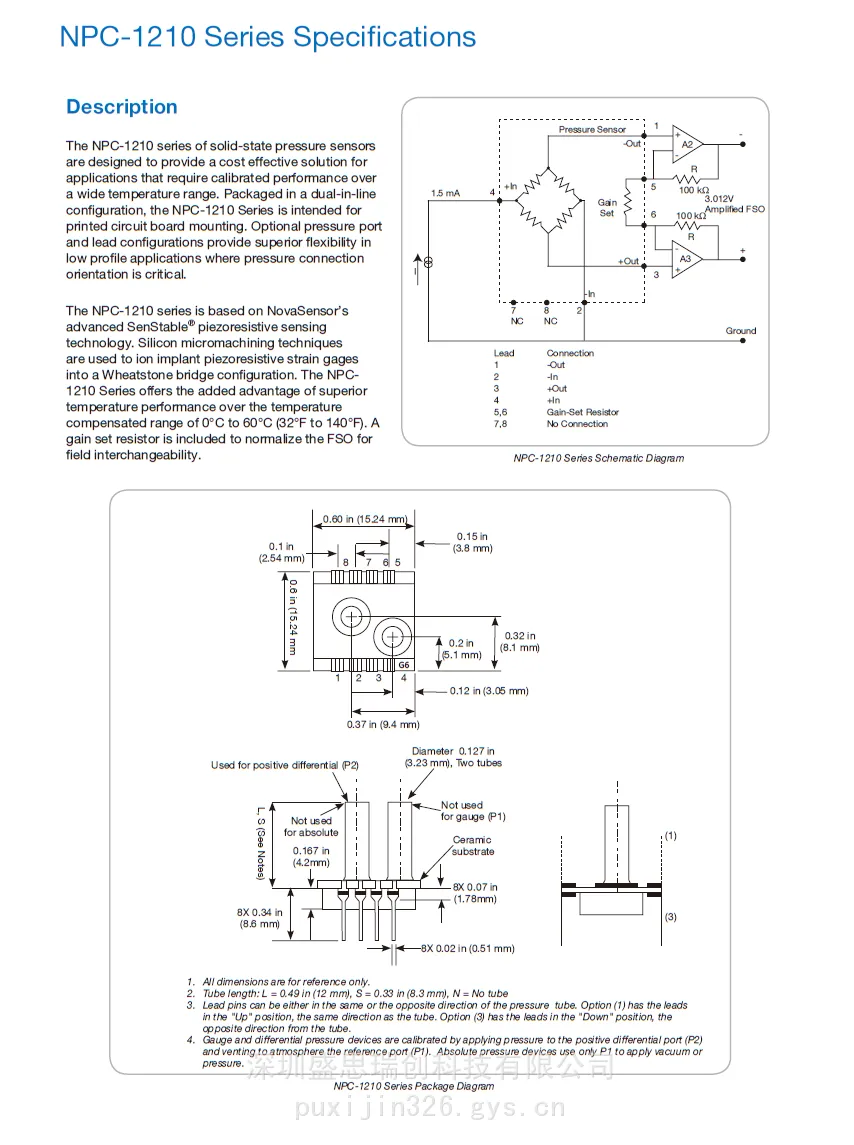

The NPC-1210 series is based on NovaSensor’s advanced SenStable? piezoresistive sensing technology. Silicon micromachining techniques are used to ion implant piezoresistive strain gages into a Wheatstone bridge configuration. The NPC-1210 Series offers the added advantage of superior temperature performance over the temperature compensated range of 0°C to 60°C (32°F to 140°F). A gain set resistor is included to normalize the FSO for field interchangeability.
Applications
Industrial automation
Air flow monitors
Process control
Medical equipment
Underground cable leak detection
Ventilation
Respirator monitoring
NPC-1210低压系列固态压力传感器的设计达到与其他压力量程一样的成本效率。NPC-1210的双列直插式封装使它可以直接安装在PCB（印刷电路板）上。可选择的压力接口和引脚结构提供了灵活性，尤其是在压力连接方向要求严格的应用中。
NPC-1210系列是基于NovaSensor?的SenTable?硅压阻传感技术。硅微机械加工技术被用来将硅阻应变通过离子注入形成所需惠斯通电桥结构。NPC-1210具有温度特性，温度补偿范围为0~60℃。它将一个增益设置电阻集成在传感器内，使传感器可以互换。
NPC-1210系列的压力量程有0~5英寸水柱、0~10英寸水柱、0~1psi、0~5psi、0~15psi、0~30psi、0~50psi、0~100psi、。
应用
工业自动化
气流监测仪
过程控制
医疗仪器
地下电缆泄漏检测
通风
呼吸器监测
特征
灵敏度
通用
温度补偿：0°C 至 60°C（32°F 至 140°F）
可安装在 CB 上的封装
双列直插式封装 （DIP）
固态可靠性
单个设备可追溯性

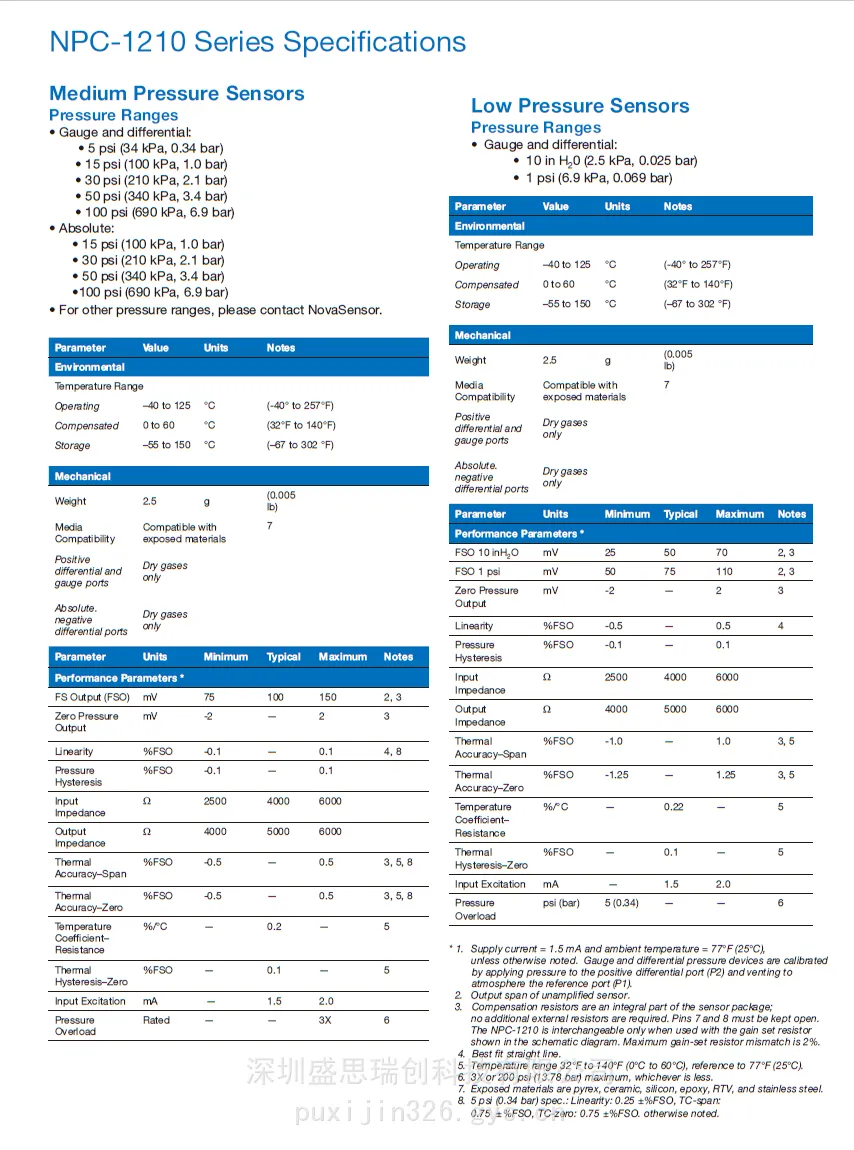

规格
| Pressure Ranges | Medium Pressure Sensors | Low Pressure Sensors |
| Gauge and Differential: | 5 psi (34 kPa, 0.34 bar) 15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar) | 10 in H20 (2.5 kPa, 0.025 bar) 1 psi (6.9 kPa, 0.069 bar) |
| Absolute: | 15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar) | |
| *For other pressure ranges, please contact NovaSensor. |
| Parameter | Medium Pressure Sensors | Low Pressure Sensors |
| Operating Temperature Range | -40°C to 125°C (-40°F to 257°F) | -40°C to 125°C (-40°F to 257°F) |
| Compensated Temperature Range | 0°C to 60°C (32°F to 140°F) | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -55°C to 150°C (-67°F to 302°F) | -55°C to 150°C (-67°F to 302°F) |
| Weight | 2.5 g (0.005lb) | 2.5 g (0.005lb) |
| Media Compatibility | Compatible with exposed materials7 | Compatible with exposed materials7 |
| Positive Differential and Gauge Ports | Dry gases only | Dry gases only |
| Absolute and Negative Differential Ports | Dry gases only | Dry gases only |
| Performance Parameter1 | Units | Minimum | Typical | Maximum | Notes |
| FS Output (FSO) | mV | 75 | 100 | 150 | 2, 3 |
| Zero Pressure Output | mV | -2 | — | 2 | 3 |
| Linearity | %FSO | -0.1 | — | 0.1 | 4, 8 |
| Pressure Hysteresis | %FSO | -0.1 | — | 0.1 | |
| Input Impedance | Ω | 2500 | 4000 | 6000 | |
| Output Impedance | Ω | 4000 | 5000 | 6000 | |
| Thermal Accuracy–Span | %FSO | -0.5 | — | 0.5 | 3, 5, 8 |
| Thermal Accuracy–Zero | %FSO | -0.5 | — | 0.5 | 3, 5, 8 |
| Temperature Coefficient– Resistance | %/°C | — | 0.2 | — | 5 |
| Thermal Hysteresis–Zero | %FSO | — | 0.1 | — | 5 |
| Input Excitation | mA | — | 1.5 | 2 | |
| Pressure Overload | Rated | — | — | 3X | 6, 9 |
|

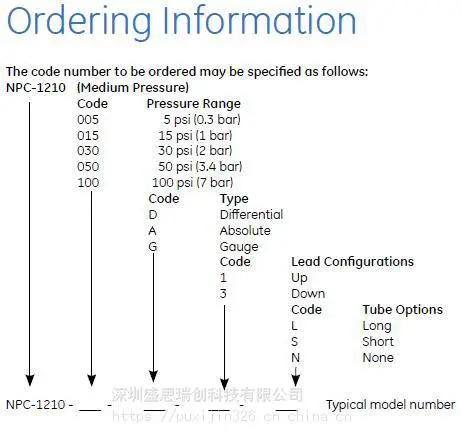

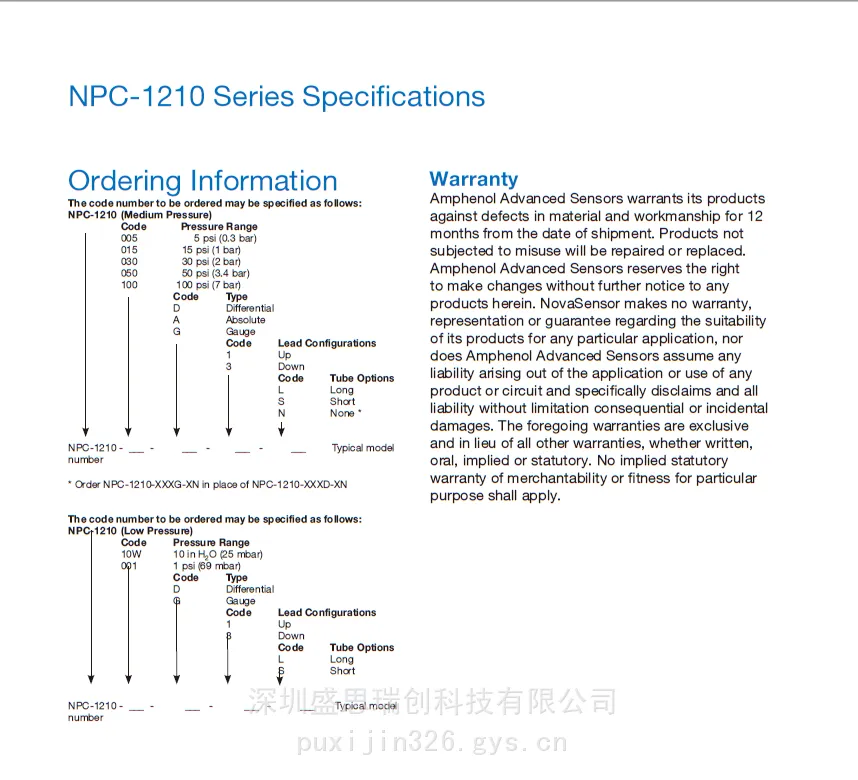

| Medium Pressure Sensors | ||||||||
| NPC-1210 | Code | Pressure Range | Code | Type | Code | Lead Configurations | Code | Tube Options |
| 005 015 30 050 100 | 5 psi (34 kPa, 0.34 bar) 15 psi (100 kPa, 1.0 bar) 30 psi (210 kPa, 2.1 bar) 50 psi (340 kPa, 3.4 bar) 100 psi (690 kPa, 6.9 bar) | D A G | Differential Absolute Gauge | 1 3 | Up Down | L S N | Long Short None* | |
| Example: NPC-1210 | -005 | -D | -1 | -L | ||||
| *Order NPC-1210-XXXG-XN in place of NPC-1210-XXXD-XN. |

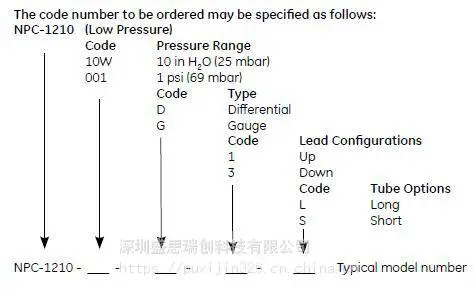

| Low Pressure Sensors | ||||||||
| NPC-1210 | Code | Pressure Range | Code | Type | Code | Lead Configurations | Code | Tube Options |
| 10W 001 | 10 in H2O (25 mbar) 1 psi (69 mbar) | D G | Differential Gauge | 1 3 | Up Down | L S | Long Short | |
| Example: NPC-1210 | -005 | -D |
