The High Performance Kapton Based Insulator.

Technology

Silicone

Appearance

Beige

Reinforcement Carrier

Kapton

Total Thickness

, ASTM D374

0.15 ± 0.025

mm

Application

Thermal management,

Thermally conductive adhesive

Operating Temperature

Range

-60 to 180?C

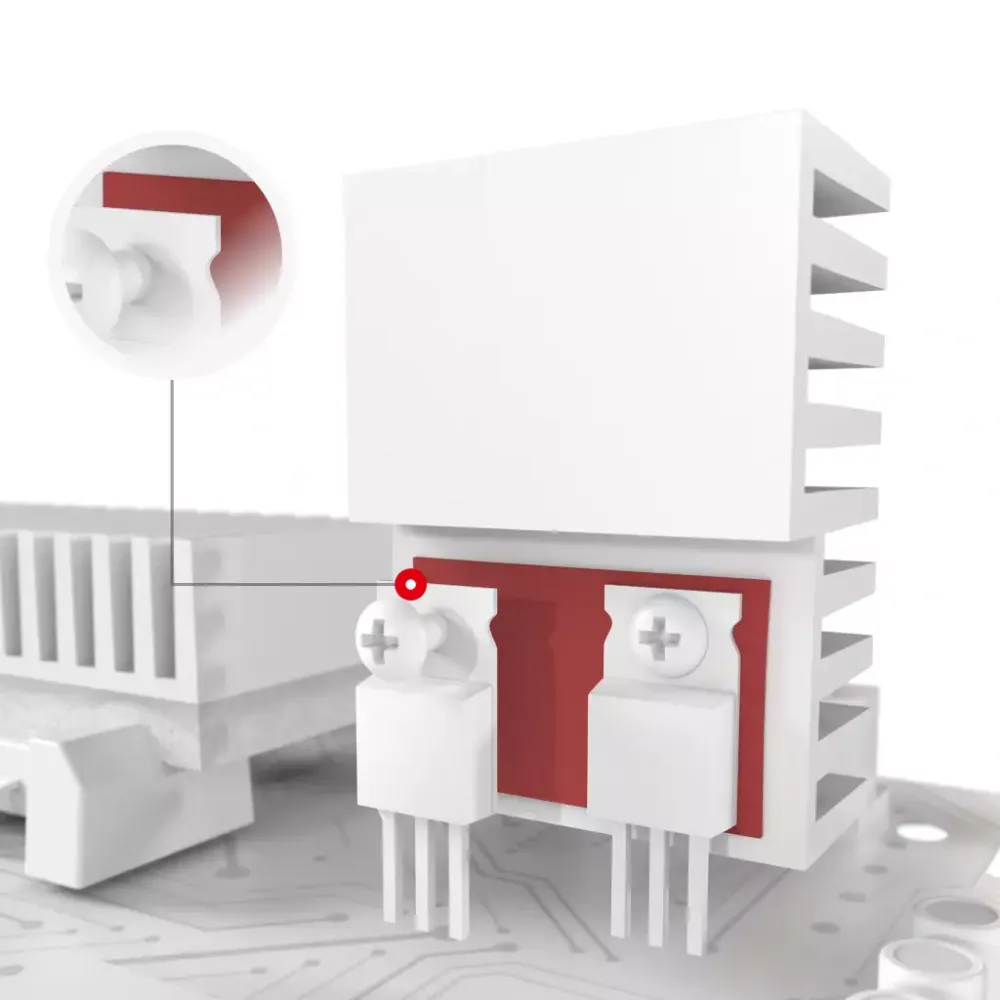

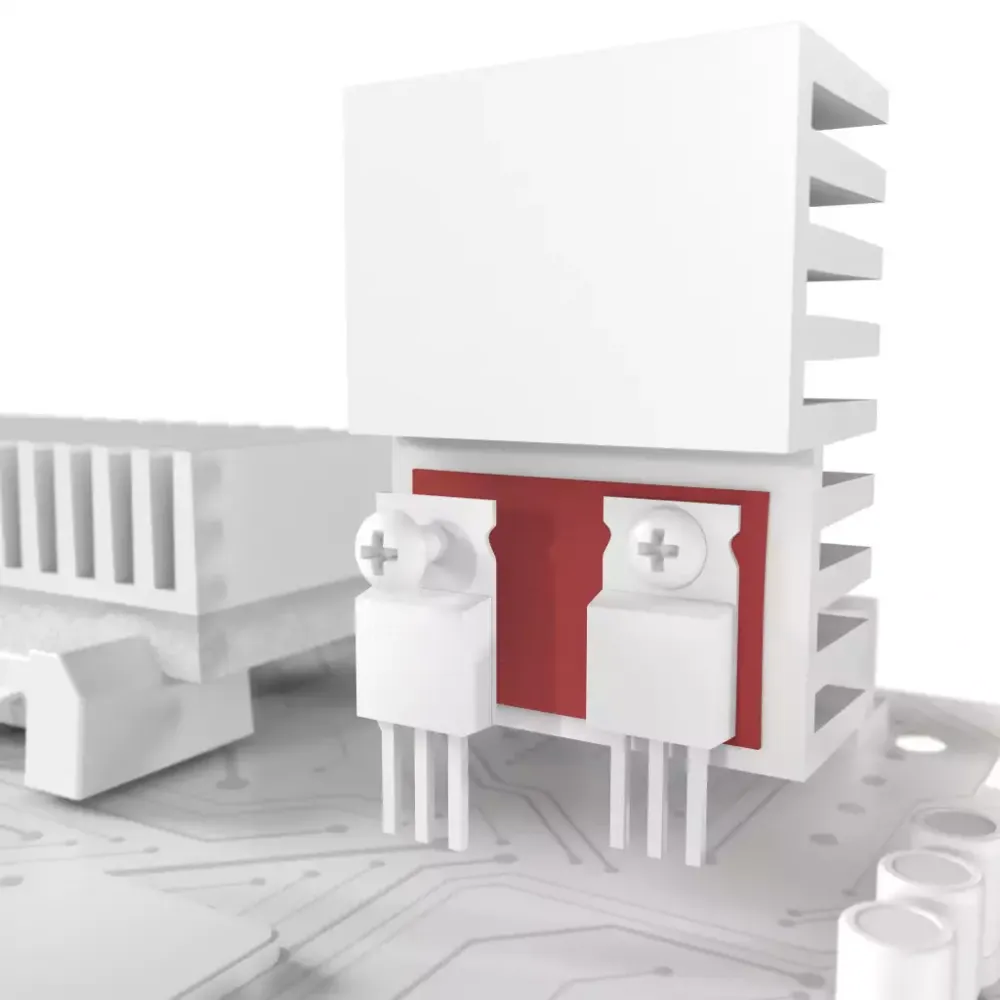

BERGQUIST SIL PAD TSP K1300 is the high performance

insulator developed in conjunction with DuPont. BERGQUIST

SIL PAD TSP K1300 combines special Kapton MT Polyimide

film with boron nitride filled silicone rubber. The result is a

product with good cut-through properties and excellent thermal

performance.

BERGQUIST SIL PAD TSP K1300 is designed to replace

ceramic insulators such as Beryllium Oxide, boron Nitride and

Alumina. These insulators are expensive and they break easily.

BERGQUIST SIL PAD TSP K1300 eliminates breakage and

costs much less than ceramics.

TYPICAL PROPERTIES

Physical Properties

Hardness, Shore A, ASTM D2240

90

Breaking Strength, ASTM D1458, KN/m

5

Elongation , 45? to warp and fill, ASTM D412,%

40

Tensile Strength, ASTM D412, MPa

35

Electrical Properties

Dielectric Breakdown Voltage , ASTM D149 (VAC,

min)

6,000

Dielectric Constant, ASTM D150 @ 1,000 Hz

3.7

Volume Resistivity, ASTM D257, ohm-meter

1×1012

Thermal Properties

Thermal Conductivity , ASTM D5470, W/(m-K)

1.3

Thermal Resistance Bergquist Flat Plate Test

Method, ?C-in2 /W

0.2

Thermal Vacuum Weight Loss (TML), as

manufactured, NASA SP-R-0022A, %

0.36

Volatile Condensable Material (VCM), as

manufactured, NASA SP-R-0022A, %

0.09

GENERAL INFORMATION

For safe handling information on this product, consult the Safety

Data Sheet, (SDS).

Not for product specifications

The technical data contained herein are intended as reference

only. Please contact your local quality department for

assistance and recommendations on specifications for this

product.

CONFIGURATIONS AVAILABLE

BERGQUIST SIL PAD TSP K1300 are supplied in:

? Special Thicknesses

Available in a variety of thicknesses to meet customer

requirements.

? Tolerances

.015 inches are held on width, length, hole diameter and

hole location.

Contact the factory if tighter tolerances are required.

? Sheet form

6" x 6", 6" x 12", 8" x 8", 10" x 10", or 12" x 12"

Sheets are available from stock, with or without adhesive.

? Roll form

Sil-Pad materials are available in roll form, with or without

adhesive. Contact the factory.

? Special Shapes

We produce thousands of specials. Tooling charges vary

depending on tolerances and complexity of the part.

Conversions

(°C x 1.8) + 32 = °F

kV/mm x 25.4 = V/mil

mm / 25.4 = inches

N x 0.225 = lb/F

N/mm x 5.71 = lb/in

psi x 145 = N/mm?

MPa = N/mm?

N·m x 8.851 = lb·in

N·m x 0.738 = lb·ft

N·mm x 0.142 = oz·in

mPa·s = cP
