PMK LILCO 系列精密宽频射频电流-脉冲电流传感器CT ，***的Droop 特性，高达60Mhz 的带宽可以适应在大型科学电磁脉冲，EMC，脉冲电流，浪涌电流等高瞬态电流测量。

LILCO? 系列 PMK 电流互感器的带宽范围为 mHz 至 >60 MHz，输入电流范围为 mA 至 20 kA，可实现各种测量应用所需的精密高带宽交流电流测量。电流互感器能够***测量大脉冲或连续输入电流，而输入和输出之间的电气屏蔽可减少电磁场对输出的影响。

输入和输出之间的电流隔离使LILCO?系列可用于具有较大电位差的测量设置，或者输入和输出之间出现不需要的电流（如接地回路）的测量设置。

LILCO?系列电流互感器的BNC输出使得只需一根标准的50Ω同轴电缆即可轻松连接到各种测量设备，如示波器、数字化仪、网络分析仪、频谱分析仪、功率分析仪、数字万用表等。

通过改变测量仪器的输入端接，可以提高低频性能和增强的 I·t 能力，以及衰减输出信号。LILCO?系列衰减器ATT10BNCS用于进一步改善这些规格，同时保持电流互感器的高频性能。

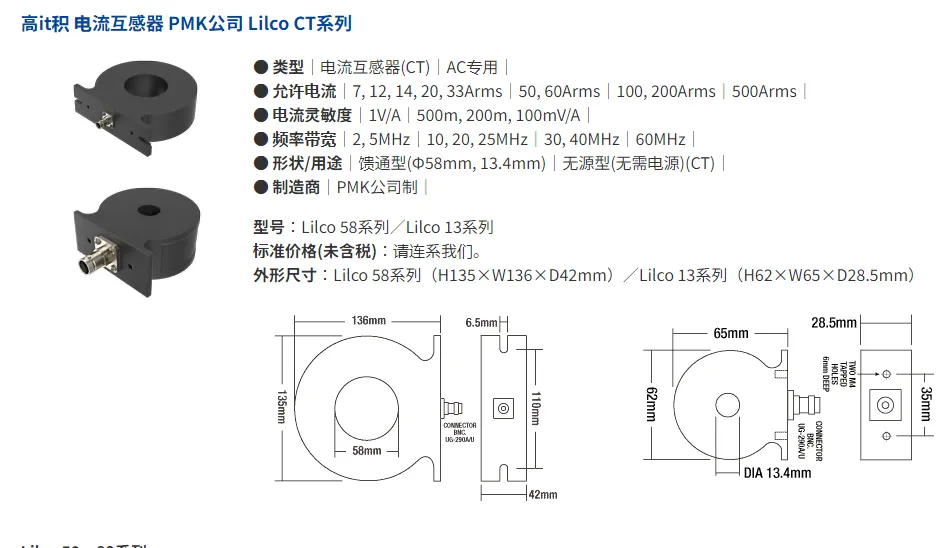

LILCO? 系列内整直径（以厘米为单位）包含在每个型号中：

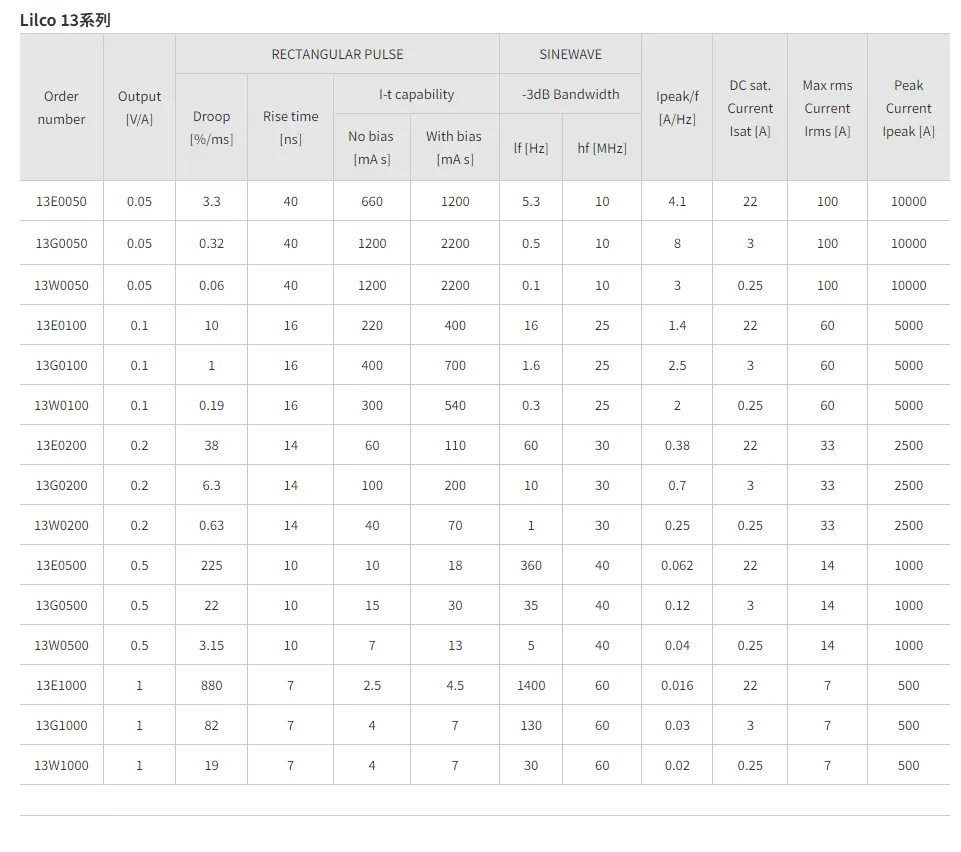

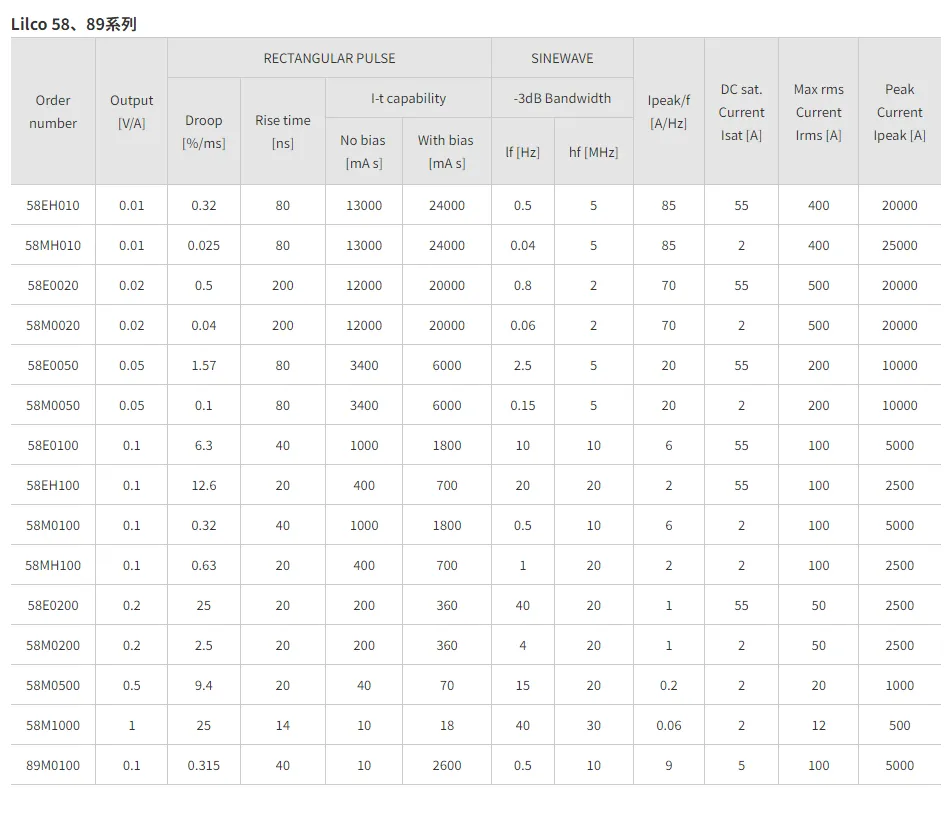

例如，13E1000 = 13mm （0.5&＃39;&＃39;）， 26G0100 = 26mm （1.0&＃39;&＃39;）， 52GH010 = 52mm （2.0&＃39;&＃39;）， 58M1000 = 58mm （2.2&＃39;&＃39;）， 89M0100 = 89mm （3.5&＃39;&＃39;）

所有LILCO?电流互感器均附有工厂校准证书。

LILCO系列的专用说明手册包含许多有价值的信息，涉及使用电流互感器的一般限制以及如何在单个文档中进行***测量。^?

With bandwidths ranging from mHz to >60 MHz and input currents ranging from mA up to 25 kA, the LILCO? series of PMK’s current transformers enables precision high bandwidth AC current measurements, which are required for a broad range of measurement applications. The current transformers are capable of accurately measuring large pulse or continuous input currents while electrical shielding between the input and output reduces the influence of electromagnetic fields on the output.

Galvanic ***lation between input and output allows the LILCO? Series to be used in measurement setups with large potential differences or where unwanted currents between input and output appear like in ground loops.

The BNC output of the LILCO? series current transformers makes it easy to connect to a variety of measurement devices, such as, oscilloscopes, digitizers, network analyzers, spectrum analyzer, power analyzers, DMM etc. with just a standard 50Ω coaxial cable.

Improved low frequency performance and increased I·t capability, as well as an attenuated output signal can be realized by changing the input termination of the measuring instrument. The LILCO? series attenuator ATT10BNCS is used to improve these specifications even more while maintaining the high frequency performance of the current transformer.

The LILCO? Series inner whole diameter in cm is included in each model number:

e.g. 13E1000 = 13mm (0.5‘‘), 26G0100 = 26mm (1.0‘‘), 52GH010 = 52mm (2.0‘‘), 58M1000 = 58mm (2.2‘‘), 89M0100 = 89mm (3.5‘‘)

All LILCO? current transformers are delivered with a factory calibration certificate.

The dedicated instruction manual for the LILCO^? series contains a lot of valuable information about the general limitations of using current transformers and how to make accurate measurements in a single document only.
