结构特点Features of structure

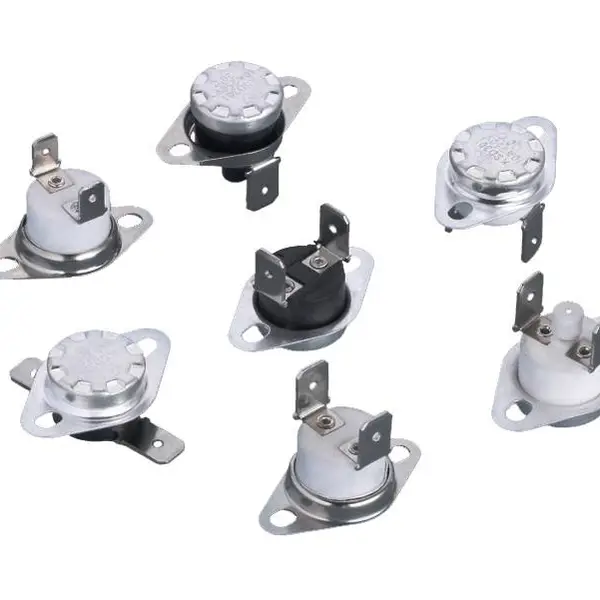

KSD301系列突跳式温控器是小型双金属片温控器，属温度继电器类器件。利用碟型双金属片在温度作用下产生瞬间跳动的原理，通过机构的作用，使触点迅速动作，达到断开或接通电路的目的。其工作温度固定，无须调整；动作可靠干脆，电弧小；使用寿命长；无线电干扰小。

KSD-D301 snap action thermostat is small-size bimetal thermostat series with a metal cap,which belongs to thermalrelays’family.The main principle is that one fumction of bimetal discs snap action under the change of sening temperature.The snap action of disc can push the action of the contacts through the inside structure,then caused on of off of the circuitfinally.The main characteristics are the fixation of working temperature,the reliable snap action,less flashover,longer working life and less radio interference.

技术参数Technical parameters:

额定电流Rated current(Ir): 10A,1,20A;

额定电压Rated voltage(Ur):AC250V;

动作温度公关Action temperature Tolerance:±5℃

常态电气强度Electric intensity:AC2000V 50/60Hz历时1min,

无击穿、无闪络for 1min;no breakdon and no flashover

常态接触电阻Contact resistance:﹤50mΩ；绝缘电阻Lnsulation resistance:﹥100MΩ

响应速度Response speed:≤1℃/min；寿命次数Operation cycles: ﹥30000次

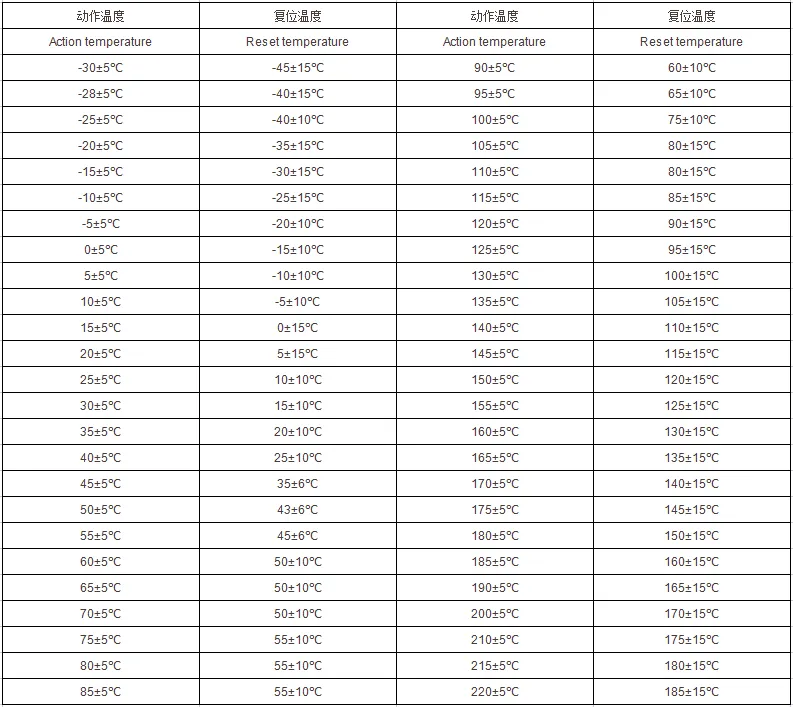

动作及复位温度

特殊规格可根据客户要求定做The specification can also be manufactured as request.

如超低和超高温度及特殊复位产品可根据客户要求协商订做

温度检测方法：

将试样两引线分别接在测试设备的夹具上，通上10mA左右的电流（不超过100mA），用一发光二极管指示电流的通断，然后将试样放入专用测温设备内，（测试设备内温度应均匀，加热升温速度可控制）温度计探头应贴近试样，控制检测设备温度以0.5～1℃/min的速率升温,当发光二极管熄灭时,记下温度计读数即为试样的动作温度。
