型号：BAT54SWQ-7-F

封装：SOT23

包装：3000Tape & Reel

类型：肖特基 (Schottky)(.***以下)

品牌：DIODES/达尔

温馨提示：公司产品丰富，如想求购具体型号可直接致电或QQ联系！

Description

200mA surface-mount Schottky Barrier Diode in SOT23 (Standard) package, offers low turn-on voltage and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection, totally lead-free finish and RoHS compliant, ”Green” device.

Features and Benefits

● Low Turn-on Voltage

● Fast Switching

● PN Junction Guard Ring for Transient and ESD Protection

● Totally Lead-Free & Fully RoHS Compliant

● Halogen and Antimony Free. “Green” Device

● This part is qualified to JEDEC standards (as references in AEC-Q)

Mechanical Data

● Package: SOT23

● Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0

● Moisture Sensitivity: Level 1 per J-STD-020

● Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead-Free Plating). Solderable per MIL-STD-202, Method 208

● Polarity: See Diagrams Below

● Weight: 0.008 grams (Approximate)

Maximum Ratings

Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage: 30V

Average Rectified Output Current: 200mA

Repetitive Peak Forward Current: 300mA

Forward Surge Current: 600mA

Thermal Characteristics

Power Dissipation: 200mW

Typical Thermal Resistance Junction to Ambient Air: 500°C/W

Typical Thermal Resistance Junction to Case: 180°C/W

Operating and Storage Temperature Range: -65 to +150°C

Electrical Characteristics

Reverse Breakdown Voltage: 30V

Forward Voltage: 240~800mV

Reverse Leakage Current: 2.0μA

Total Capacitance: 10pF

Reverse Recovery Time: 5.0ns

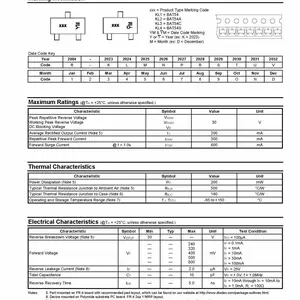

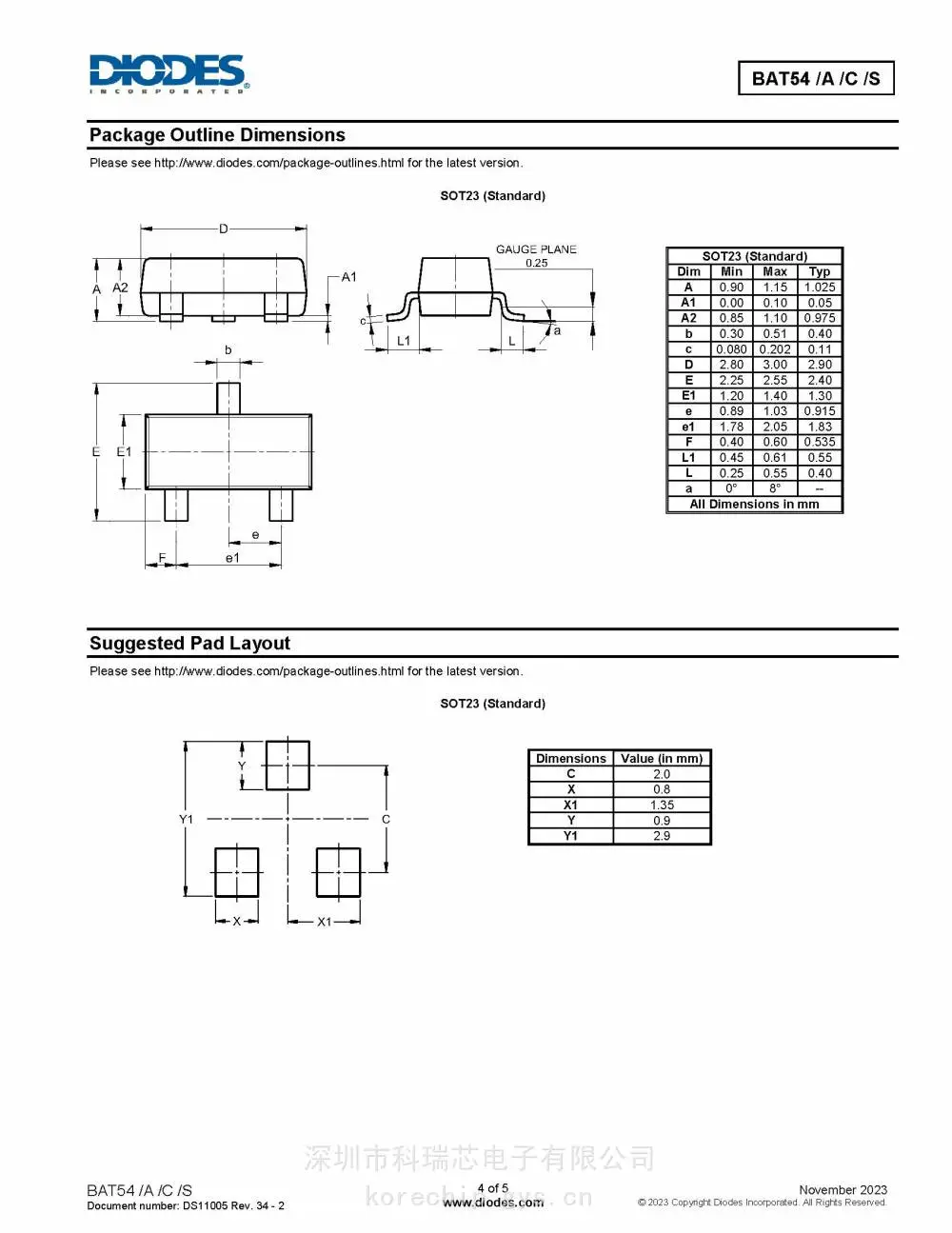

产品规格书（部分），如需PDF文档请QQ索要或电话联系
