What are the core advantages of the product?

Ultra thin invisible, precise fit?

The thickness is only 0.2mm, and the substrate free design eliminates the bulky feeling of traditional foam glue. After bonding, it is almost "invisible", suitable for electronic product screen bonding, car sign installation and other scenarios that require strict flatness.

The surface is smooth and traceless, resistant to wrinkles and tears, and the edges are not easily lifted after pasting.

Industrial grade adhesive strength?

Using acrylic adhesive with an initial adhesion of 15N/cm?, 72 hour adhesive strength increased to 25N/cm? Above, it can firmly bond heterogeneous materials such as metal, plastic, glass, ceramics, etc., and withstand high-frequency vibrations without detachment.

Tested according to ASTM D3330 standard, it maintains stable performance in environments ranging from -40 ℃ to 120 ℃.

Weather resistant and corrosion-resistant?

Waterproof, oil resistant, and chemical solvent resistant, with IP67 protection for damp and oily environments (such as car engine compartments and outdoor equipment sealing);

The UV weather resistant layer effectively resists UV aging and has no obvious yellowing or brittleness after 3 years of outdoor use.

Tear and paste immediately, precise and efficient?

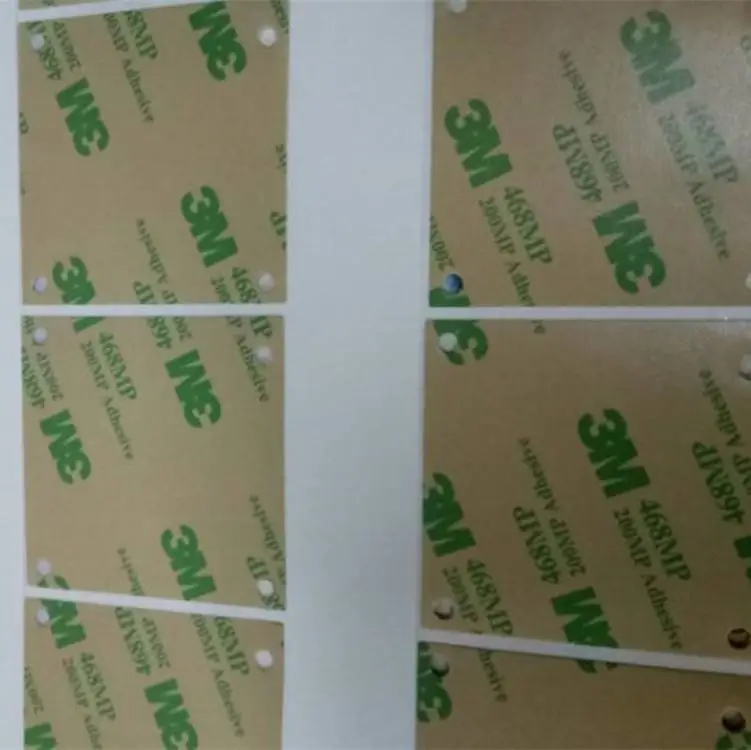

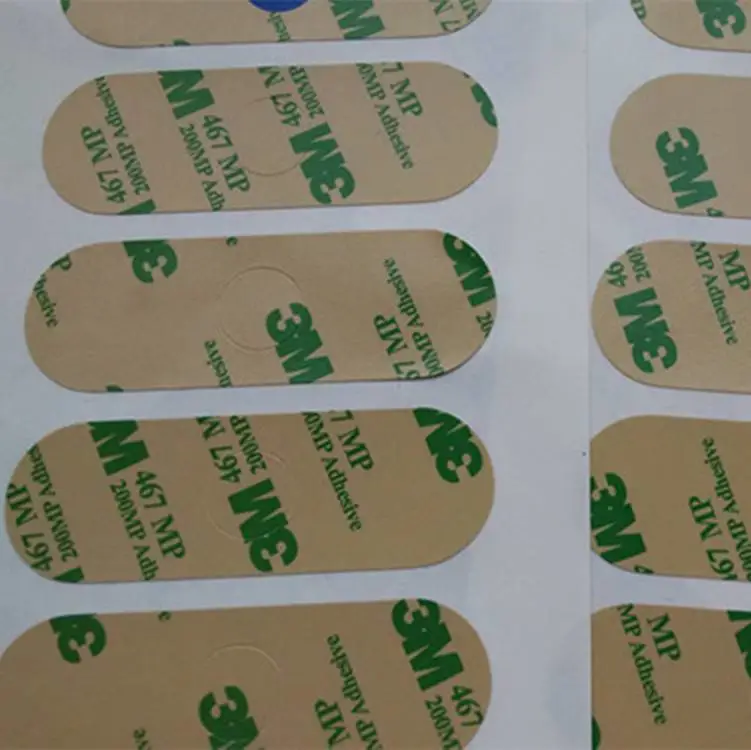

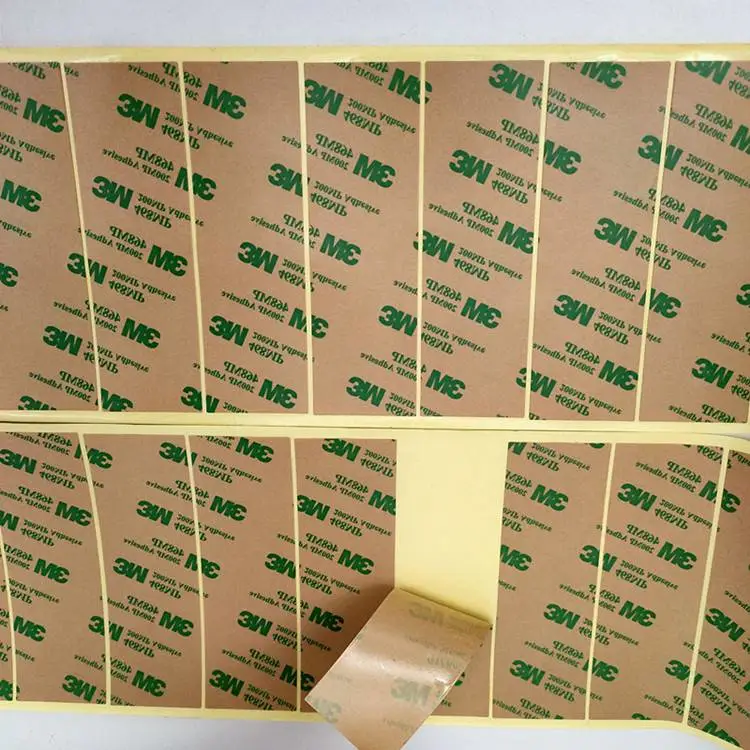

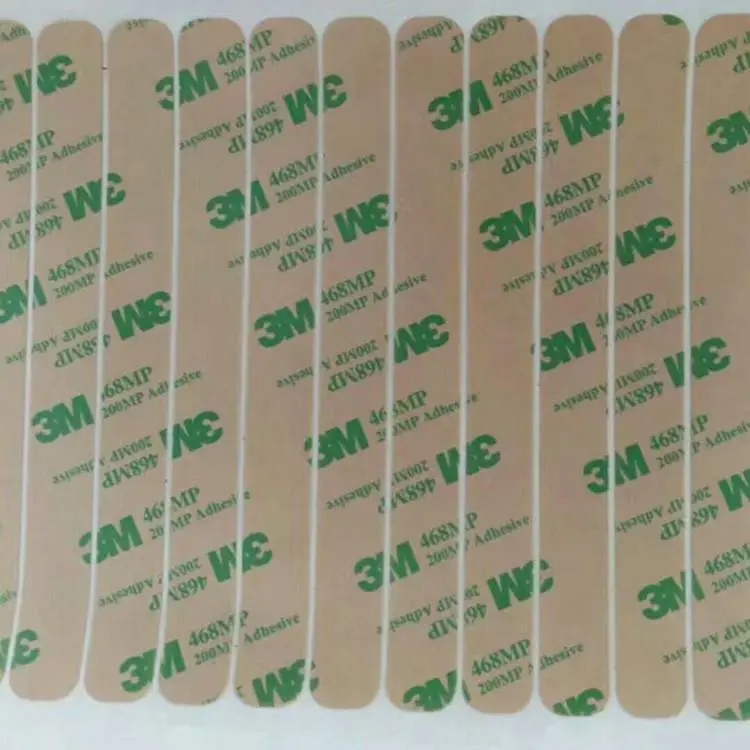

Pre cut release paper design, precise positioning without cutting, supports hand tearing or die-cutting processing;

Strong removability, can be lifted and re pasted without damage in case of construction errors, with no residue or damage to the surface of the substrate.

Applicable scenarios?

Electronic Manufacturing Assembly of mobile/tablet touch screens, PCB board fixation, sensor packaging

The automotive industry Installation of car emblem/decorative strip, fixing of wiring harness, fitting of interior parts (replacing screws/buckles)

Home decoration Mirror/hook on wall, skirting and trimming, ceramic tile repair (no drilling or marking required)

Advertising signage Acrylic plaque pasting, LED light strip fixation, outdoor advertising wind resistant reinforcement

Quick overview of technical parameters?

Attribute parameter value/description

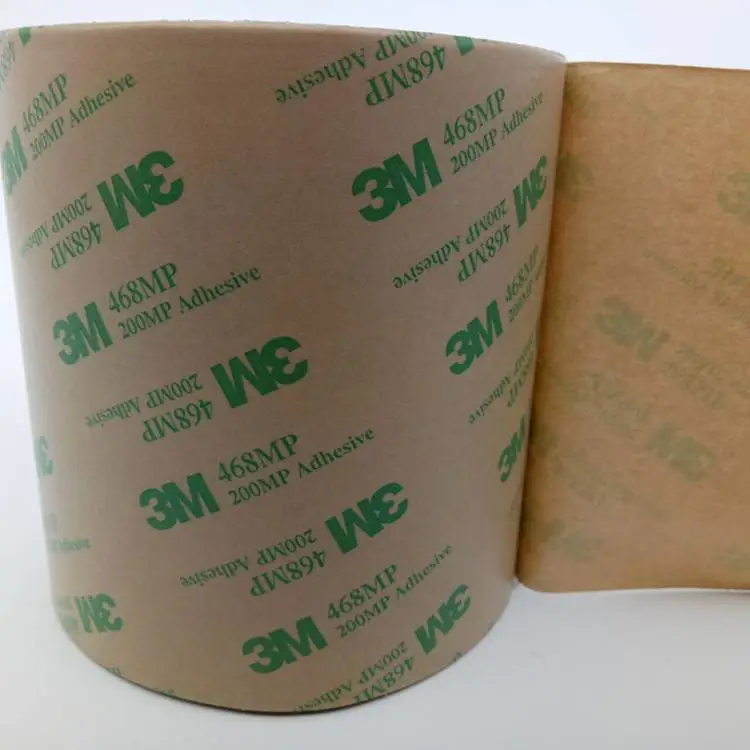

Material: pure adhesive layer (without substrate)+release paper

Thickness 0.2mm (± 0.03mm)

Initial adhesion force ≥ 15N/cm? (Steel ABS testing)

Temperature resistance range -40 ℃~120 ℃ (short-term resistance to 150 ℃)

Color Transparent/Translucent (optional)

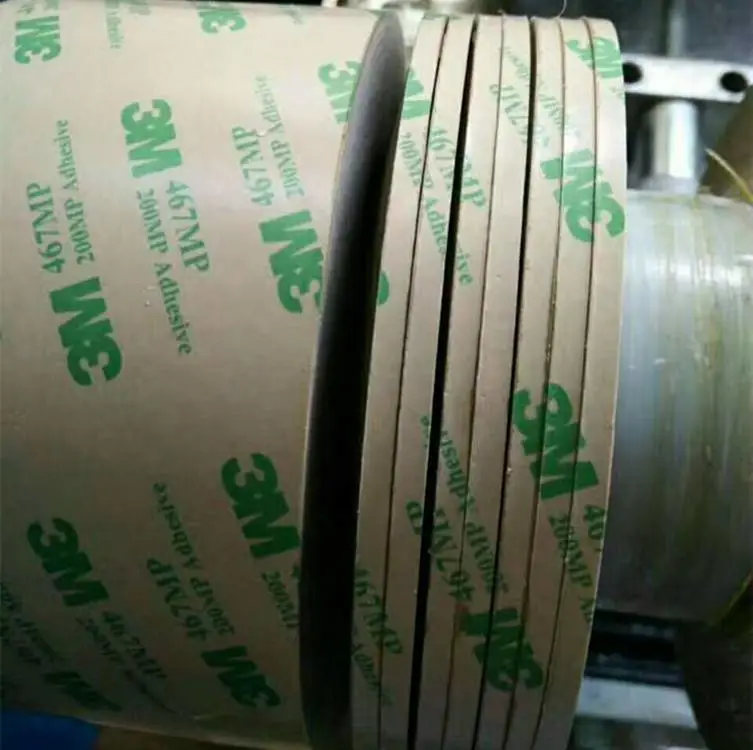

Specifications: Width 5mm~50mm, Length 5m/10m/Customized

User guide?

Surface treatment Clean and dry the surface of the adhered material, and wipe it with alcohol when the oil stains are severe;

Paste positioning Tear off the single-sided release paper, gently press and position it, and slowly tear off the release paper on the other side;

Pressure curing Apply uniform pressure with a roller or scraper (recommended ≥ 5kg/cm?) and reach strength after 24 hours;

? Removal technique?: Heat the tape with a hair dryer to above 60 ℃ and slowly remove it by pulling it flat.
