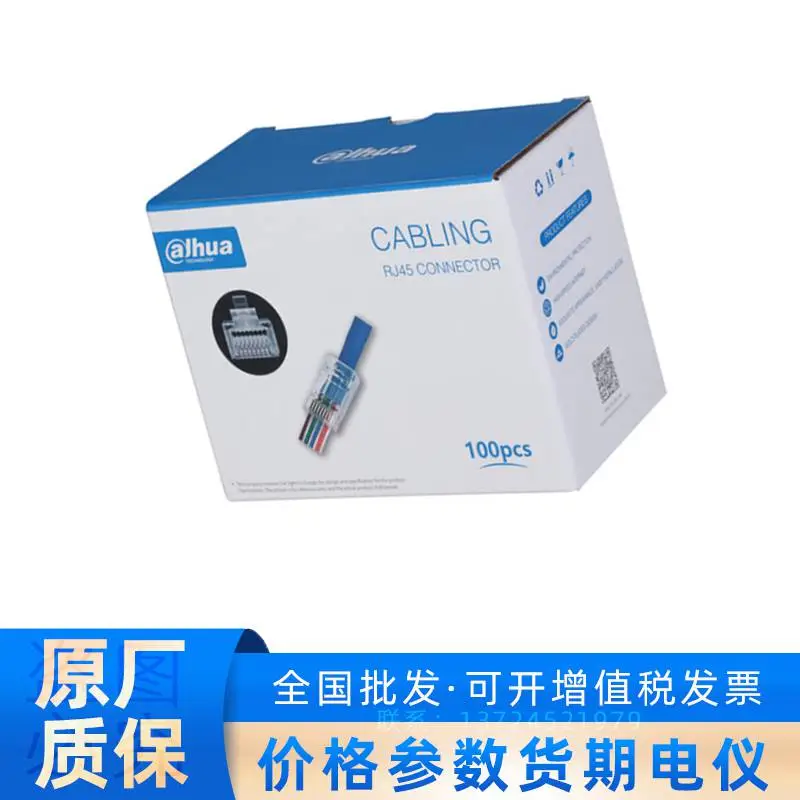

DH-PFM976-530-PT大华DAHUA超五类RJ45水晶头

Technical Specification Material Material PC + brass Gold Plating Thickness 3U" Flammability Rating UL94V-2 Electrical Operating Voltage 150 VAC RMS Operating Current 1.5 AMP Contact Resistance ≤ 20 mΩ Insulation Resistance ≥1000 MΩ@500 VDC Withstands Voltage between Terminals 1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute Mechanical Retention Strength 50 N for 60 s ± 5 s Lifespan 750 times Insertion Force ≤ 30 N Environmental Operating Temperature –25°C to +55°C (–13°F to +131°F) Storage Temperature –10°C to +40°C (+14 °F to +104°F) Storage Humidity ≤ 80% Storage Time 12 months Structural Single Strand Cable Diameter 23 AWG–24 AWG Single Strand Insulated Cable Diameter 0.89 mm–1.00 mm (0.035"–0.039") Outer Sheath Diameter ≤ 5.4 mm (0.21") Packaging Dimensions 120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54") Transport Package Dimensions 500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63") Packaging Method 100 pcs in 1 carton, and 50 cartons in 1 package Net Weight 0.17 kg (0.37 lb) Gross Weight 0.21 kg (0.46 lb) Cabling Accessory Series | DH-PFM976-530-PT Ordering Information Type Model Description Cabling Accessory Series DH-PFM976-530-PT UTP CAT5E 3U" Pass Through RJ45 Connector
